SC3000D Series

The SC3000D is a side coiling security door designed for spaces with limited headroom. Its versatile design makes it perfect for corners or openings that require a radius, providing a secure solution without compromising on space.

NO FIRE

RATING

NO SMOKE

RATING

OVERHEAD

COILING

EGRESS

OPTIONAL

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Get straight to the details. Everything you need all in one click.

Resource Hub

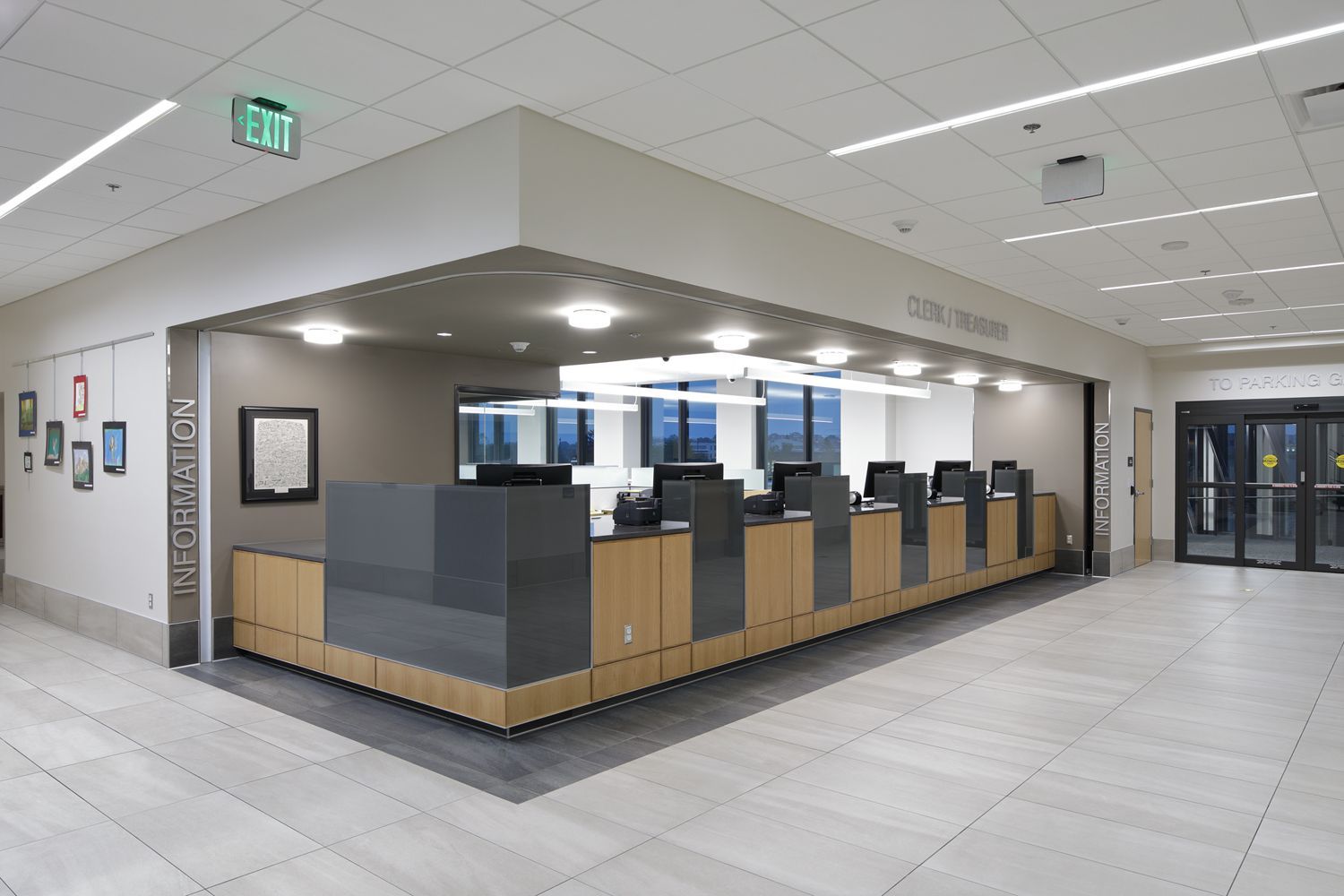

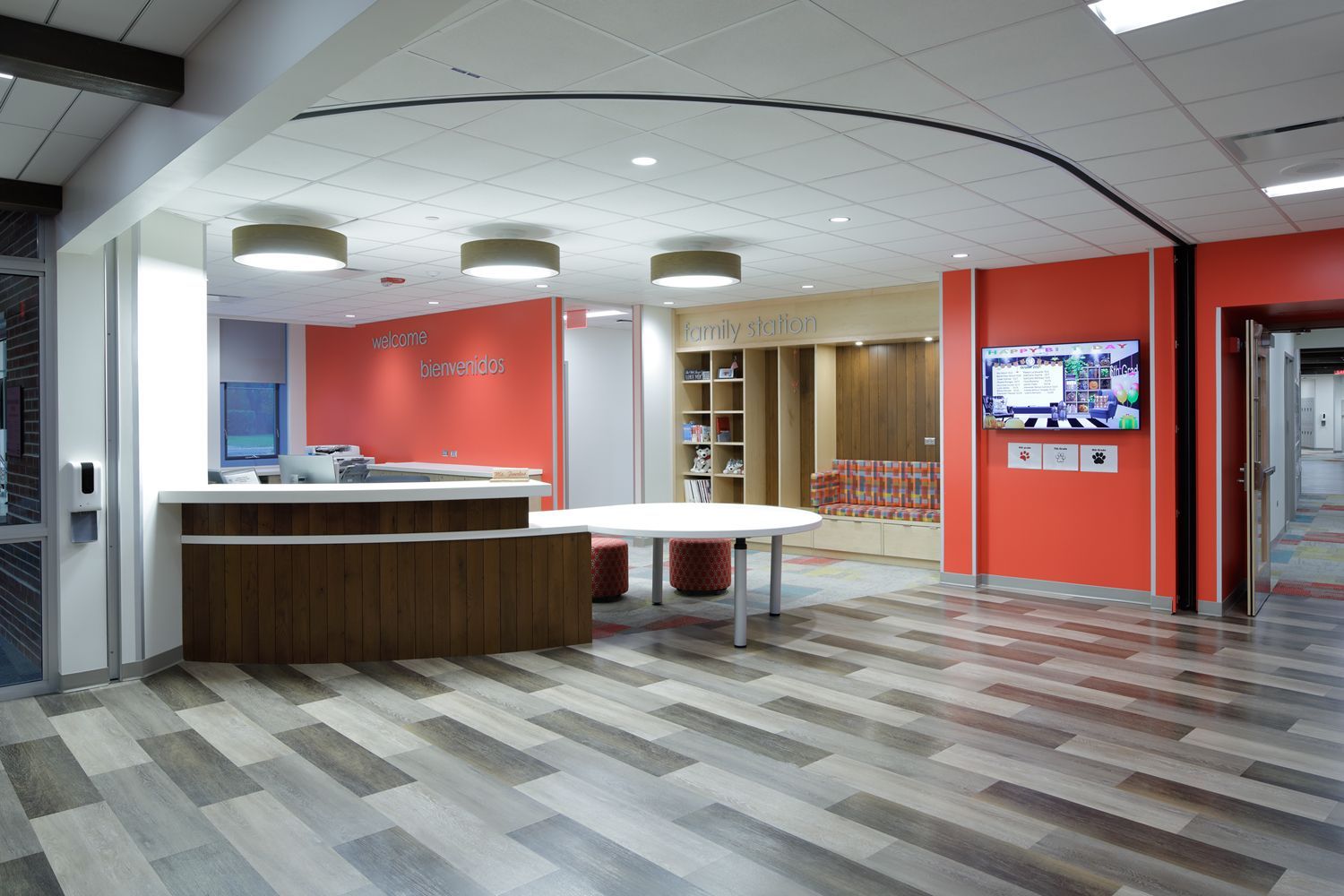

Security in every curve.

Designed for corners. Built for security.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500

The details that matter.

Ratings

Not available (see S4000  or S9000  if fire rating is needed)

Egress

• Single or multiple fixed complying egress doors available when required (see SC3000D-E bellow)


Operation

• Electric motor operation only

• Negotiates a 1'-6" radius without egress door at leading edge. 3'-0 radius with egress door.

Available Variants

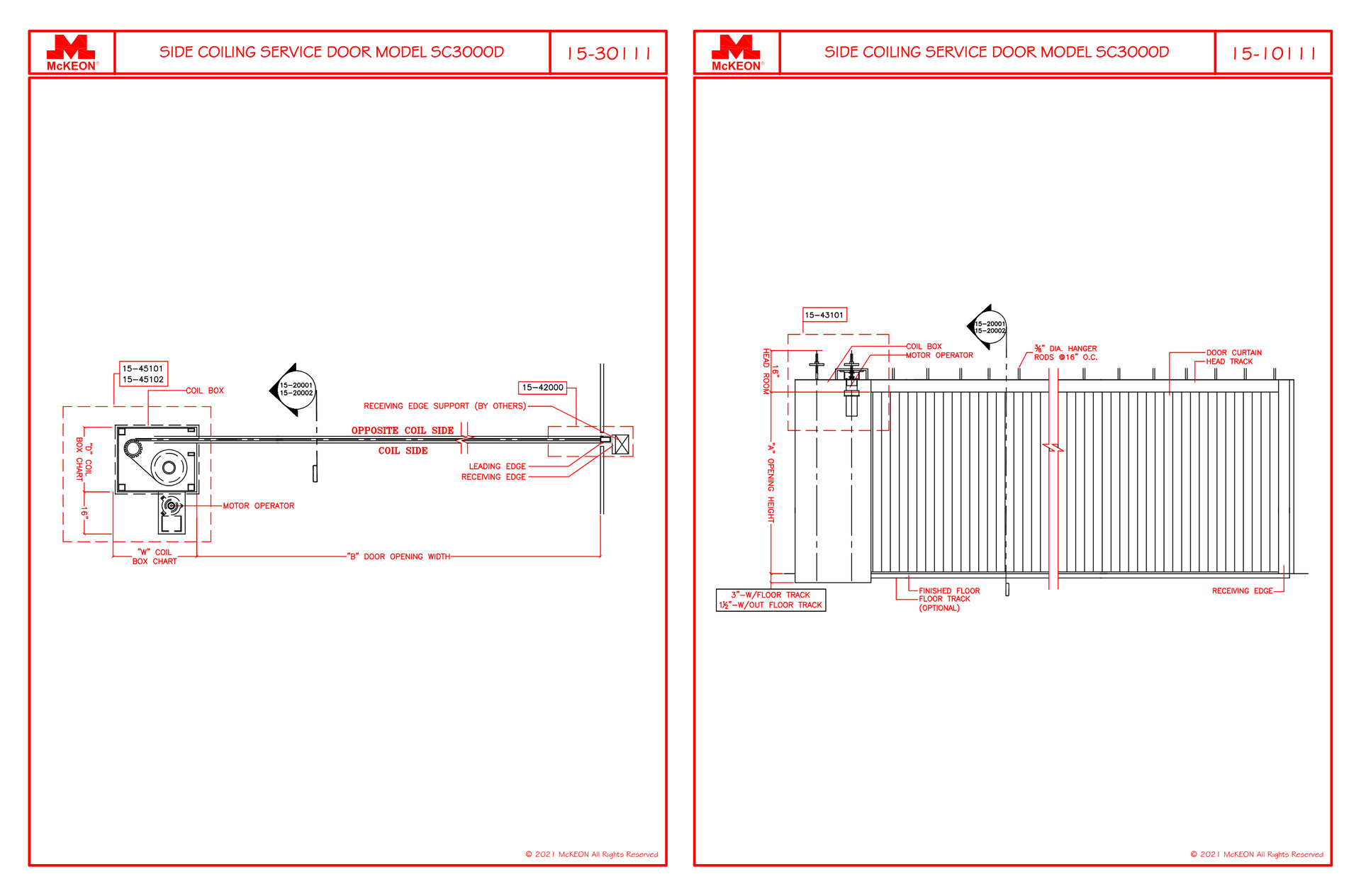

• SC3000D – side coiling service door
• SC3000D-IS – insulated slat

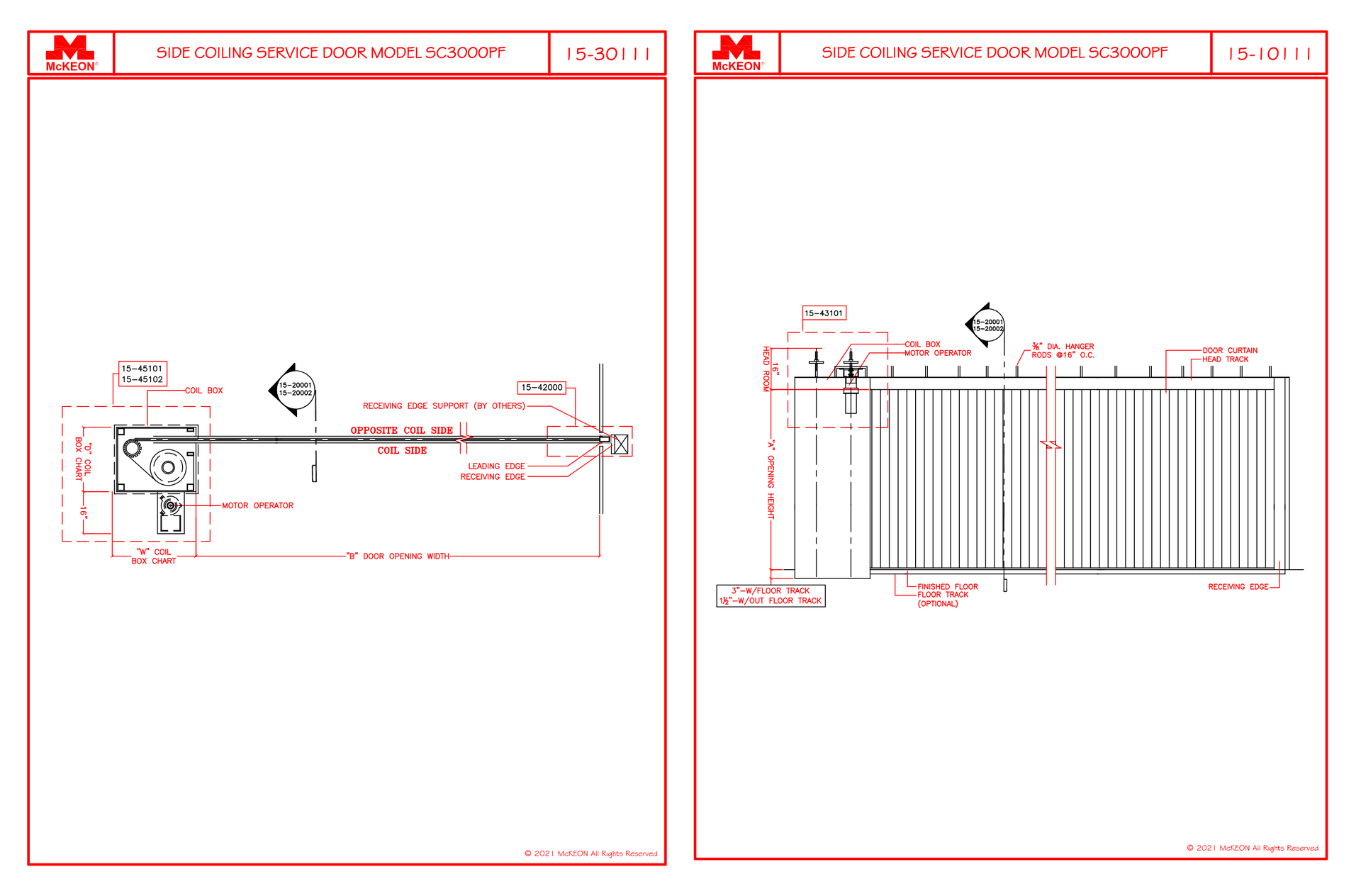

• SC3000PF – perforated slat

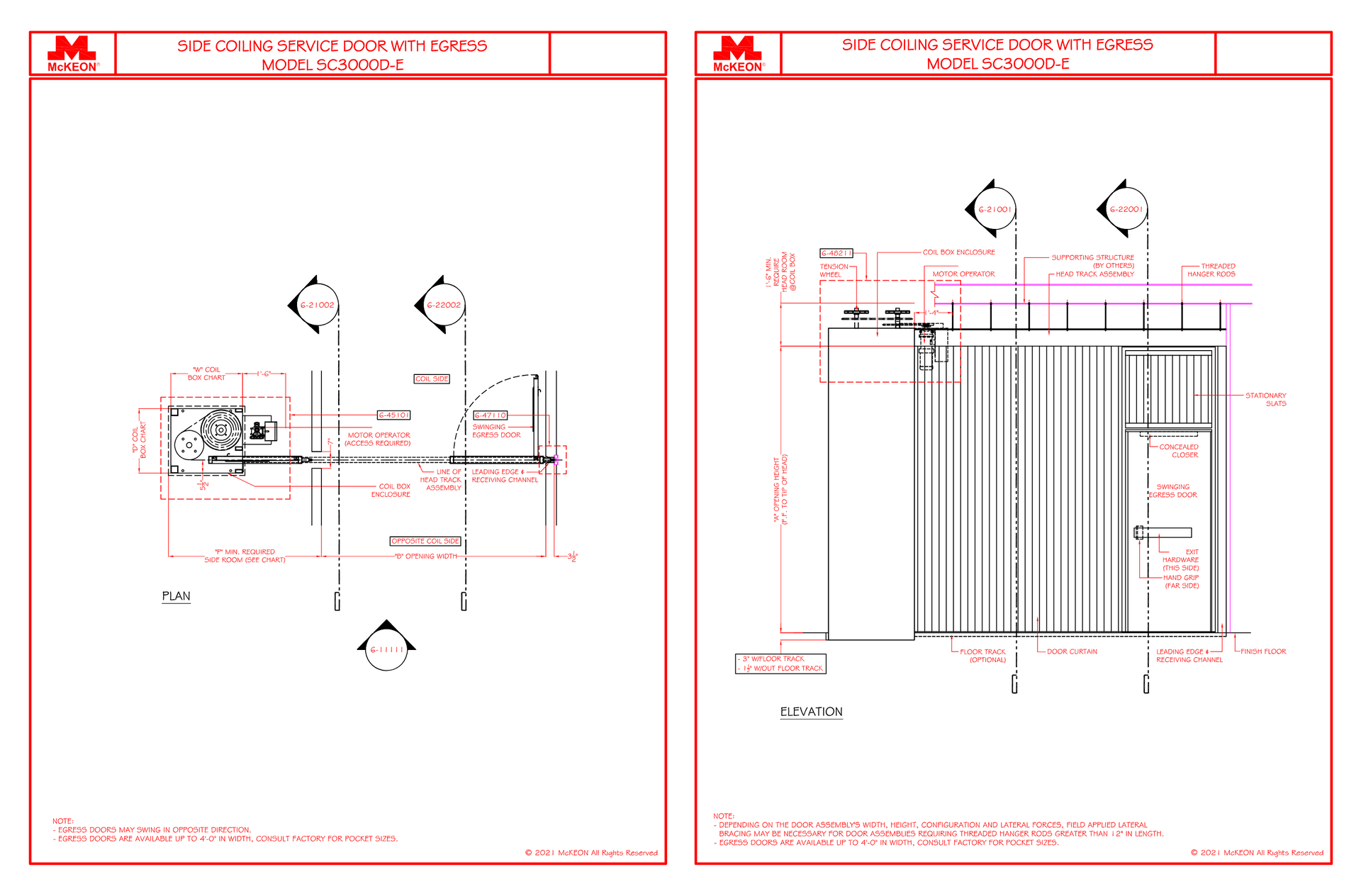

• SC3000D-E – side coiling service door with egress


Available Sizes

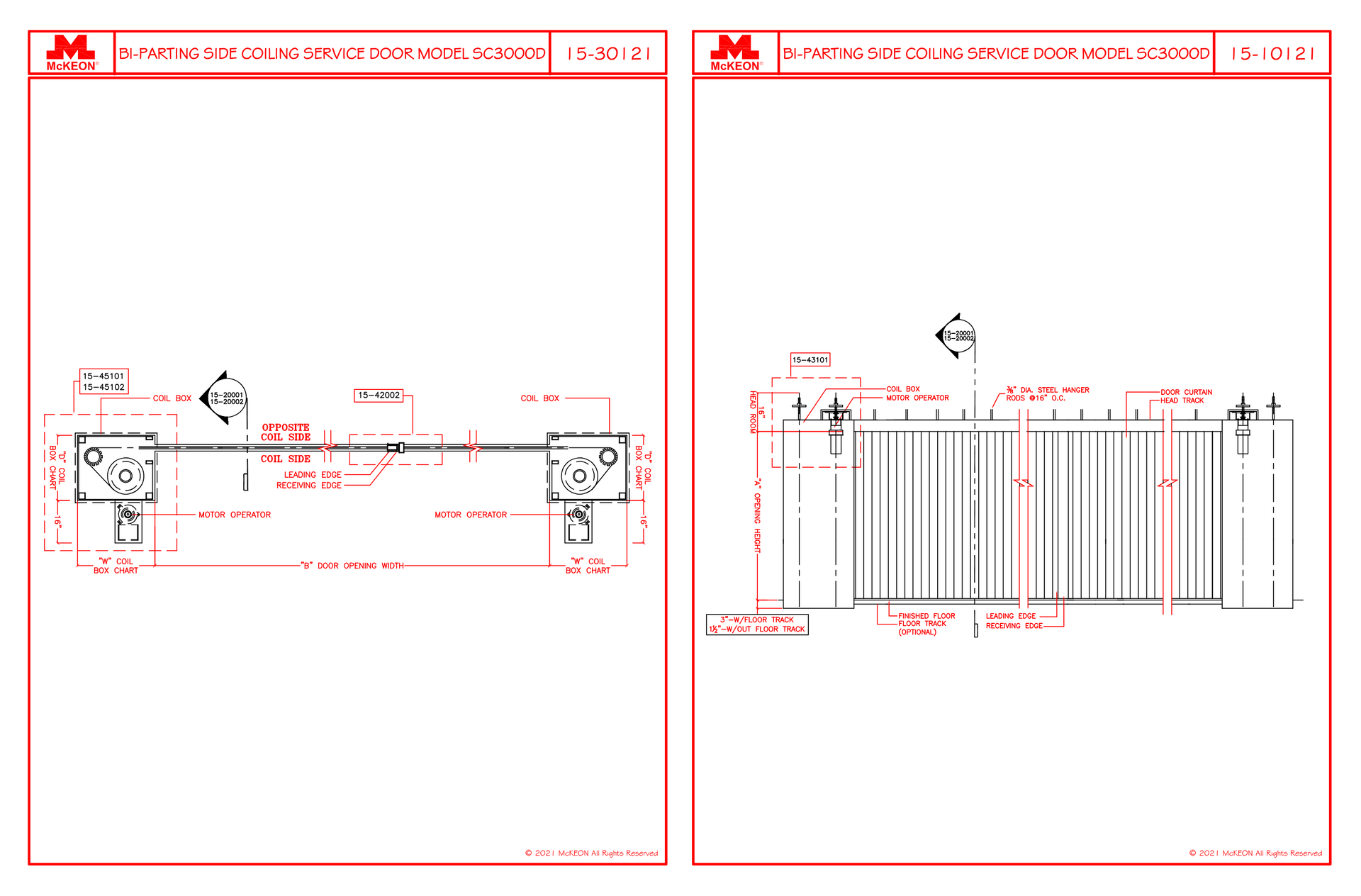

• Widths up to 80'-0 (160' bi-parting)

• Heights to 24'-0"

• For larger sizes and custom configurations consult the factory


Finishes

• McKeon Sterling Grey
• RAL Powder Coat
• Stainless Steel (No. 4 Polish)
• Aluminum (clear anodized)


Download our specs.

Specification Key

-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 color selection from standard colors (download chart here)

-SS = Stainless Steel, No. 4 polish finish

-A = Clear Anodized Aluminum (one color option)

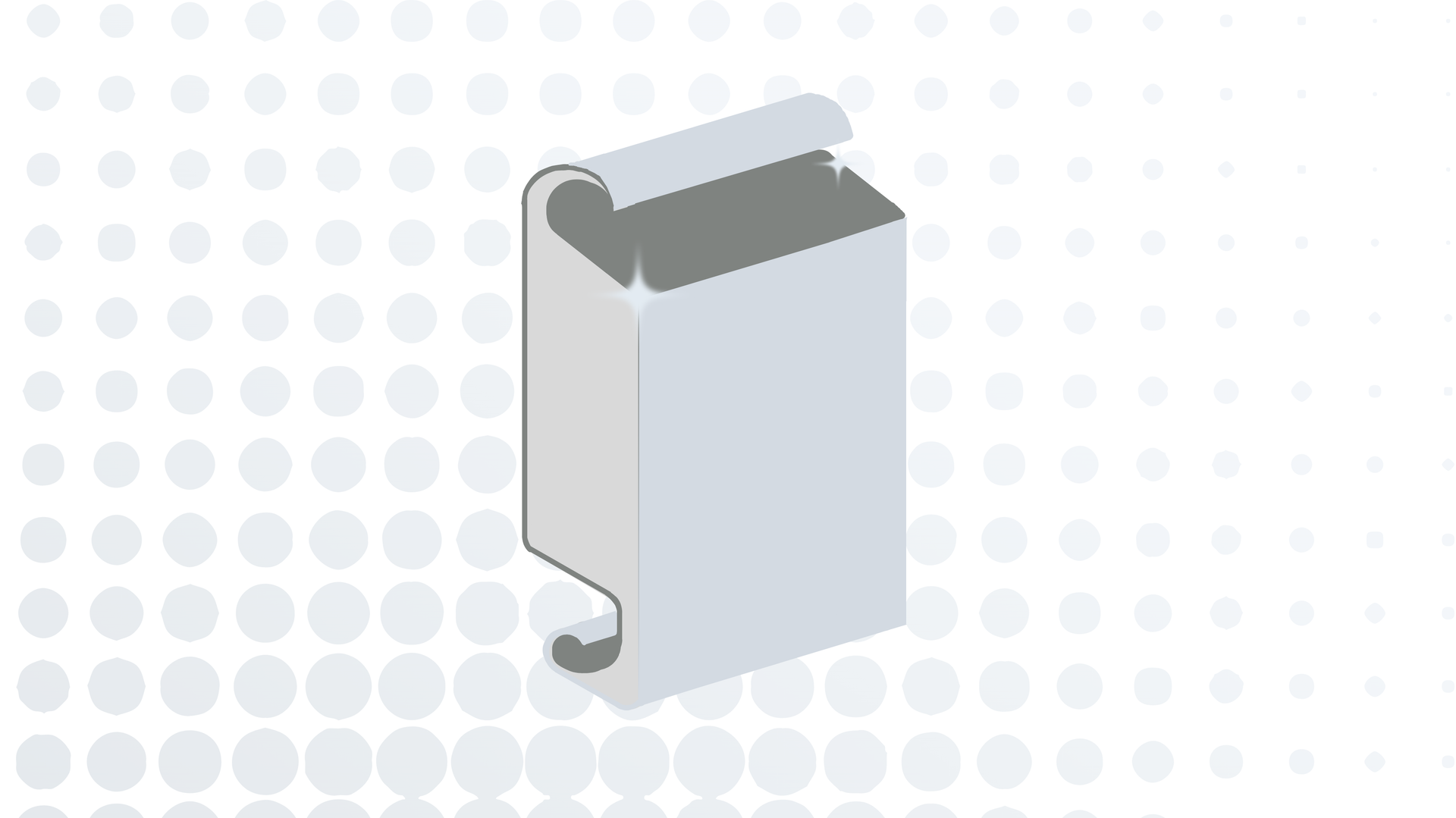

-IS = Insulated Slat

-PF = Perforated Slat

McKeon Sterling Grey (-G)

Standard Finish

RAL Powder Coat (-PC)

188 color selection

Stainless Steel (-SS)

No. 4 Polish

Aluminum (-A)

Clear Anodized

McKeon Sterling Grey (-G)

Perforated (PF)

RAL Powder Coat (-PC)

Perforated (PF)

Stainless Steel (-SS)

Perforated (PF)

Aluminum (-A)

Perforated (PF)

McKeon Sterling Grey (-G)

Insulated (-IS)

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

Download our details.

Download individual PDF sheets, CADs and more BELOW.

Download it all.

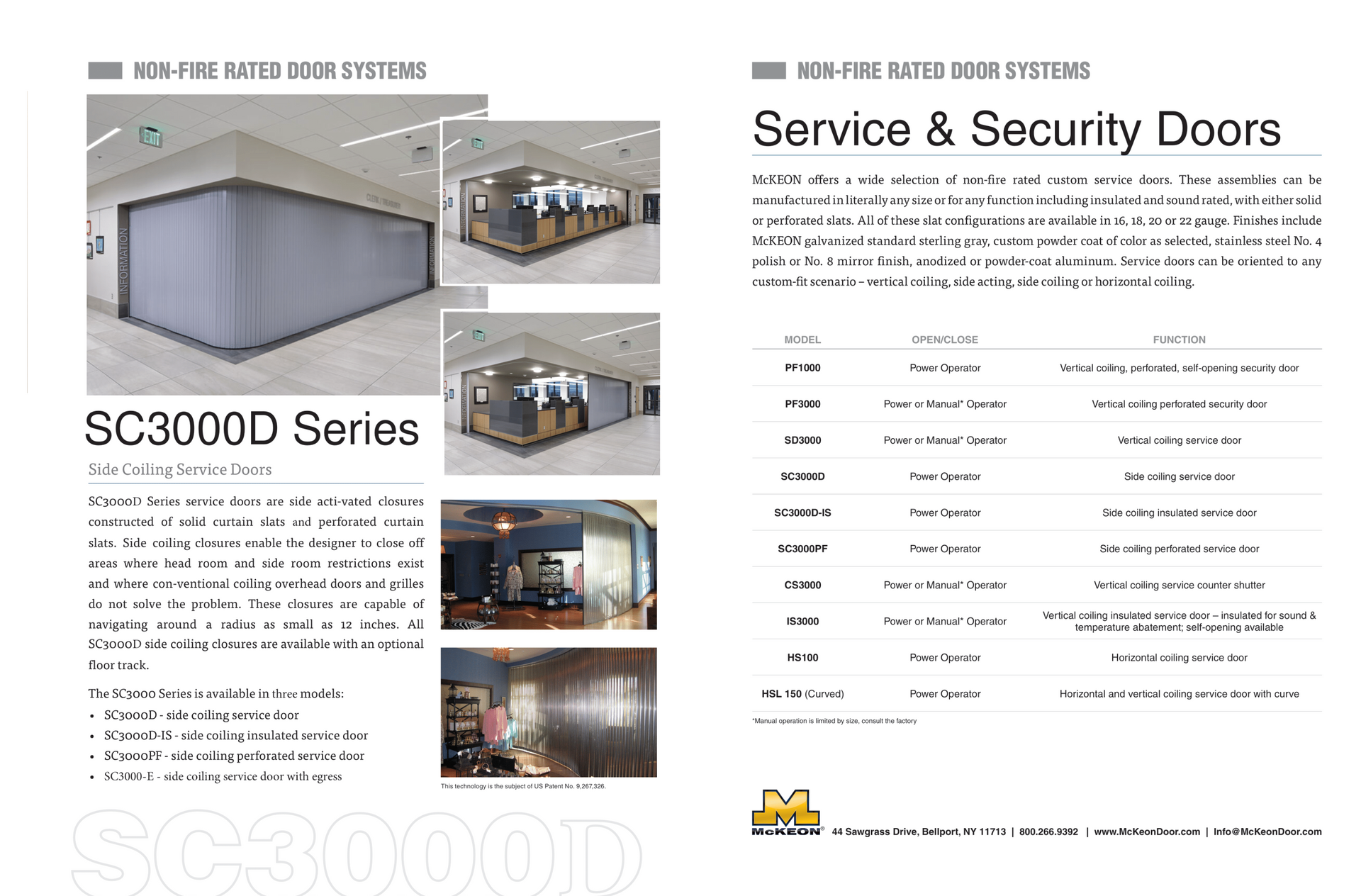

SC3000D Spec Kit

SC3000PF Spec Kit

SC3000D-E Spec Kit
