Safescape® G4000 Series

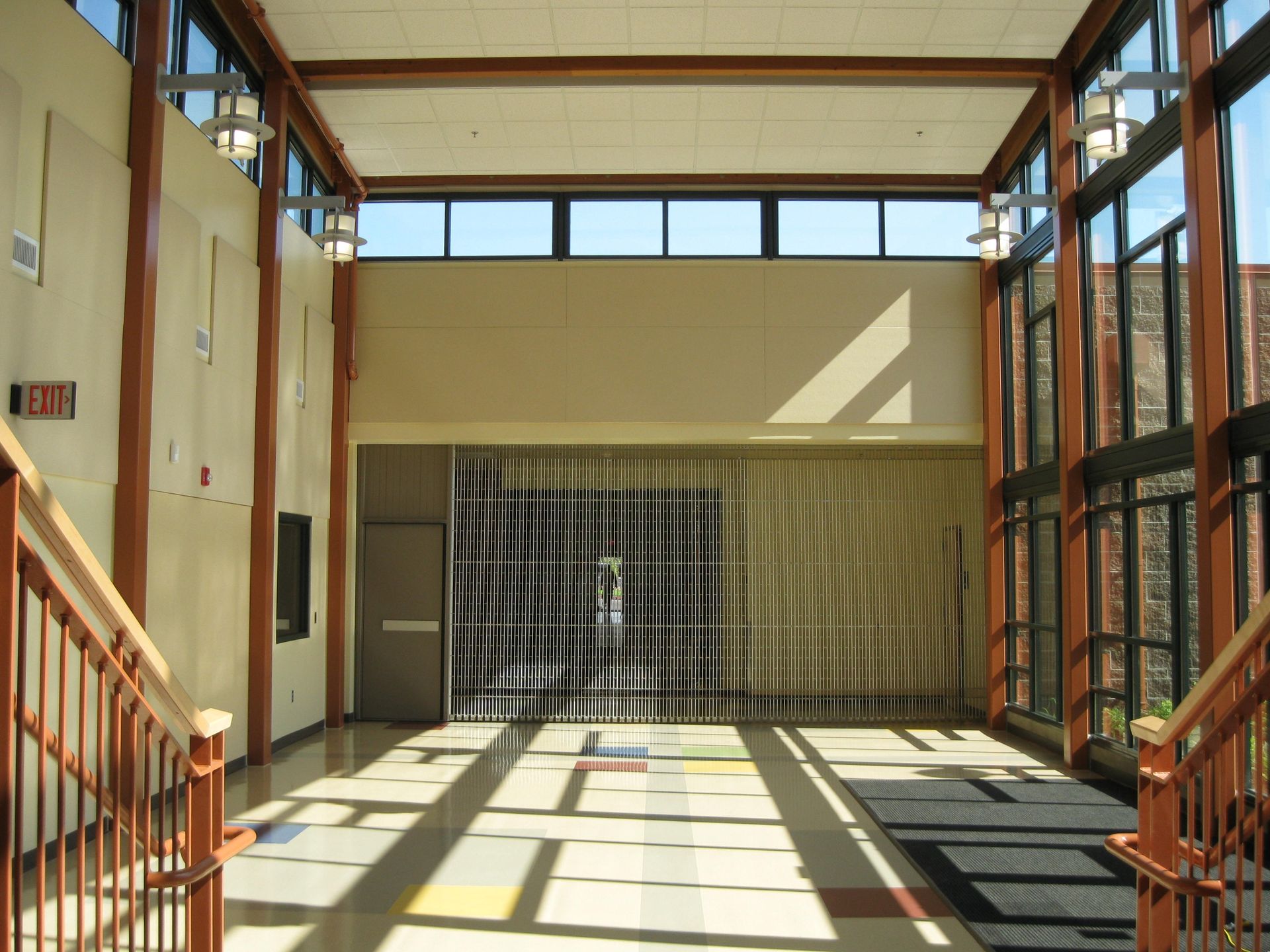

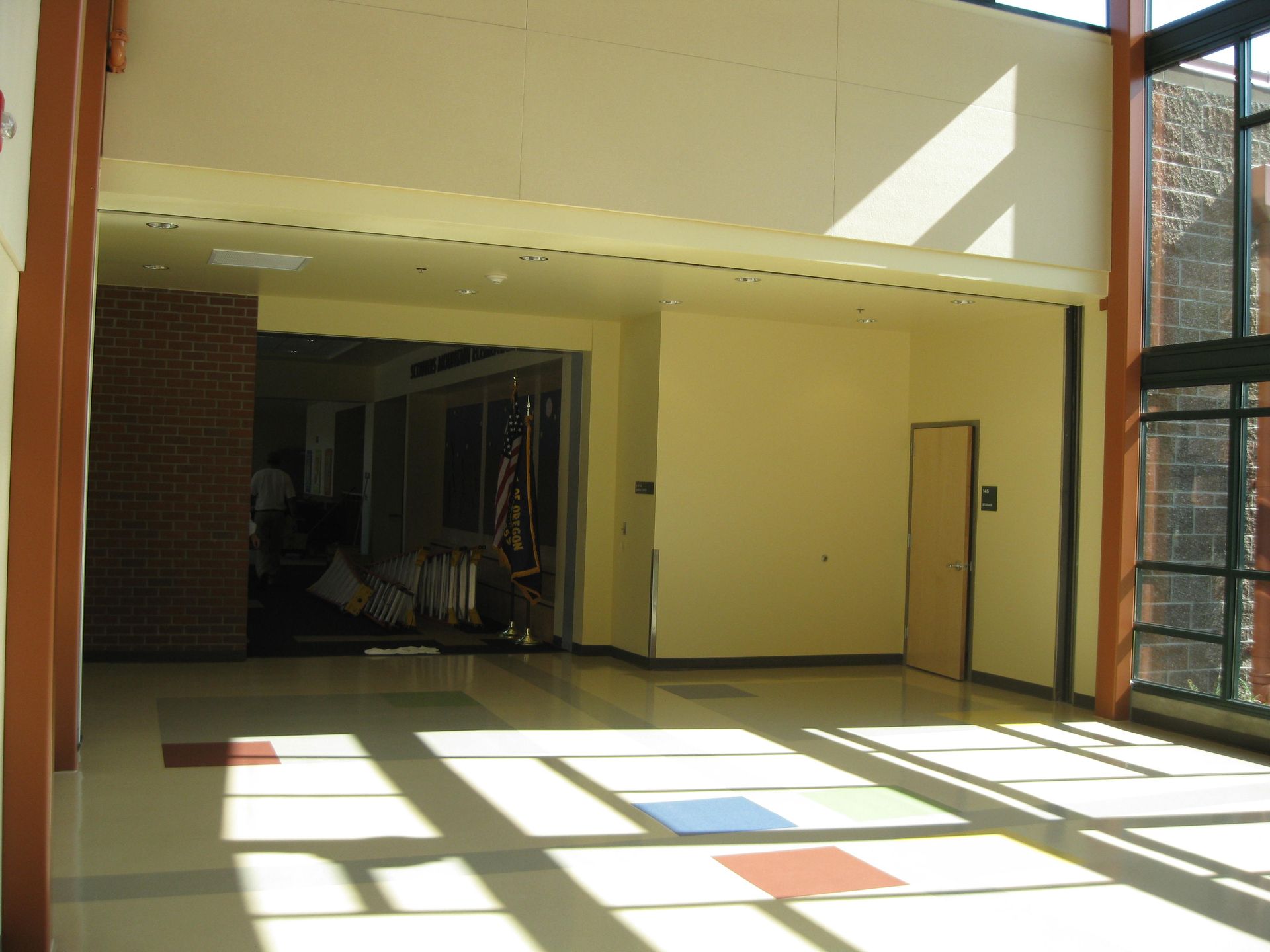

The G4000 side coiling grille offers unmatched protection with the assurance of fail-safe technology. Designed for secure spaces, it automatically opens during alarm or power failure, providing a safe path for building occupants.

NO FIRE

RATING

NO SMOKE

RATING

SIDE

COILING

EGRESS

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Get straight to the details. Everything you need all in one click.

Resource Hub

Security and egress, seamlessly combined.

 The G4000 provide everyday security and emergency egress during alarm situations and power failure. Perfect for applications where head room is limited.

The details that matter.

Ratings

• Not available (see Model S9000 if egress is required, or Model S4000  if no egress is required)

Egress

• Single or multiple fixed complying egress doors available when required


Operation

• Electric Motor Operation - Outboard Motor

• Fail safe design - automatic self opening mechanism does not require power operation to self-open

• Manual operation not available for this model

Code Compliance

• Complies with the current model building codes for being placed in the required path of egress.
• ADA compliant threshold


Available Sizes

• Widths up to 80'-0"

• Widths up to 24'-0"

• For larger sizes and custom configurations consult the factory

Finishes

• Aluminum (clear anodized)
• RAL Powder Coat
• Stainless Steel (No. 4 Polish)

Finish options.

Clear Anodized Aluminum (-A)

Standard finish

RAL Powder Coat (-PC)

188 color selection

Stainless Steel (-SS)

No. 4 Polish

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

Download our specs.

Egress

G4000 = No egress doors

G4500 = 1 or more egress door(s)

Finish

-A = Clear Anodized Aluminum

-PC = Powder Coat, 188 standard colors

-SS = Stainless Steel, No. 4 polish finish

Grille

Patterns

Grille Pattern SL9

Grille Pattern ST1

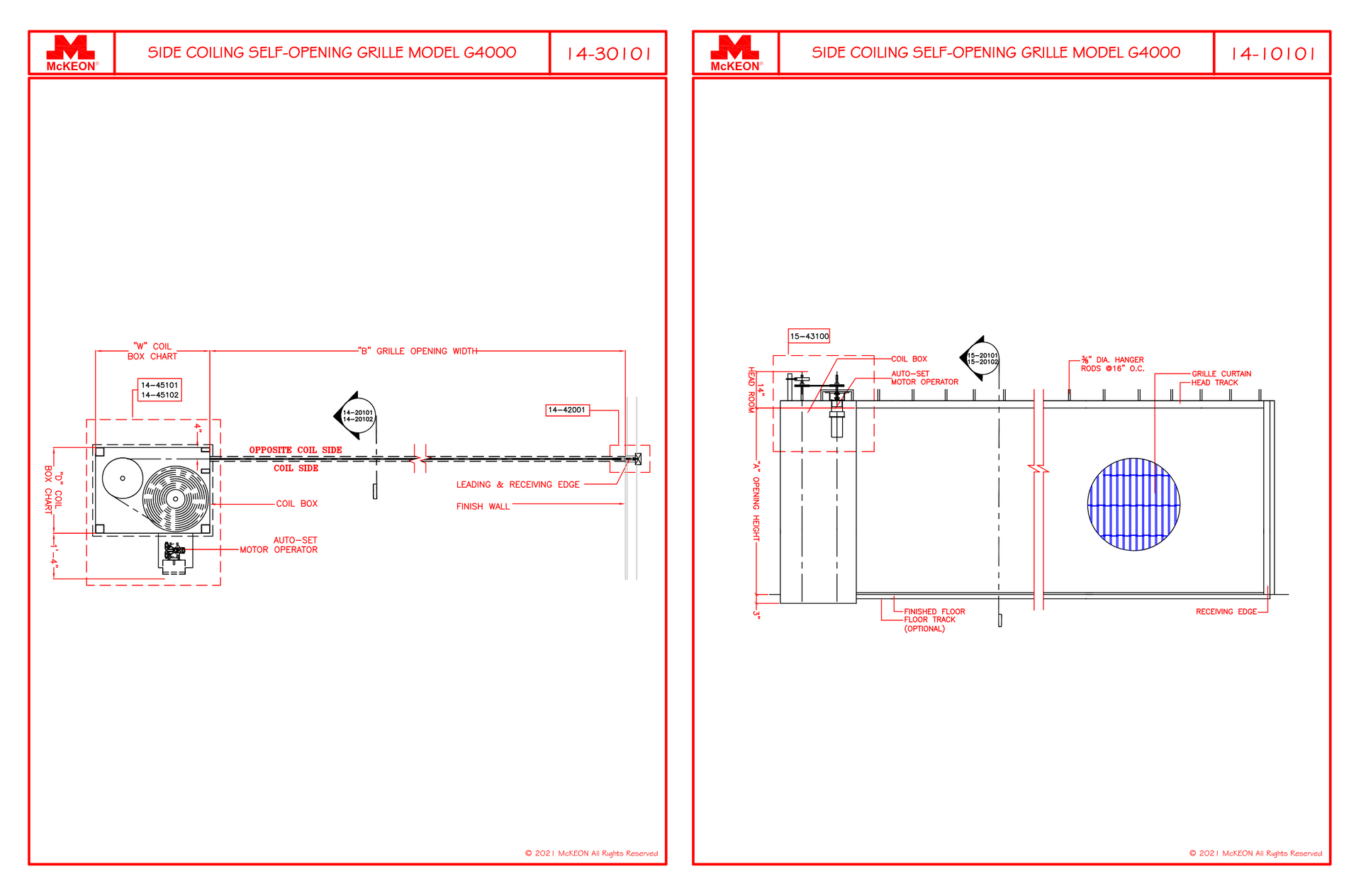

Download our details.

Download individual PDF sheets, CADs and more BELOW.

Download it all.

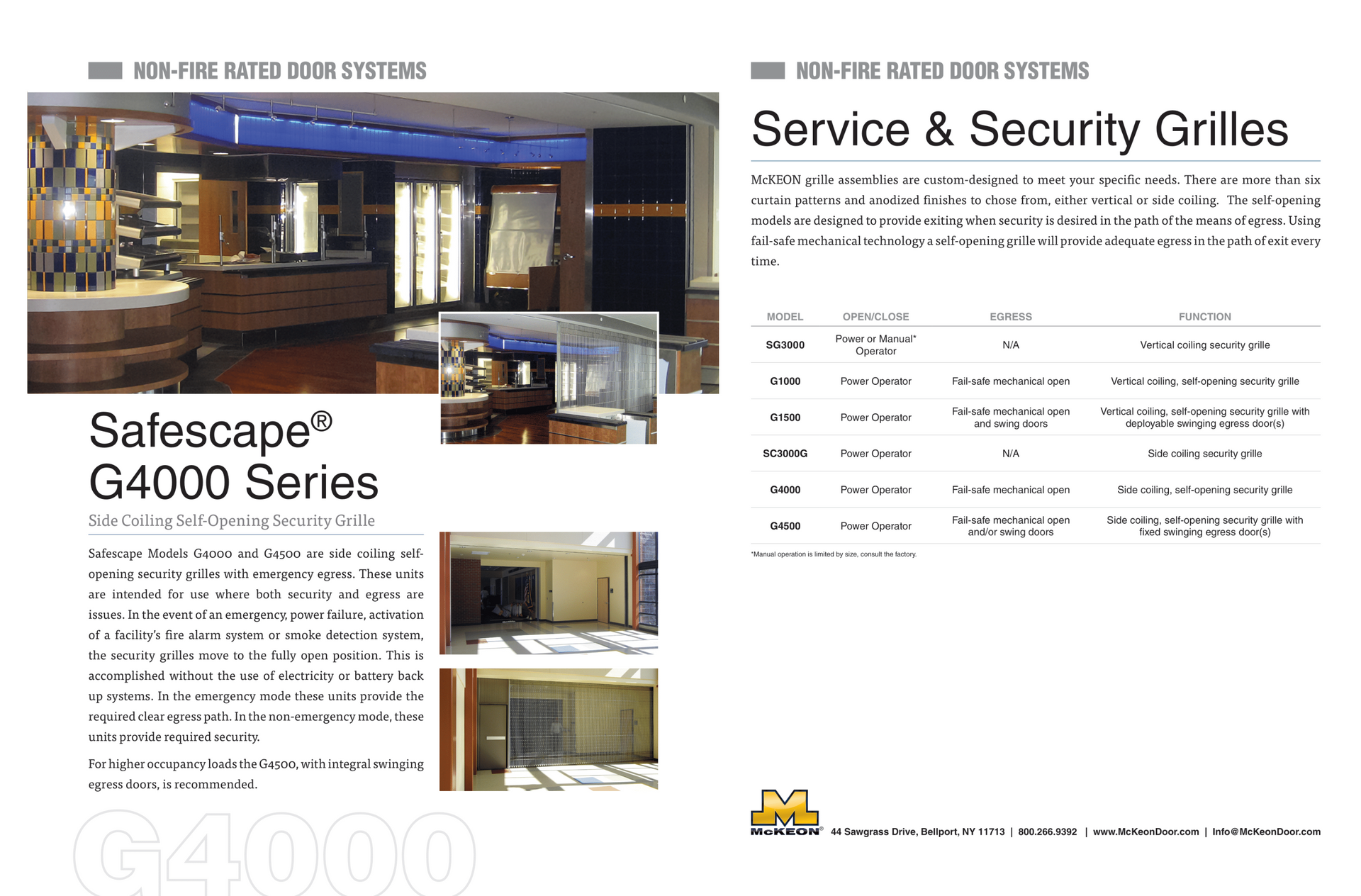

G4000 Spec Kit

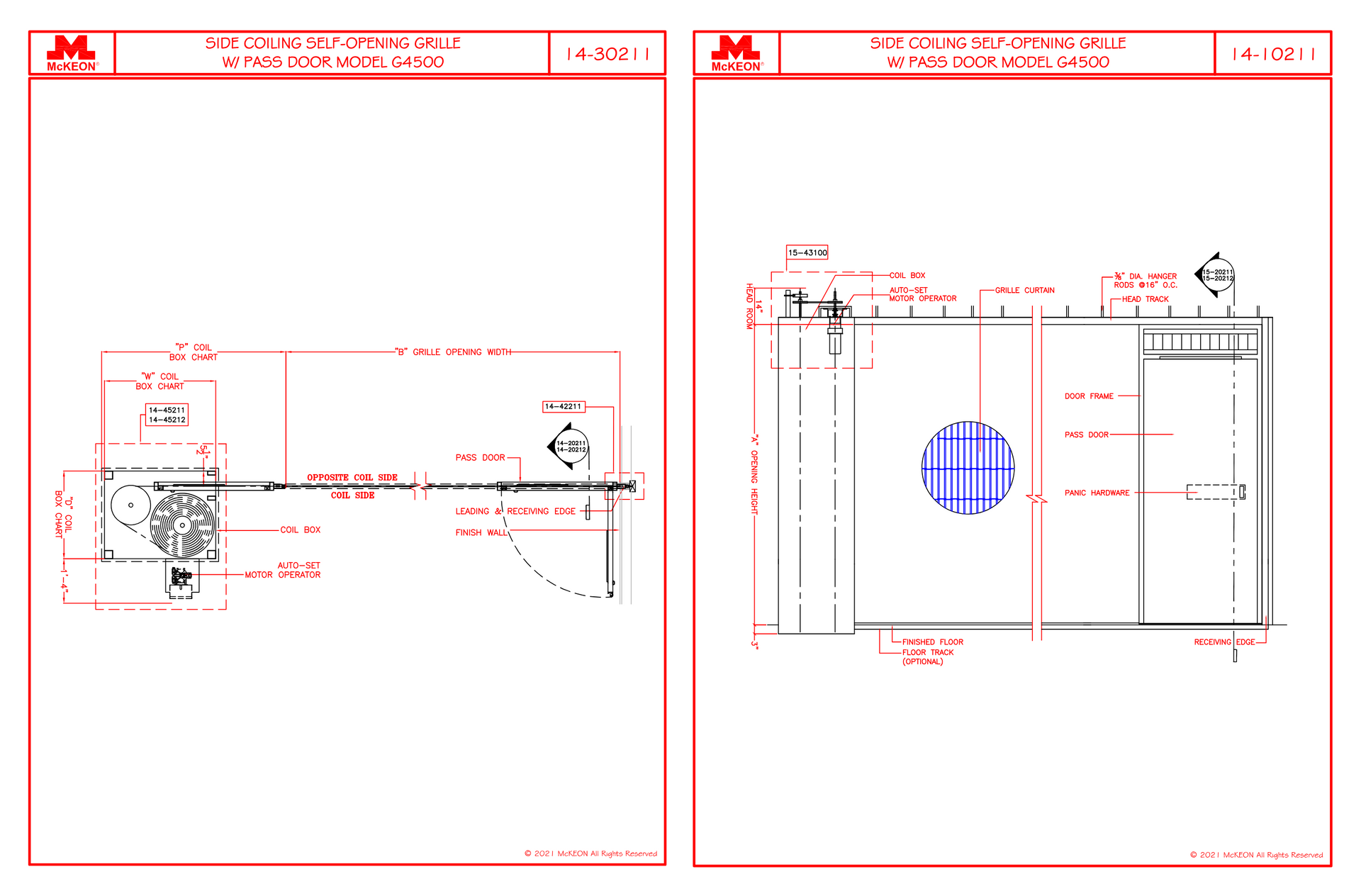

G4500 Spec Kit
