BlastShield™  BL6000

 The BL6000 is engineered to withstand extreme forces. Tested to endure up to 12 PSI of blast pressure, it delivers unparalleled security while protecting against the most unlikely threats.

NO FIRE

RATING

NO SMOKE

RATING

OVERHEAD

COILING

BLAST RESISTANT

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Resource Hub

Get straight to the details. Everything you need all in one click.

Built for impact. Designed to withstand the unimaginable.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500

The details that matter.

Ratings

• Not available (see Model FSFD, CFS, T2000  or T5000 if fire rating is needed, will not provide blast resistance)

Egress

Not available (See IS3000E if egress is needed, will not provide blast resistance)

Operation

• Electric Motor Operation - Outboard Motor


Testing

• ASTM F2927-21 - Shock Tube Test Independently tested by Intertek

• Level Category II - ASTM Damage
• 12 PSI  - Peak Reflected Pressure (1,440 psf).


Available Sizes

• Sizes based on desired Damage Level Category, Peak Reflected Pressure and project design requirements

• For larger sizes and custom configurations consult the factory

Finishes

• Dusky Charcoal
• RAL Powder Coat


What makes the BlastShield™ BL6000

different?

Shock Tube Tested

ASTM Damage Category  - The BlastShield Model BL6000 achieved an ASTM Damage Level Category II.

Peak Reflected Pressure  - The BlastShield Model BL6000 is unsurpassed by any other overhead coiling door with a tested Peak Reflected Pressure of 12 psi (1,728 psf).

Download our specs.

Specification Key

-D = Dusky Charcoal (one color option)

-PC = Powder Coat, 188 color selection from standard colors (download chart here)

BL6000

Specs

Dusky Charcoal (-D)

Standard Finish

RAL Powder Coat (-PC)

188 color selection

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

Download our details.

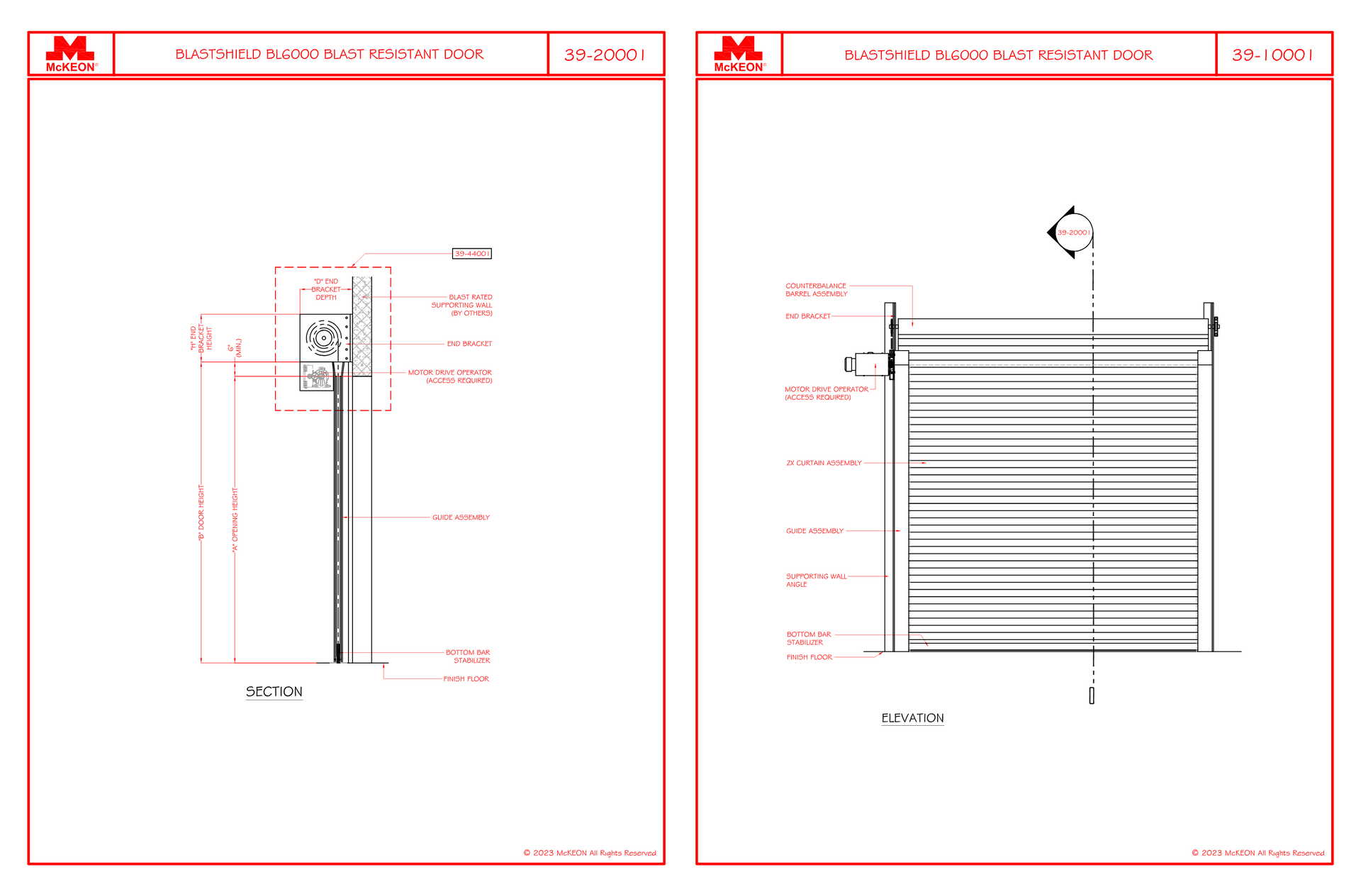

BL6000

Details

Download individual PDF sheets, CADs and more BELOW.

Download it all.

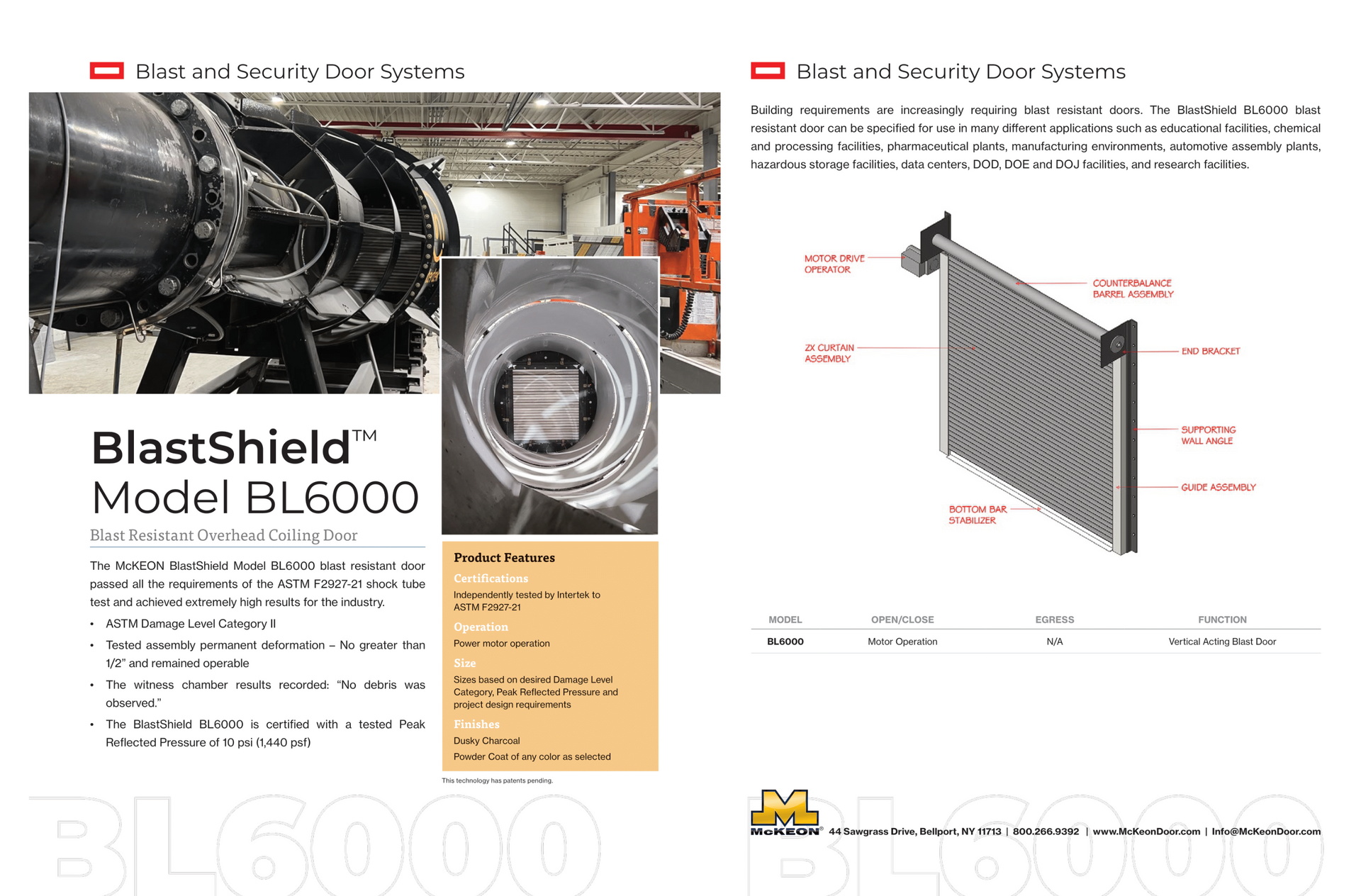

BL6000 Spec Kit

Already know the Wind, Blast, Ballistics or Forced Entry rated product you're looking for?

FEMA & Wind Rated Doors

SafeSpace500   - FEMA 361 & ICC 500 wind rated doors

Operational Wind Loaded Doors

Dynamic 110™ - Operational Wind Load of 110 mph

Blast Resistant

BlastShield™ BL6000 - 10 PSI Blast Rated and ASTM Damage Level Category II

Forced Entry

EntryShield™ FE6000 - 60 Minutes Forced Entry

Ballistics Rated

BulletShield™ BT1000 & BT3000 -  large bore, large caliber handguns up to .44 magnum

Explore more possibilities.

Side Acting Fire Doors

Vertical Acting Fire Doors

Fire & Smoke Curtains

Still have a question?

Discover more about McKEON's diverse product line and start the design process by reaching out today. We’re ready to help turn your design vision into reality.
