HS100 Series

The HS100 redefines versatility, deploying horizontally to secure spaces at the tabletop plane. Designed to meet the most unique challenges, the HS100 delivers innovative security where horizontal solutions are essential.

NO FIRE

RATING

NO SMOKE

RATING

HORIZONTAL

COILING

NO

EGRESS

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Get straight to the details. Everything you need all in one click.

Resource Hub

Fit any challenge. Redefine every space.

Horizontal security doors are designed for the trickiest openings. Similar to an overhead coiling service door, they deploy on the tabletop plane providing security over horizontal enclosures.

The details that matter.

Ratings

• Not available (see Model H200 if fire rating is needed)


Egress

• This product is not available with egress.

Operation

• Electric Motor Operation only

• Fail safe motor operator available (see Model H200)


Special Features

• HS100 runs on the "tabletop" plane and connects with receiving channel on opposite side of opening.

• HSL150 curves to make contact with the finish floor at the end of its run.


Available Sizes

• Widths to 30'-0"
• Lengths to 90'-0" (180'-0" bi-parting)

• For larger sizes and custom configurations consult the factory

Finishes

• McKeon Sterling Grey
• RAL Powder Coat
• Stainless Steel (No. 4 Polish)
• Aluminum (clear anodized)


Download our specs.

Orientation

HS100 = Straight Run

HSL150 = Curved Run

Finish

-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 standard colors

-SS = Stainless Steel, No. 4 polish finish

-A = Clear Anodized Aluminum

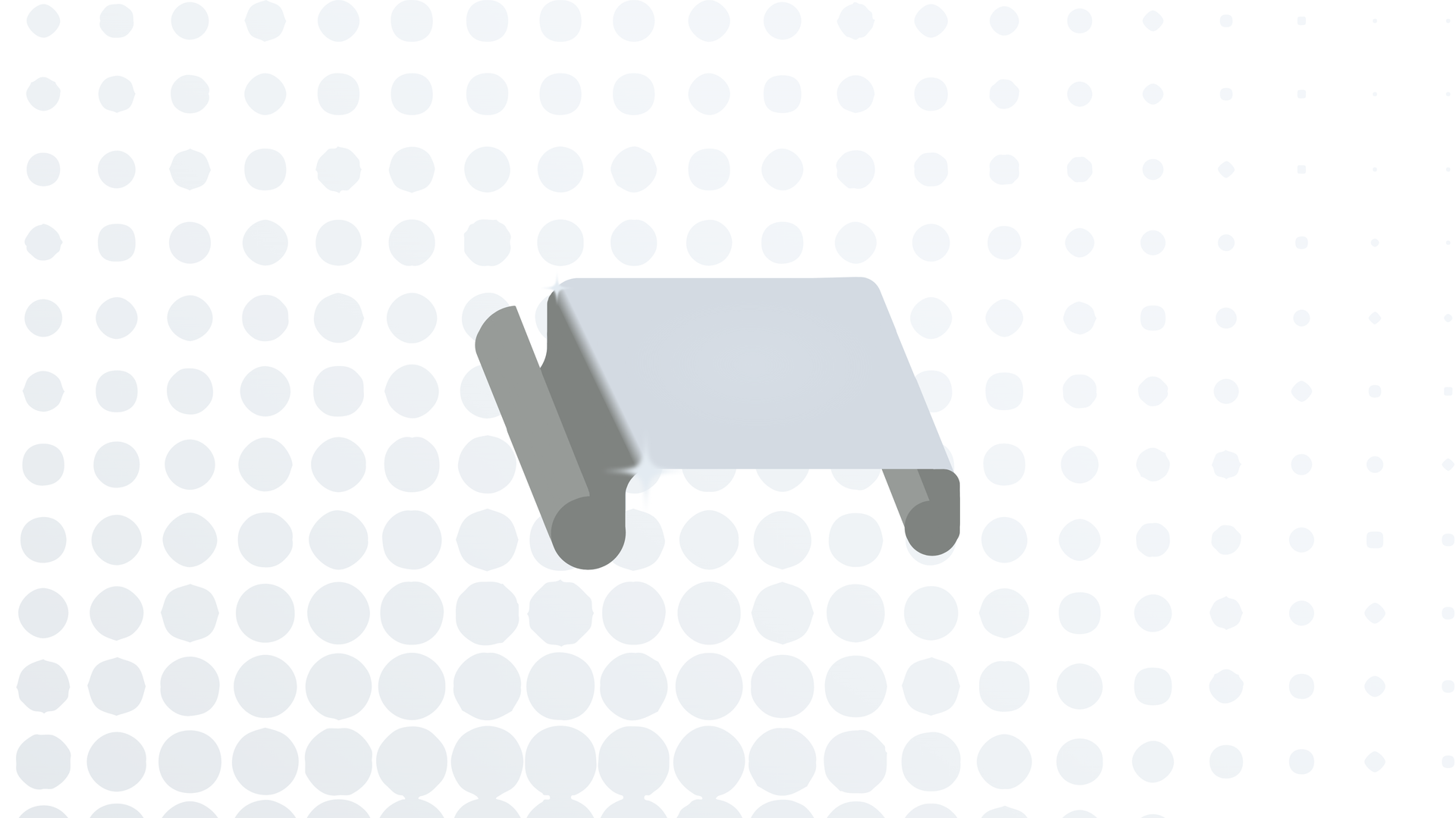

McKeon Sterling Grey (-G)

Standard Finish

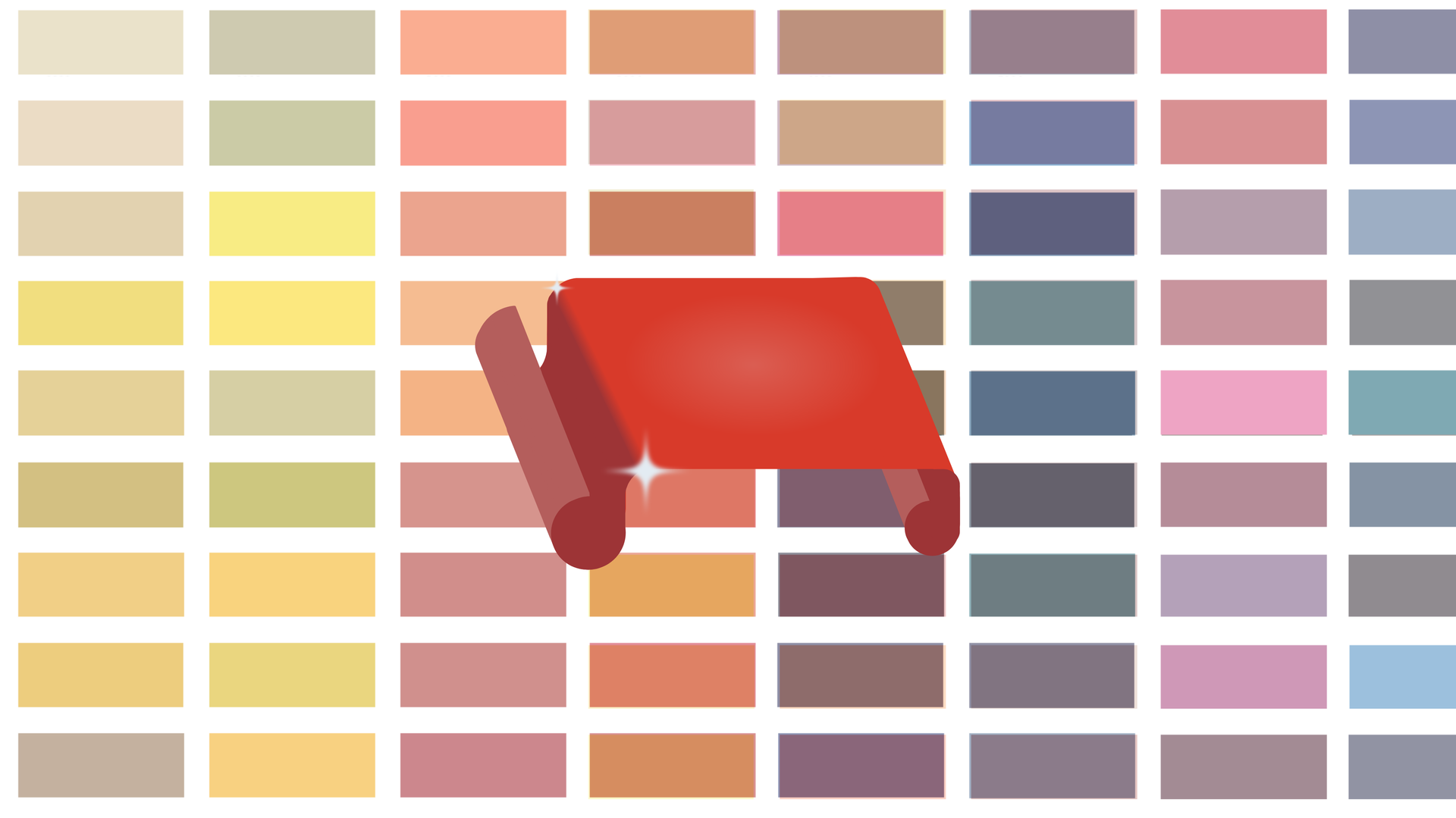

RAL Powder Coat (-PC)

188 color selection

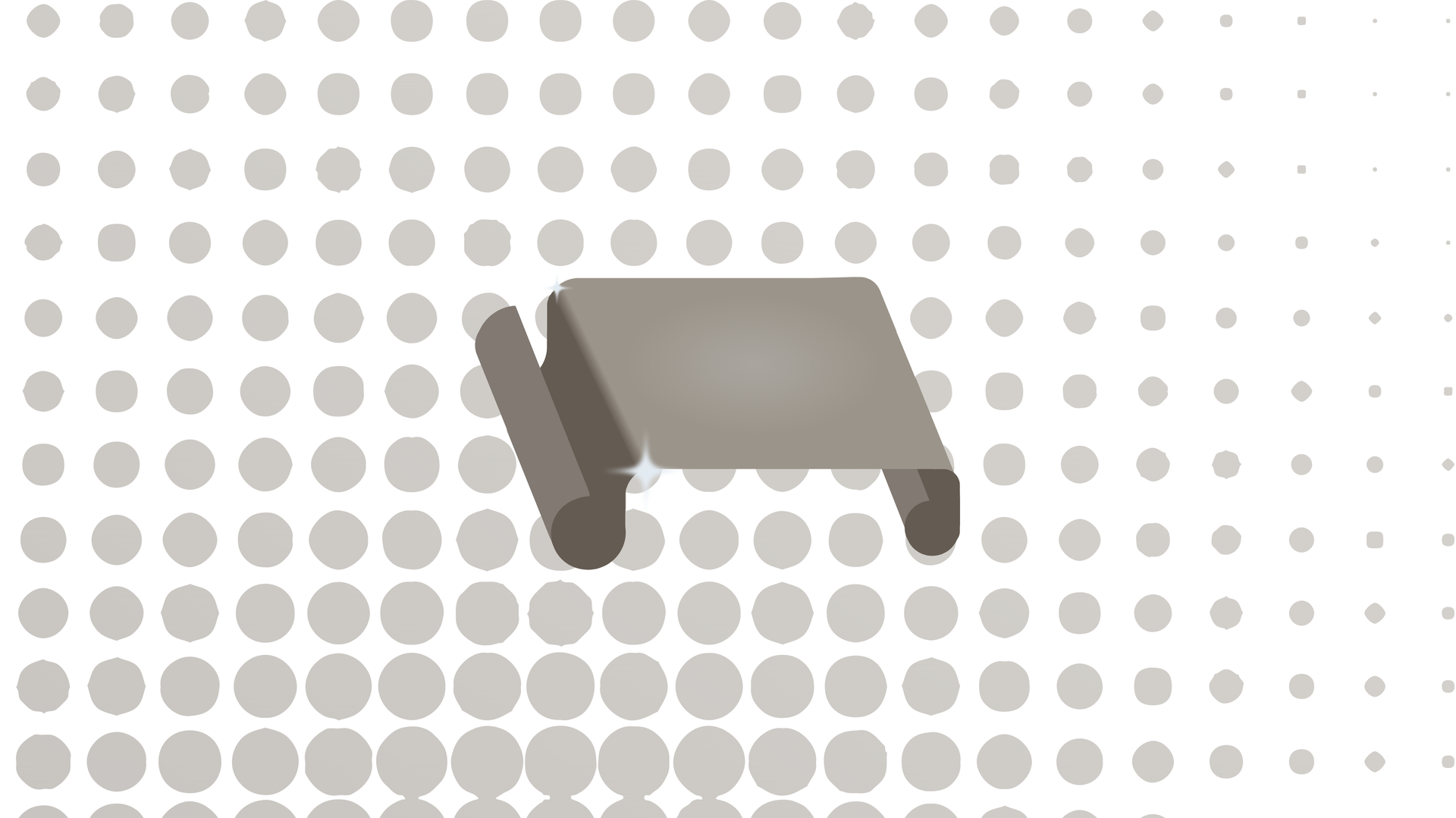

Stainless Steel (-SS)

No. 4 Polish

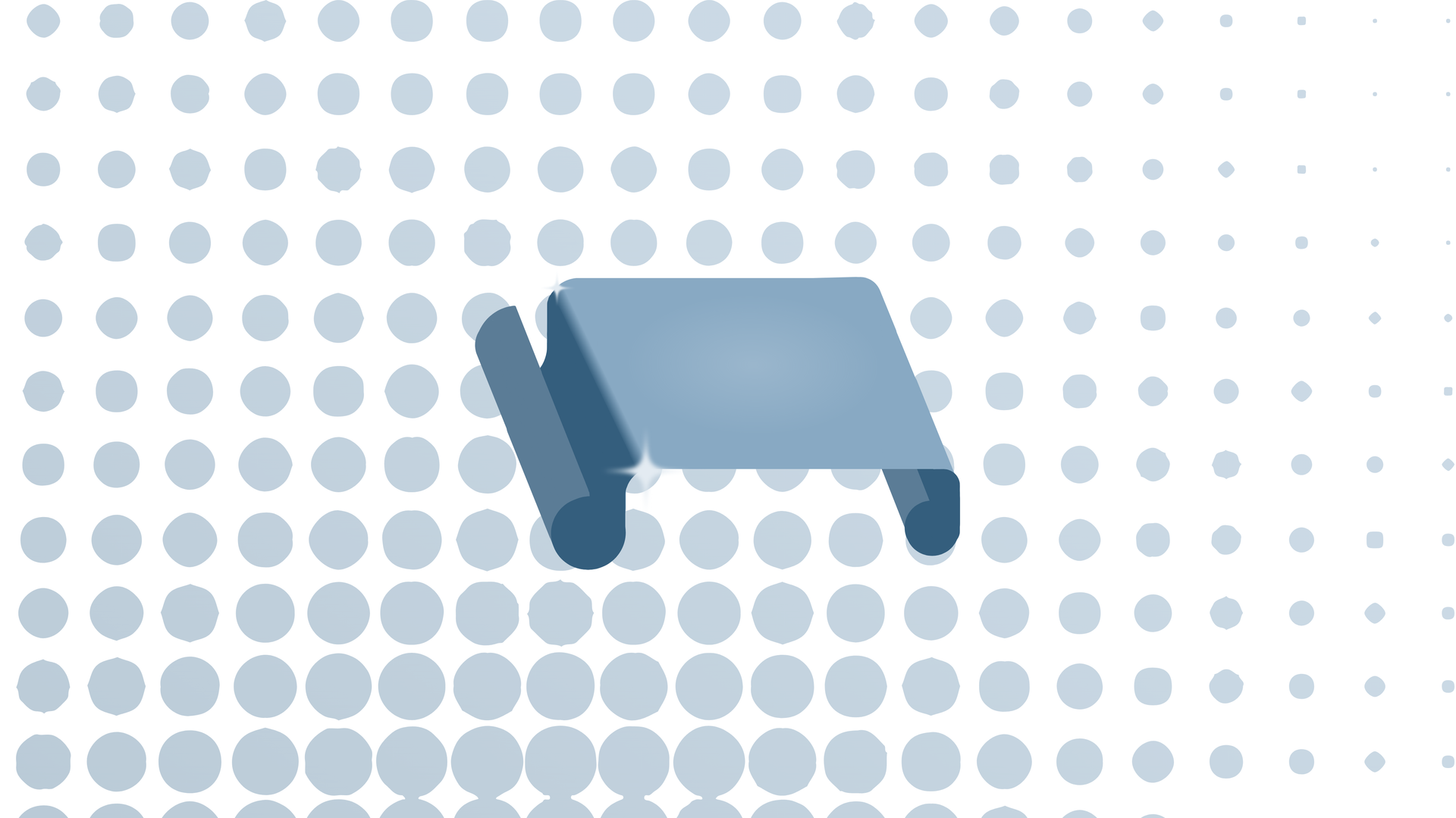

Aluminum (-A)

Clear Anodized

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

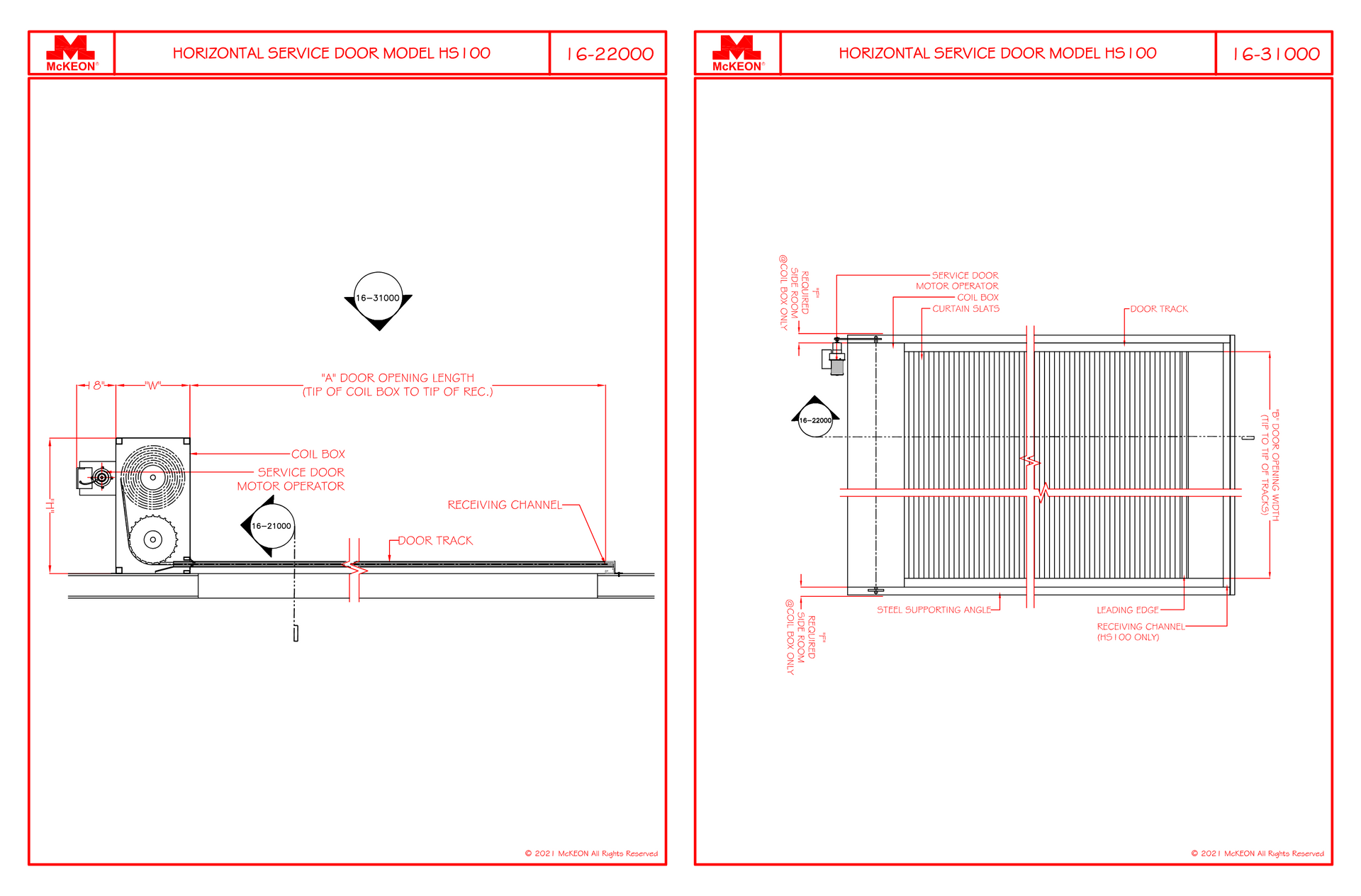

Download our details.

Download individual PDF sheets, CADs and more BELOW.

Download it all.

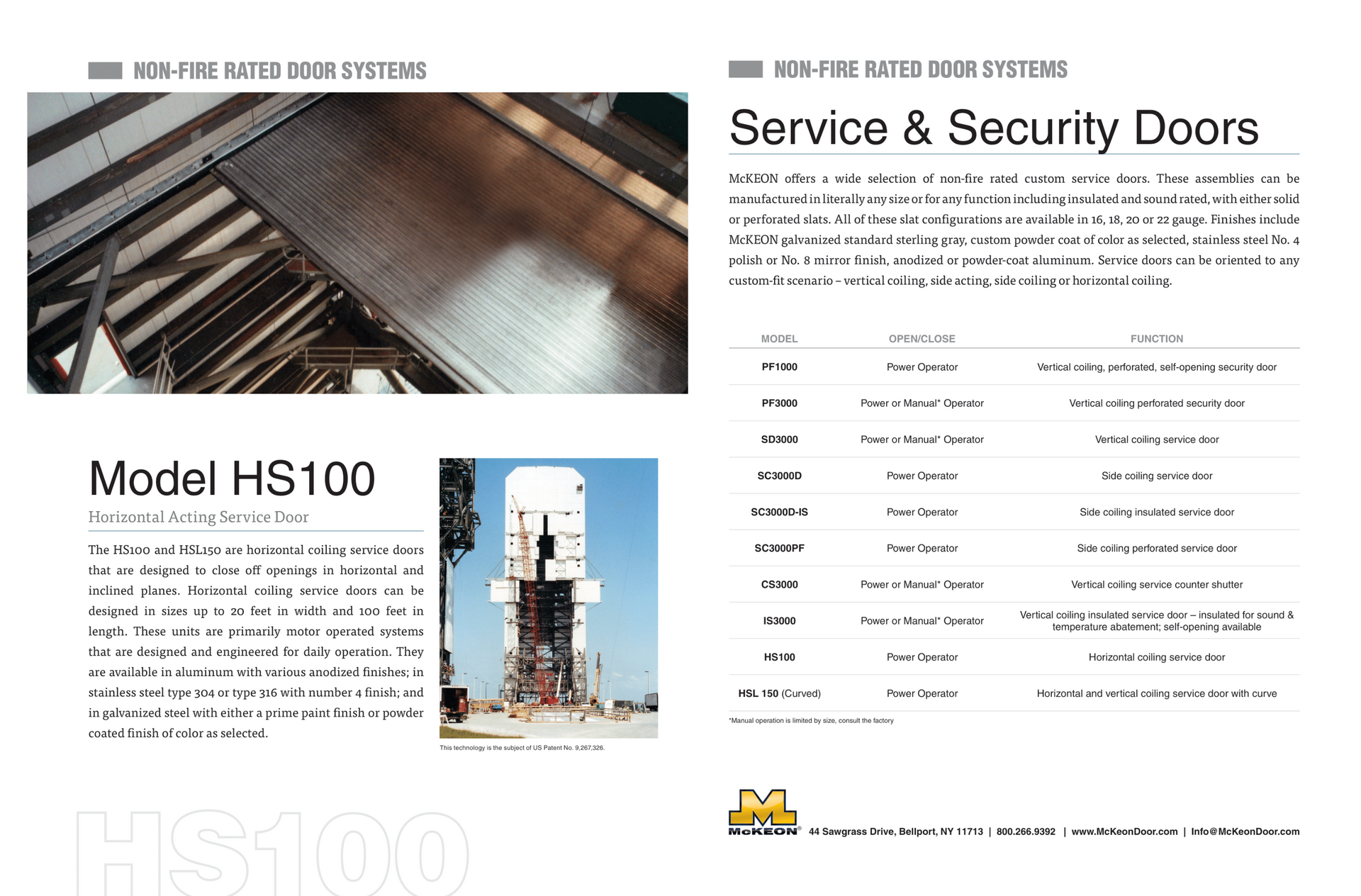

HS100 Spec Kit

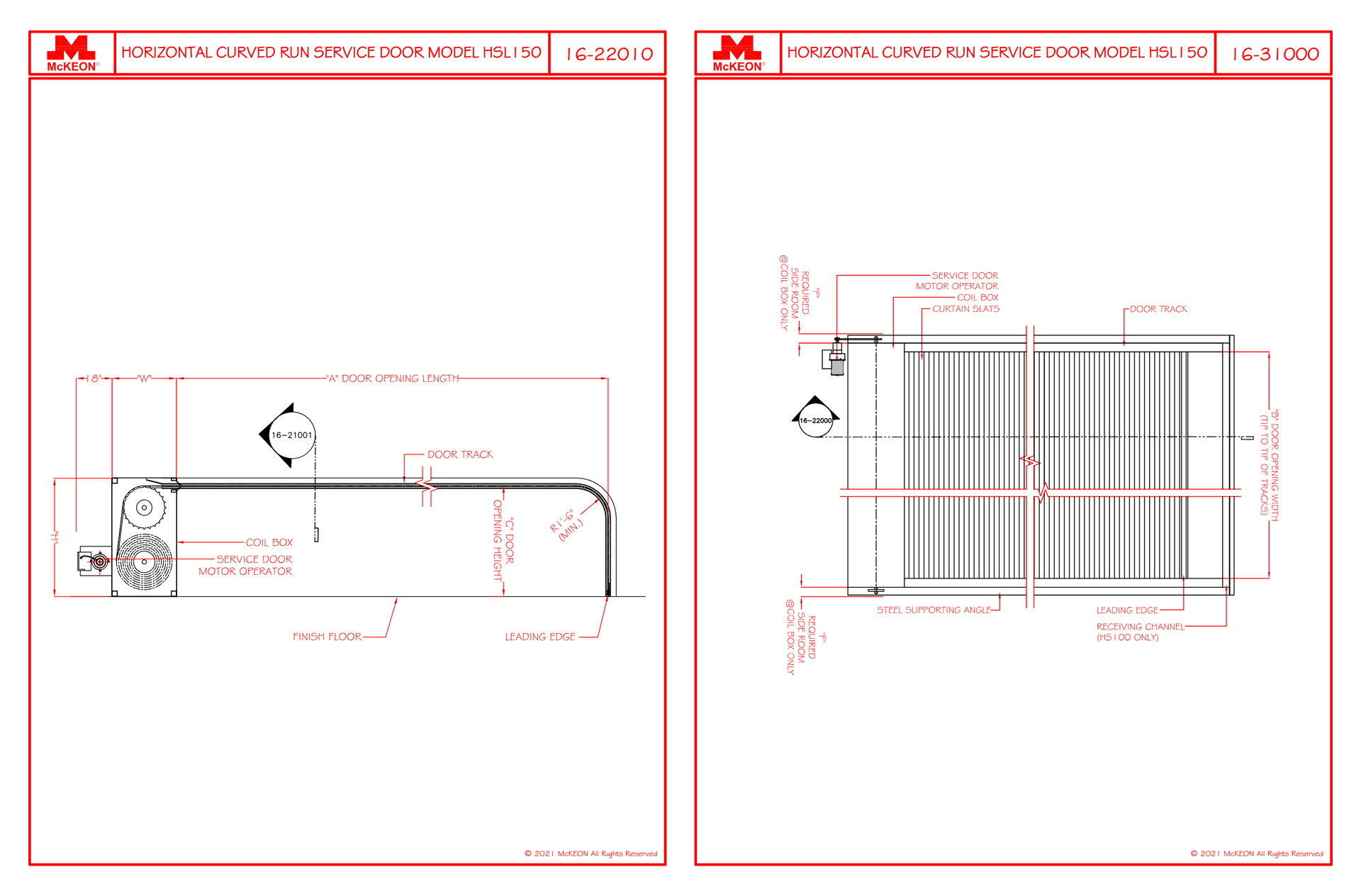

HSL150  Spec Kit

Already know the

Service Door Series  product you're looking for?

Standard Service Doors

Model IS3000   - Vertical Acting Insulated Security Door

Model SD3000   - Vertical Acting Uninsulated Security Door

Model PF3000 - Vertical Acting Perforated Security Door

Model CS3000  - Vertical Acting Counter Shutter

Side Acting Service Doors

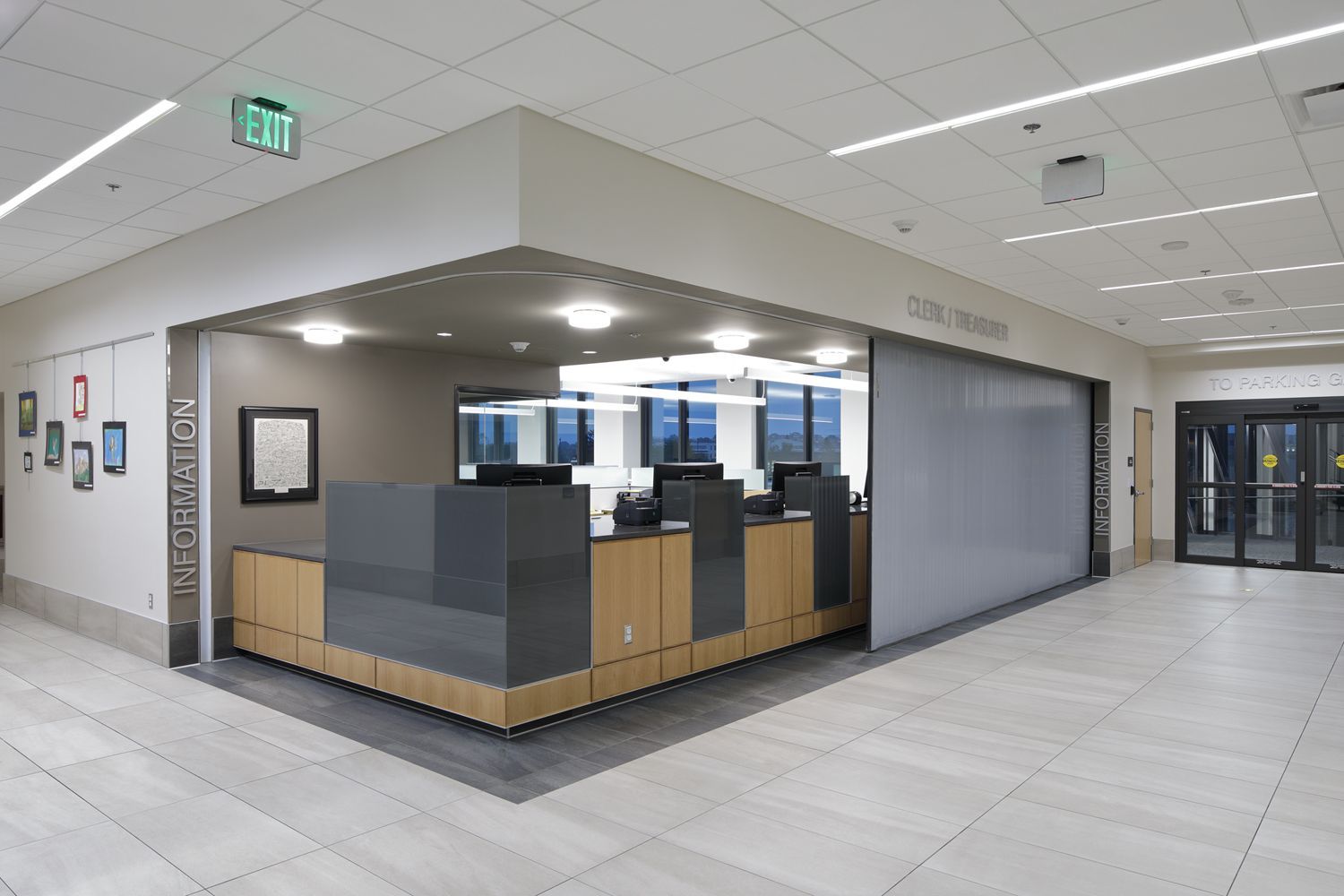

Model SC3000D - Side Coiling Security Door
