CS3000 Series

Featuring a smaller slat profile, the CS3000 reduces the head box size, making it ideal for countertops and tight spaces where traditional rolling steel doors won’t fit. Whether securing a service counter, concession stand, or other compact openings, the CS3000 provides reliable protection without compromising design or space efficiency.

NO FIRE

RATING

NO SMOKE

RATING

OVERHEAD

COILING

NO

EGRESS

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Get straight to the details. Everything you need all in one click.

Resource Hub

Secure the smallest spaces. Perfection, perfectly sized.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500

The details that matter.

Ratings

• Not available (see Model FSFD, CFS, T2000  or T5000 if fire rating is needed)

Egress

• See PF3000E, IS3000E, or SD3000E below if egress is needed.

Operation

• Electric Motor Operation - Outboard Motor
• Electric Motor Operation - Inboard Tubular
• Manual - Hand Crank
• Manual Push Pull

• Fail safe motor operator available (see Model CFS)


Radius

• Not available


Available Sizes

• Widths up to 30'-0"
• Heights to 12'-0"

• For larger sizes and custom configurations consult the factory

Finishes

• McKeon Sterling Grey
• RAL Powder Coat
• Stainless Steel (No. 4 Polish)
• Aluminum (clear anodized)

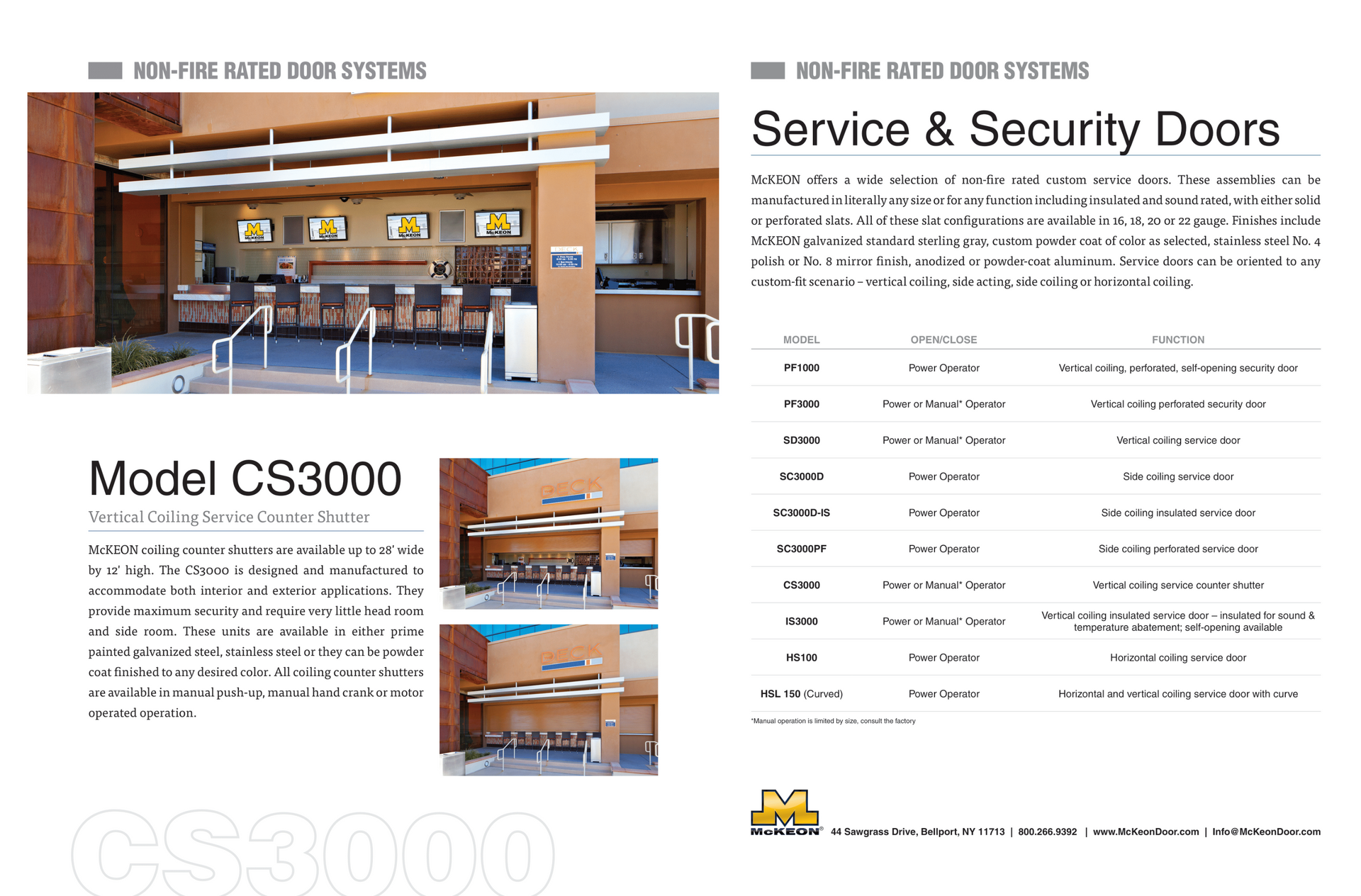

Download our specs.

Specification Key

-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 color selection from standard colors (download chart here)

-SS = Stainless Steel, No. 4 polish finish

-A = Clear Anodized Aluminum (one color option)

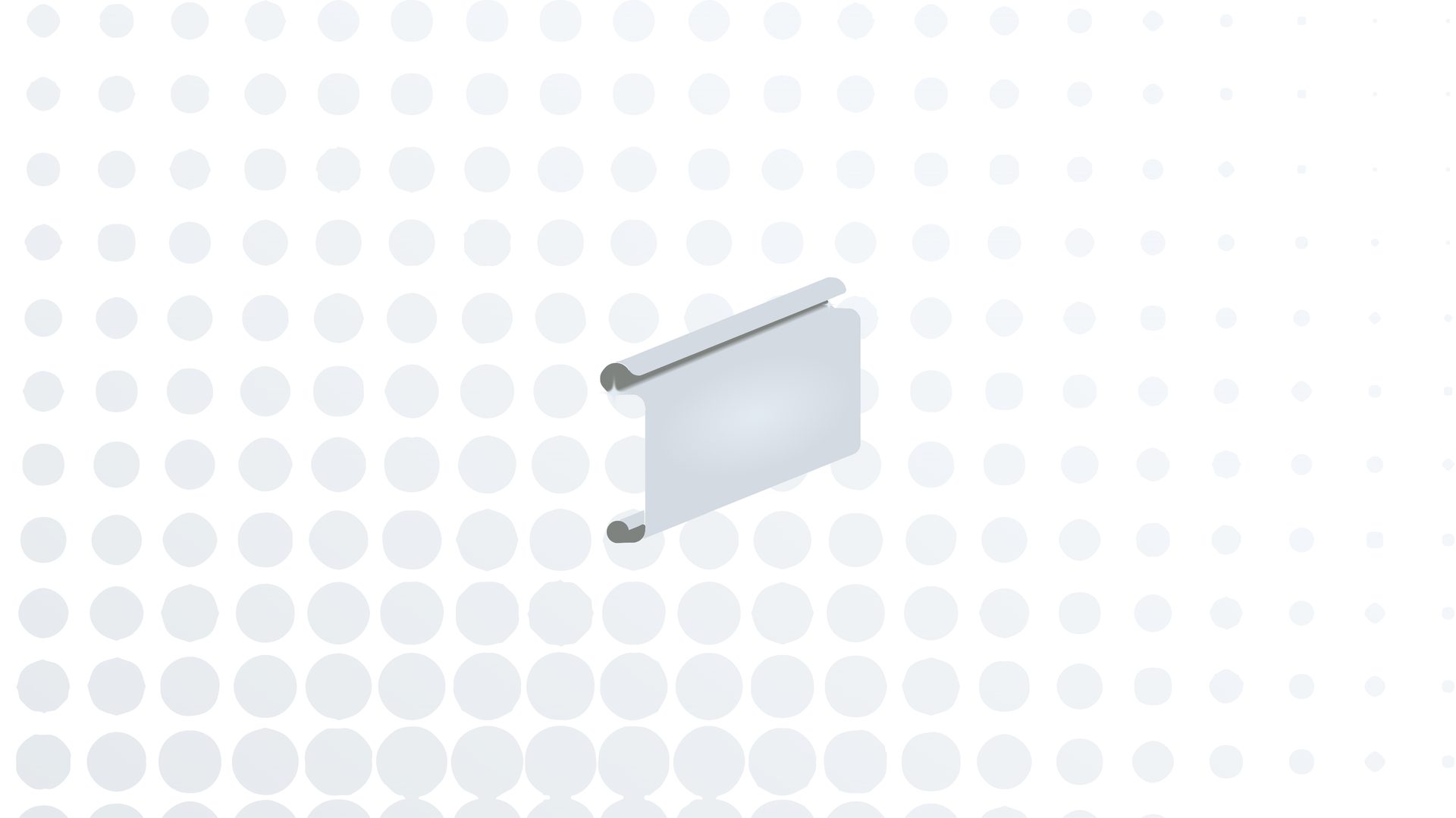

McKeon Sterling Grey (-G)

Standard Finish

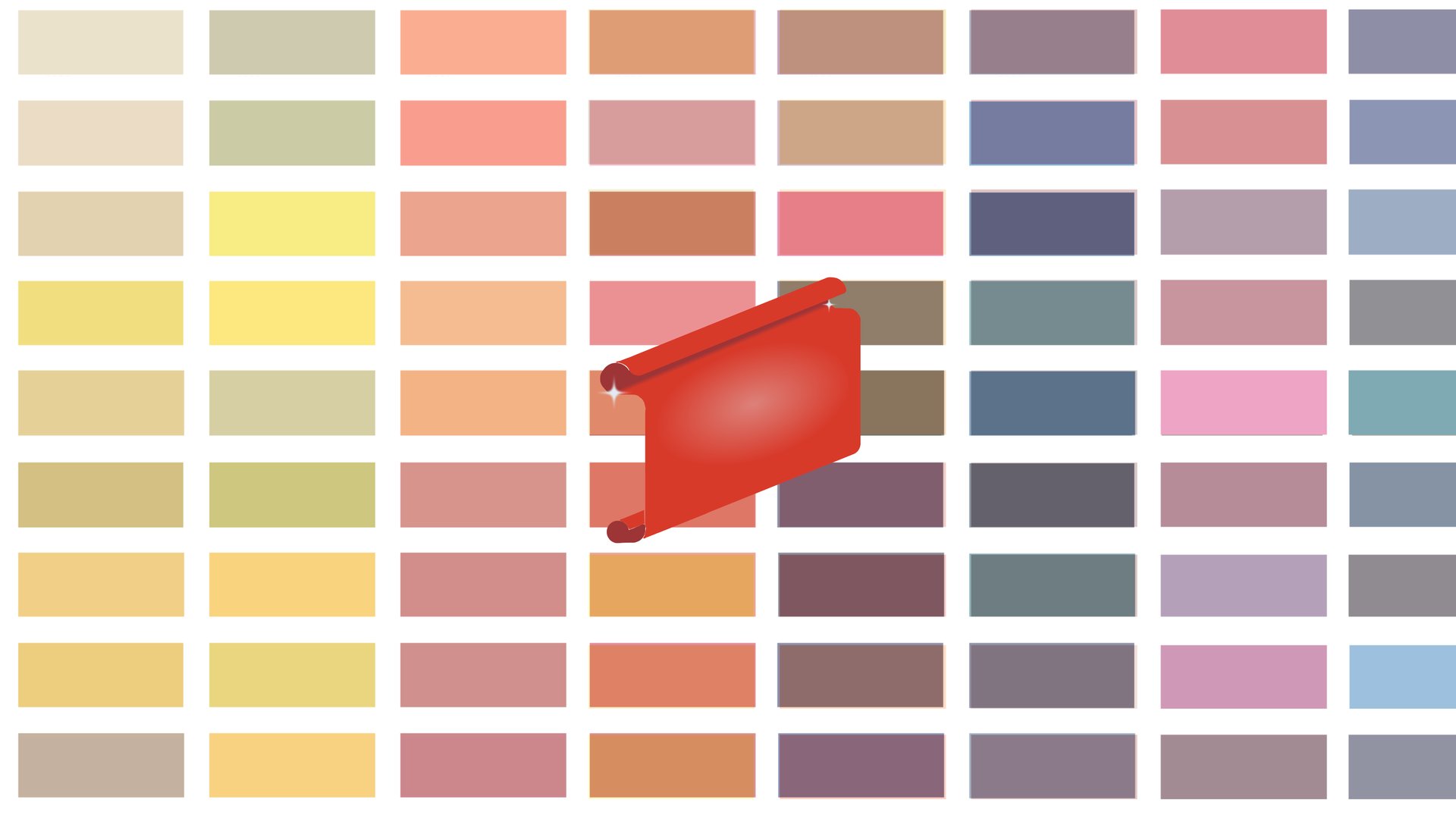

RAL Powder Coat (-PC)

188 color selection

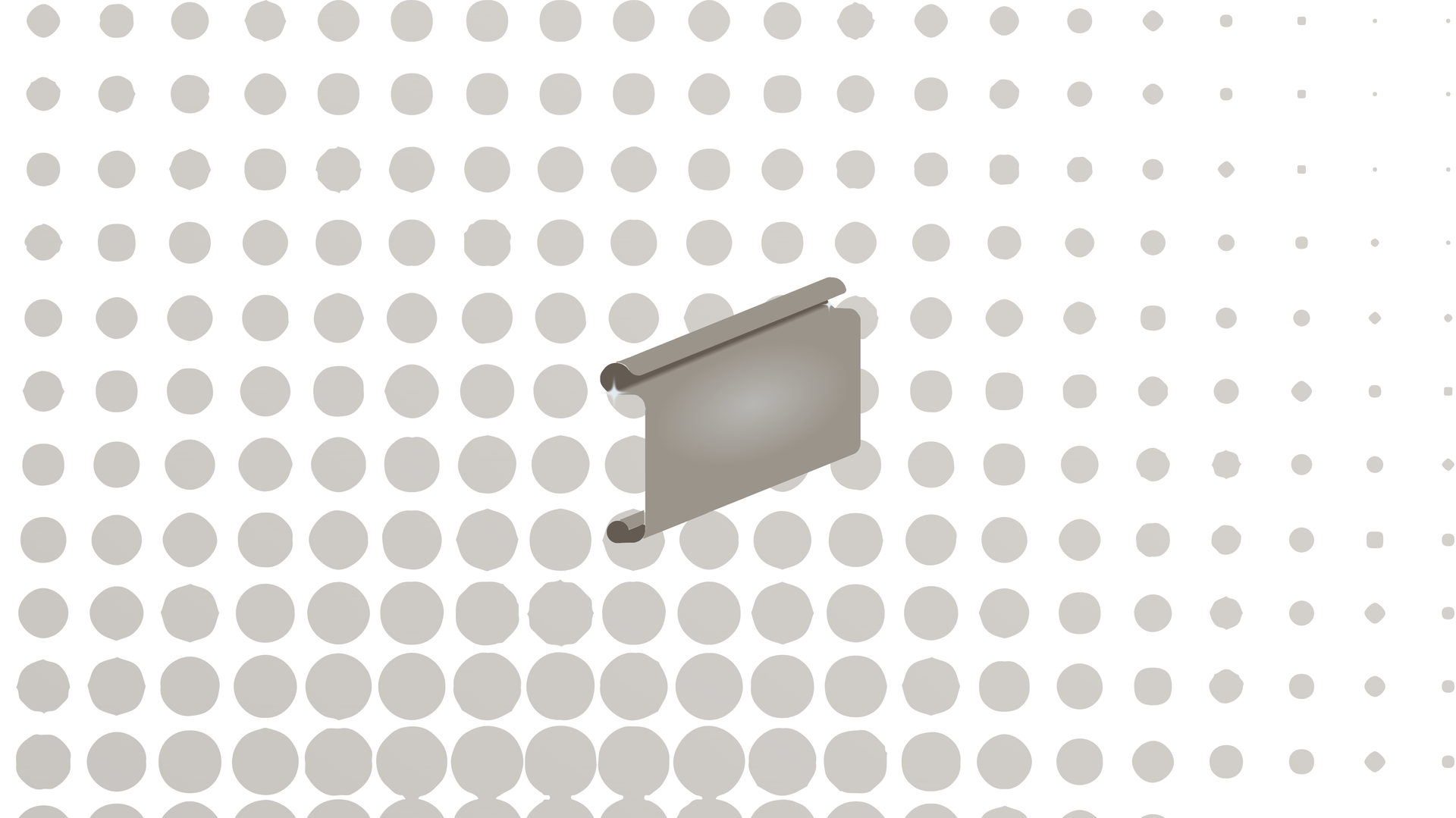

Stainless Steel (-SS)

No. 4 Polish

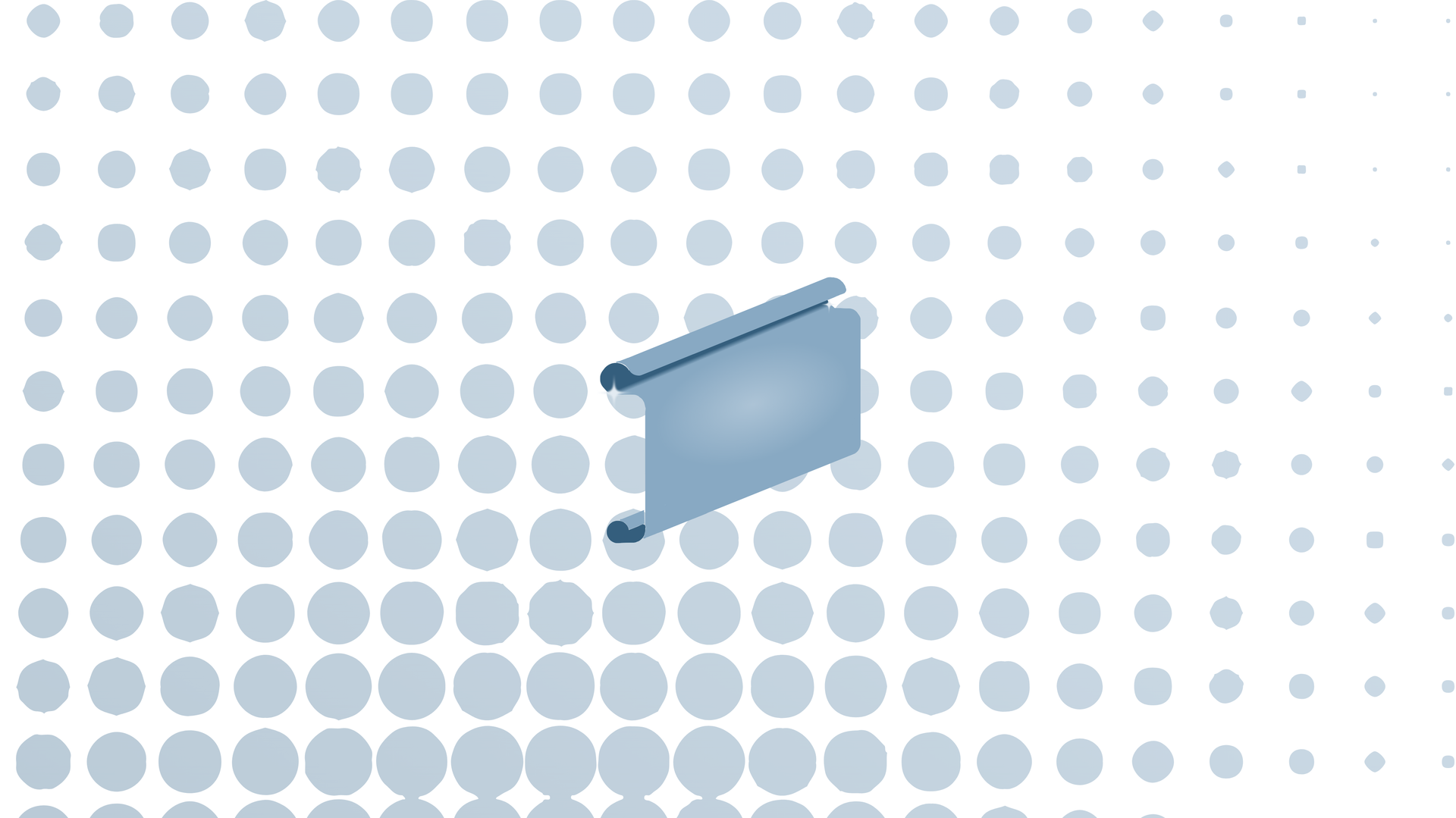

Aluminum (-A)

Clear Anodized

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

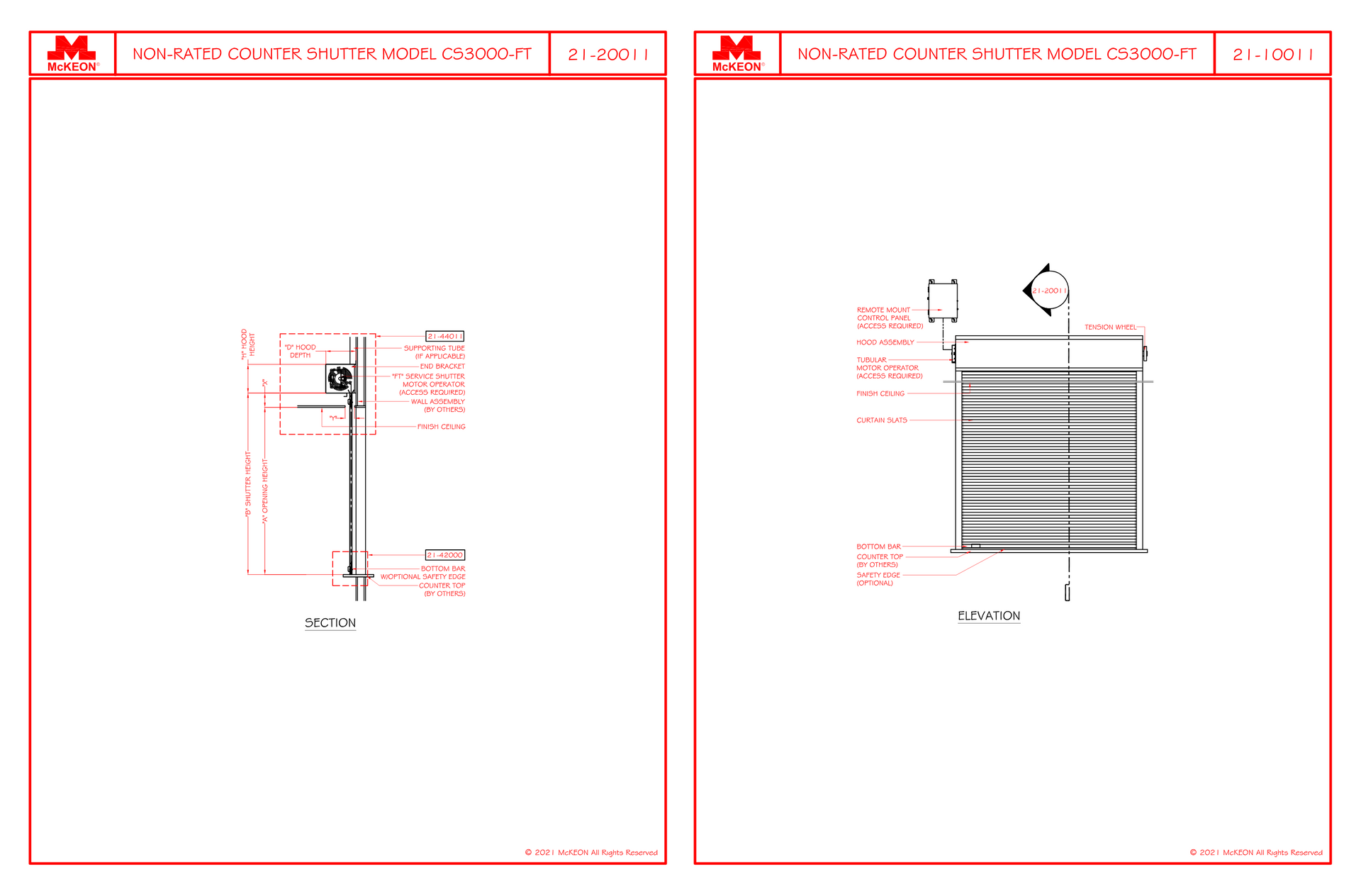

Download our details.

Download individual PDF sheets, CADs and more BELOW.

Download it all.

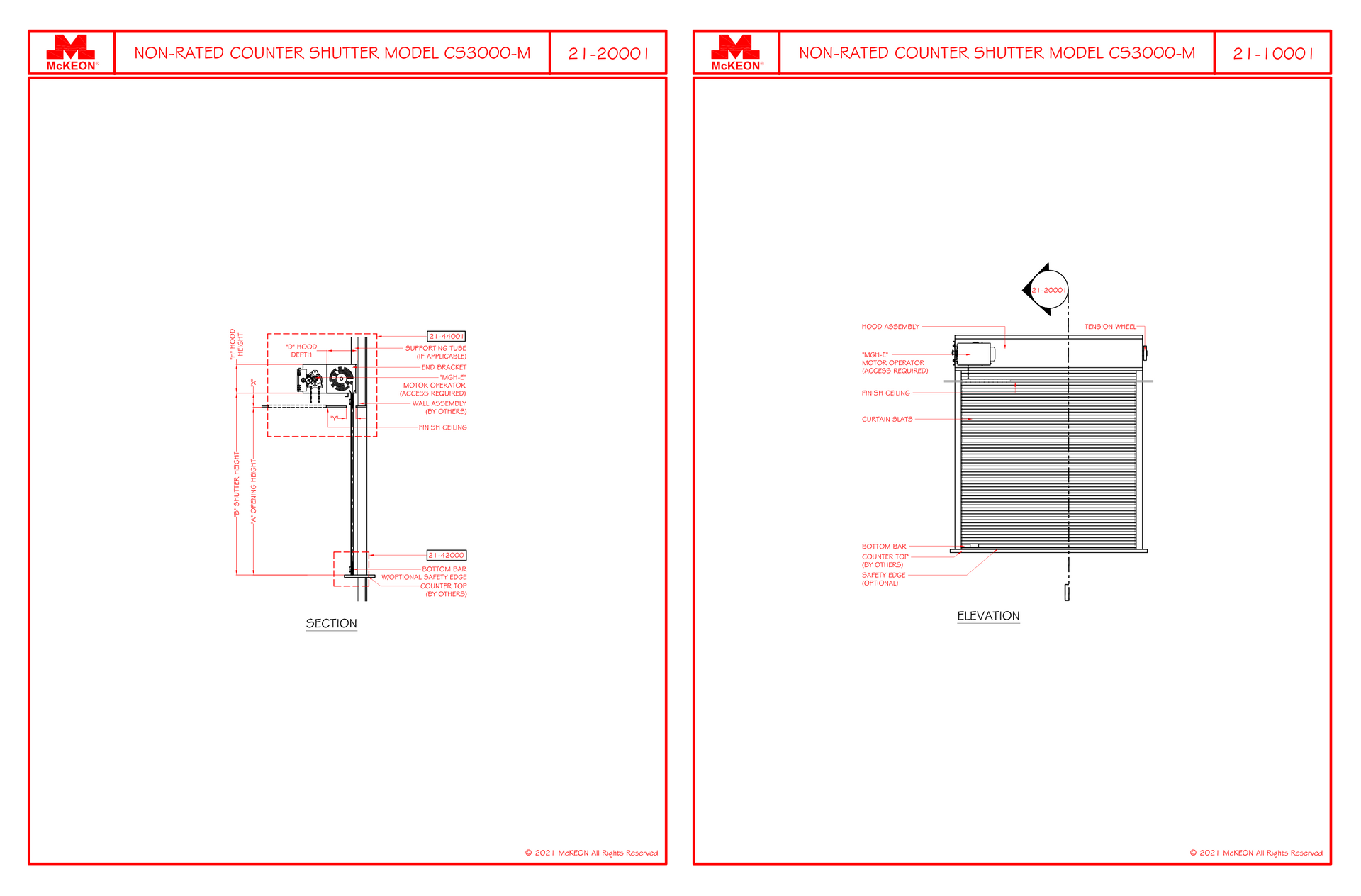

CS3000-M  Spec Kit

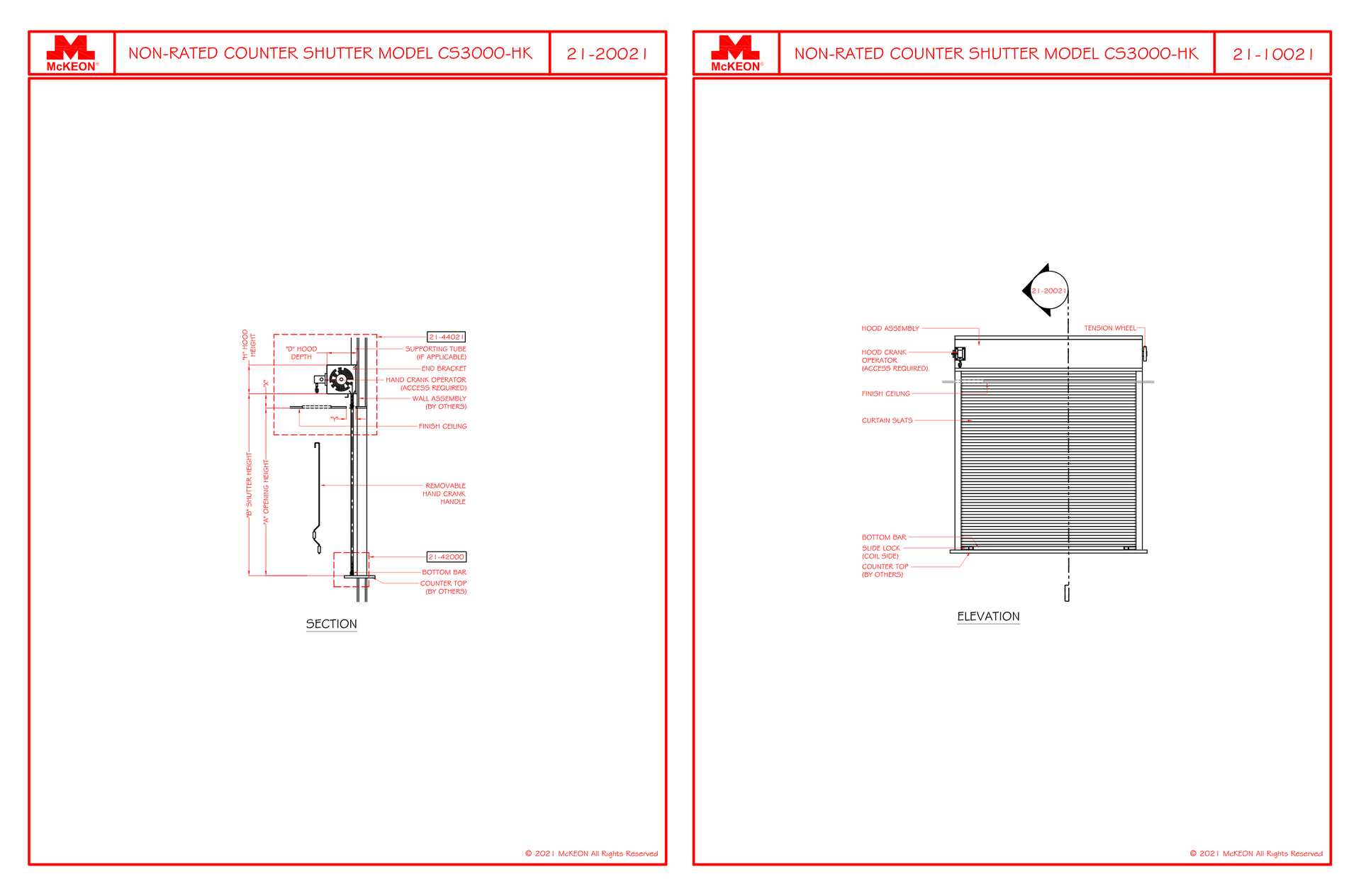

CS3000-HK Spec Kit

CS3000-PP  Spec Kit

CS3000-FT Spec Kit

Already know the

Service Door Series  product you're looking for?

Standard Service Doors

Model IS3000   - Vertical Acting Insulated Security Door

Model SD3000   - Vertical Acting Uninsulated Security Door

Model PF3000 - Vertical Acting Perforated Security Door

Model CS3000  - Vertical Acting Counter Shutter

Side Acting Service Doors

Model SC3000D - Side Coiling Security Door

Model SC3000PF - Side Coiling Perforated Security Door

Model SC3000D-E -  Side Coiling Security Door with Egress

Standard Service Doors

Model HS100   - Horizontal Acting Service Door
