SmokeFighter®  Model D500S

The D500S smoke curtain offers unmatched design flexibility. Without the need for side guides, it can be tailored to fit custom angles or drop from the ceiling for a clean, "corner-less" look. Say goodbye to the constraints of columns.

NO FIRE

RATING

SMOKE

RATED

OVERHEAD

COILING

NO

EGRESS

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

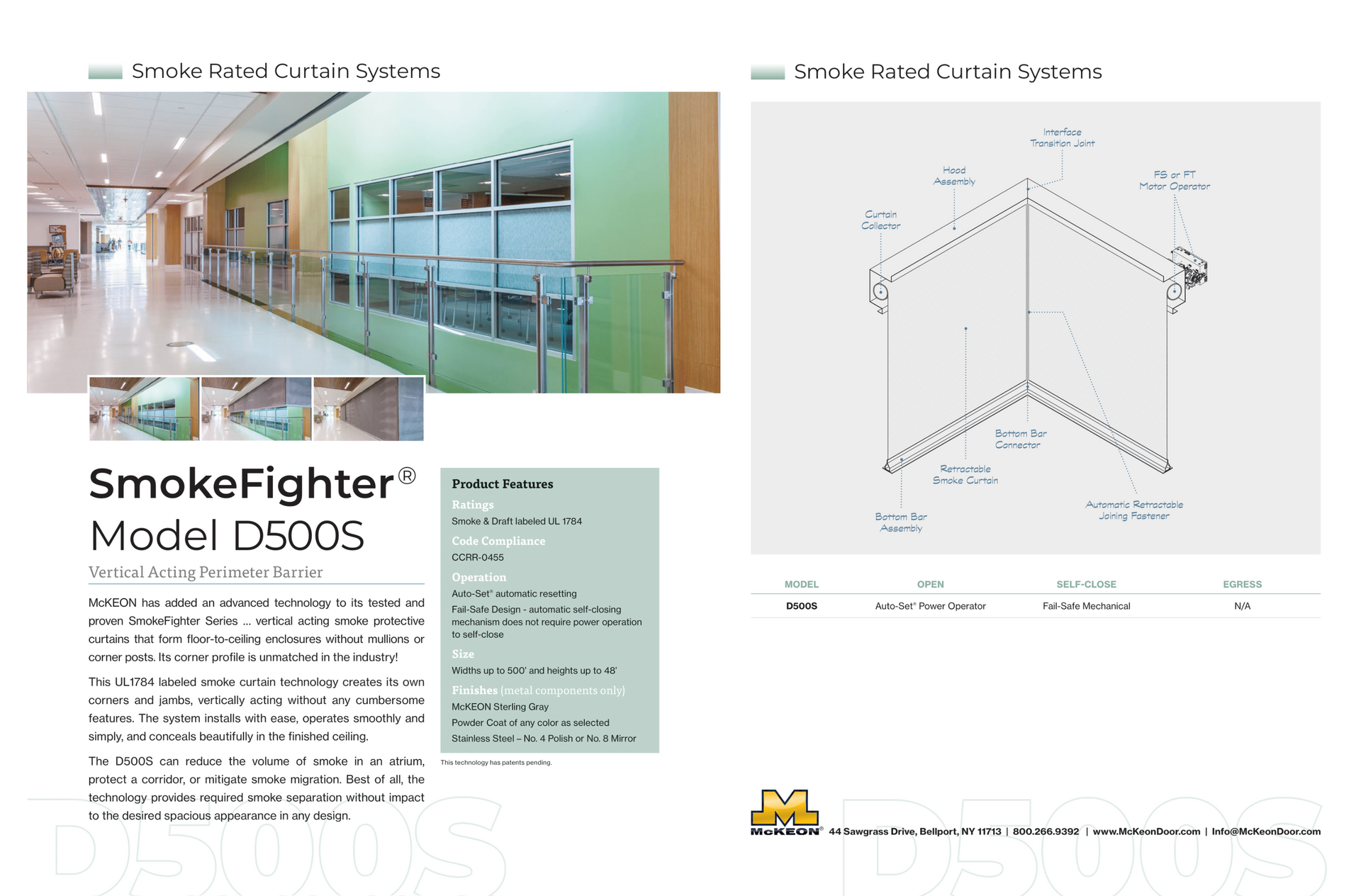

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Get straight to the details. Everything you need all in one click.

Resource Hub

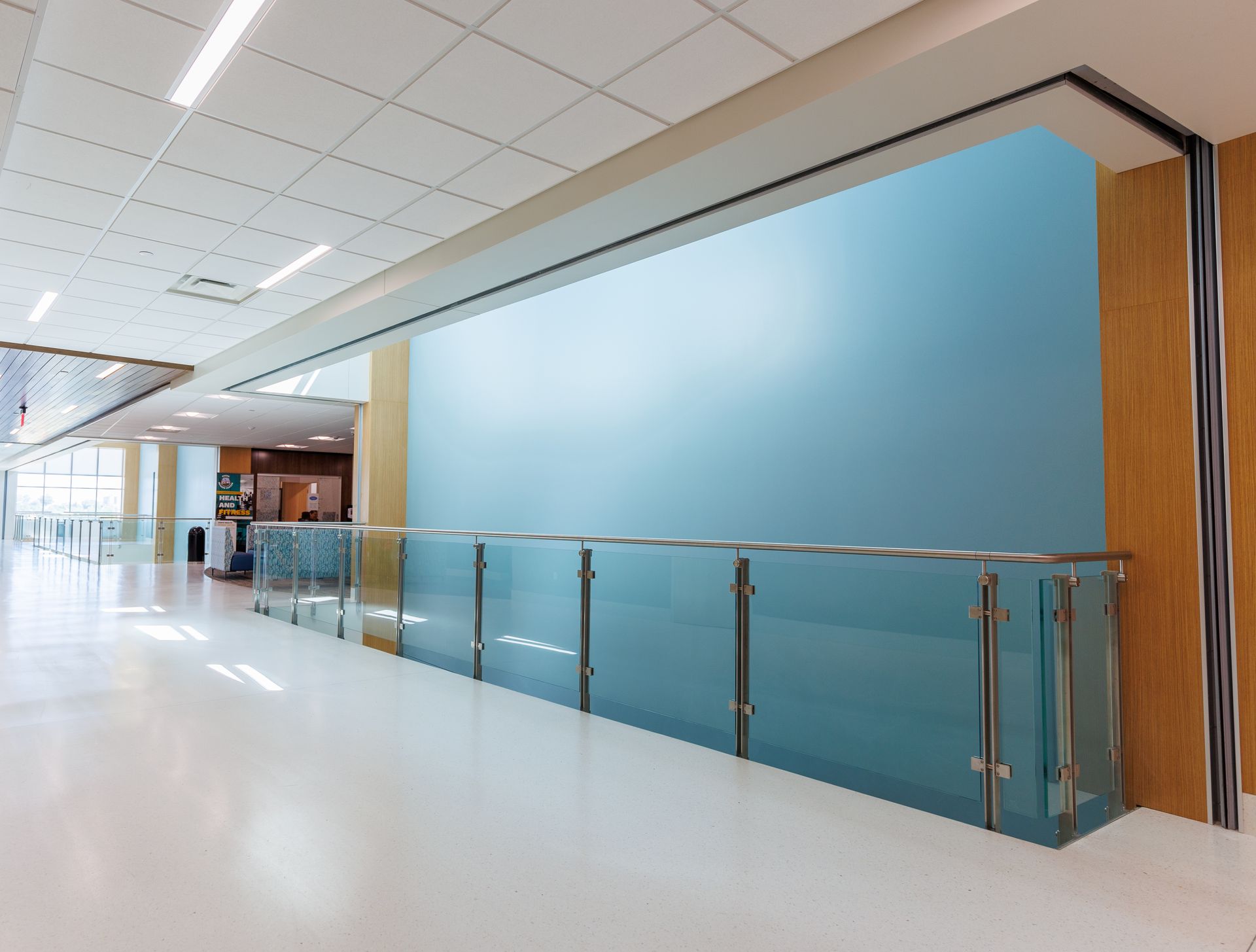

Design without columns.

Stop smoke. Start possibilities.

The D500S is the perfect solution for difficult openings that require a compliant smoke rating. Ideal for locations where head room is limited and traditional posts for side guides are not desired.

The details that matter.

Ratings

• 1784 UL Smoke & Draft Labeled



• No fire rating


Egress

• This product is not available with egress (See Model D150E)

Code Compliance

• Approved material in compliance with draft curtain requirements.


Available Sizes

• Widths to 500'-0"

• Heights to 48'-0"

• For Larger sizes and custom configurations consult the factory

Finishes

• McKEON Sterling Grey
• RAL Powder Coat
• Stainless Steel



• Applies to exposed metal surfaces only

Operation

• Electric Motor Only



• Fail safe design - automatic self closing mechanism does not require power operation to self-close

Download our specs.

Specification Key

-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 color selection from standard colors (download chart here)

-SS = Stainless Steel, No. 4 polish finish

McKeon Sterling Grey (-G)

Standard finish

RAL Powder Coat (-PC)

188 color selection

Stainless Steel (-SS)

No. 4 Polish

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

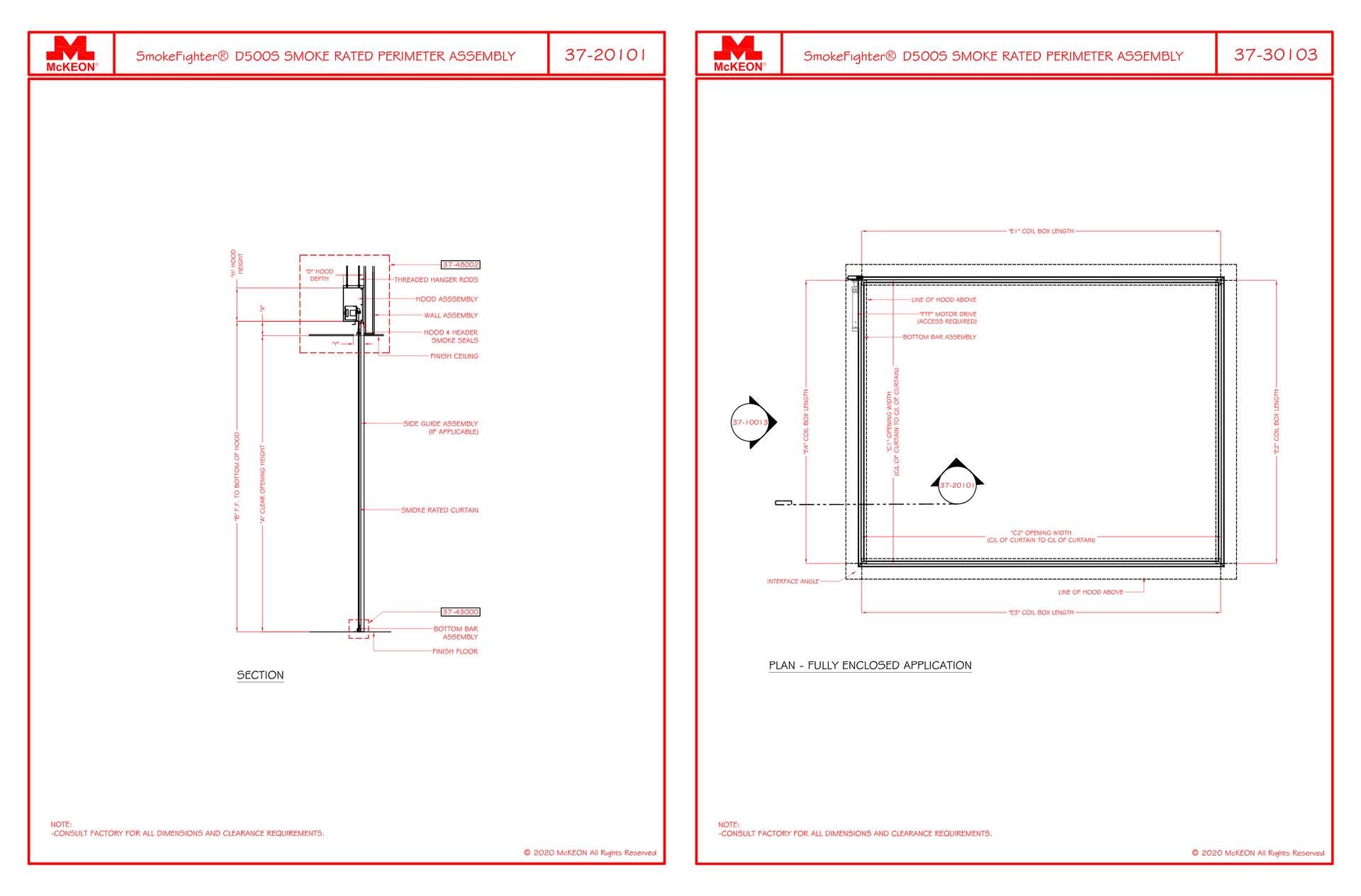

Download our details.

D500S

Details

Download individual PDF sheets, CADs and more BELOW.

Download it all.

D500S Spec Kit
