Safescape® Model S9000

 Fire protection with a way out. The Model S9000 combines compact side-coiling technology with an integrated swing door for safe egress. Built for tight spaces, designed for easy exits.

FIRE

RATED

SMOKE

RATED

SIDE

COILING

EGRESS

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Resource Hub

Get straight to the details. Everything you need all in one click.

Safety redefined.

Safety in mind. Built for egress.

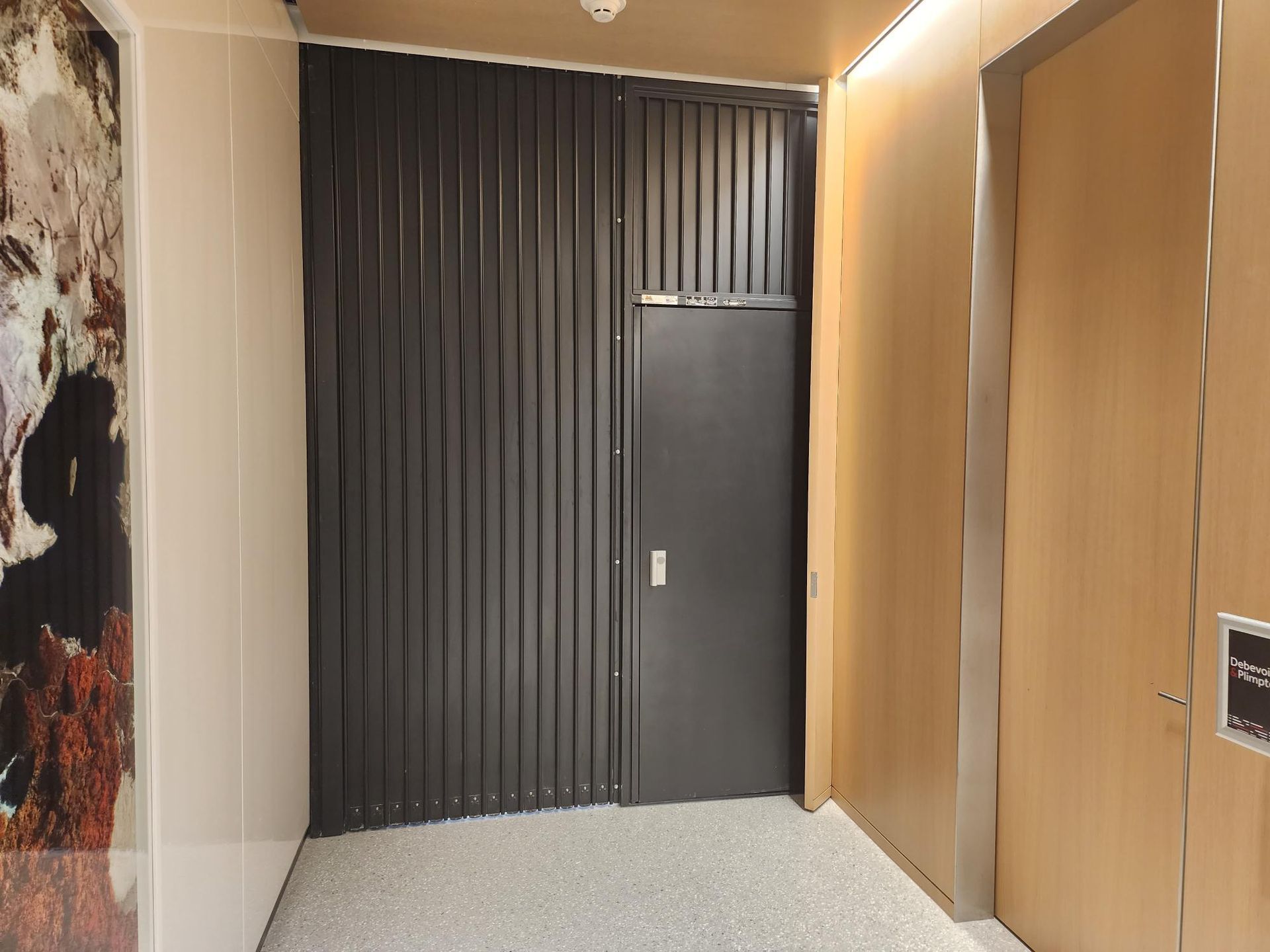

The S9000 is designed with built-in egress. Discreetly sitting in a coil box along the side of the opening, it deploys when headroom and side room are limited, creating seamless fire separation and safe exits when needed.

The details that matter.

Ratings

• 1-3 hr UL10B
• 1784 UL Smoke & Draft Labeled

Egress

• Single or multiple fixed complying egress doors available when required

Radius

• Negotiates 3'-0" curve with egress doors
• 1'-6" without without egress

Available Sizes

• Widths to 80'-0"
• Bi-parting 160'-0"



• Heights to 24'-0"

• For Larger sizes and custom configurations consult the factory

Finishes

• McKEON Sterling Grey
• RAL Powder Coat
• Stainless Steel

Operation

• Electric Motor Only



• Fail safe design - automatic self closing mechanism does not require power operation to self-close

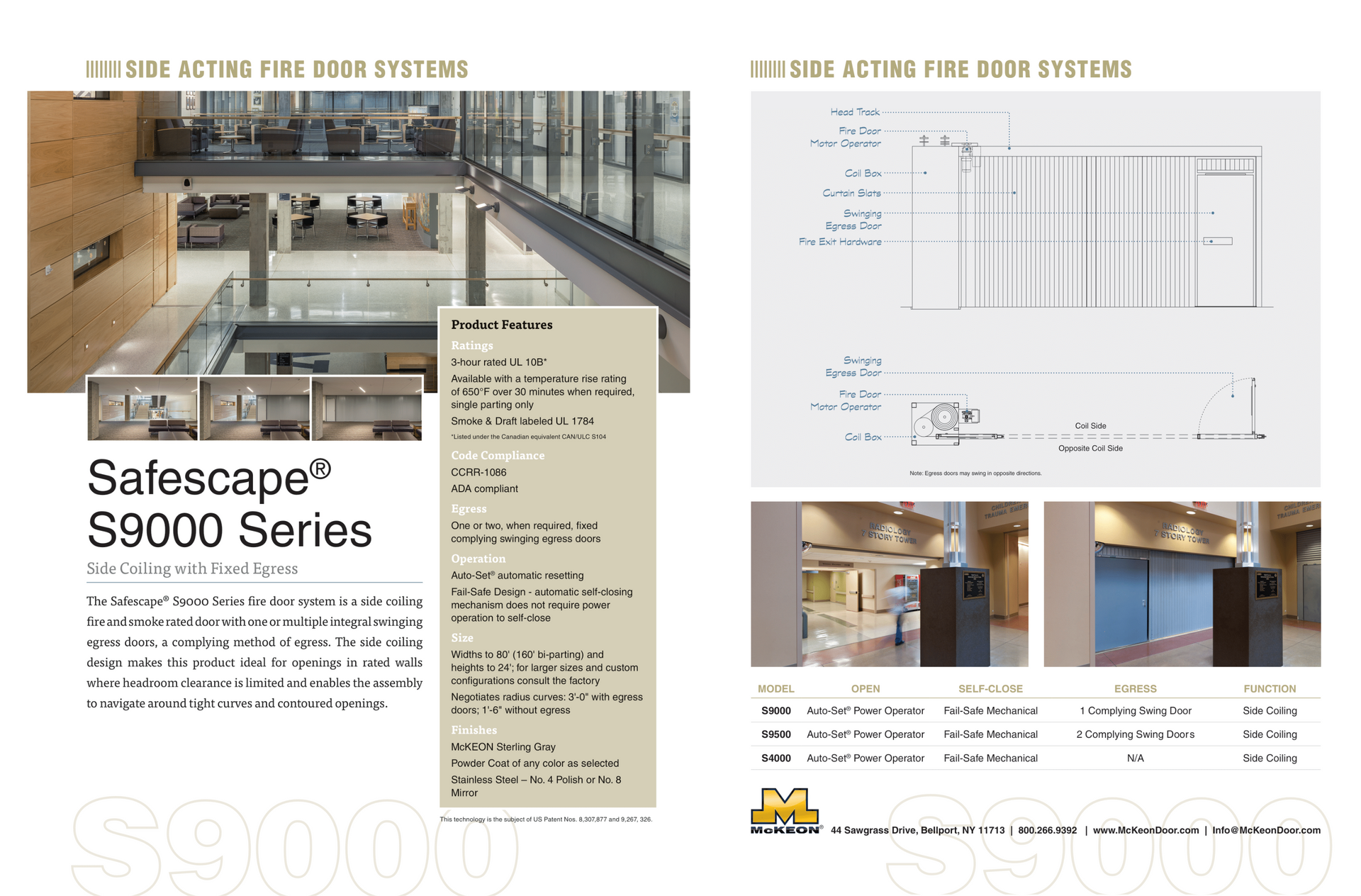

Download our specs.

Specification Key

-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 color selection from standard colors (download chart here)

-SS = Stainless Steel, No. 4 polish finish

McKeon Sterling Grey (-G)

Standard finish

RAL Powder Coat (-PC)

188 color selection

Stainless Steel (-SS)

No. 4 polish

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

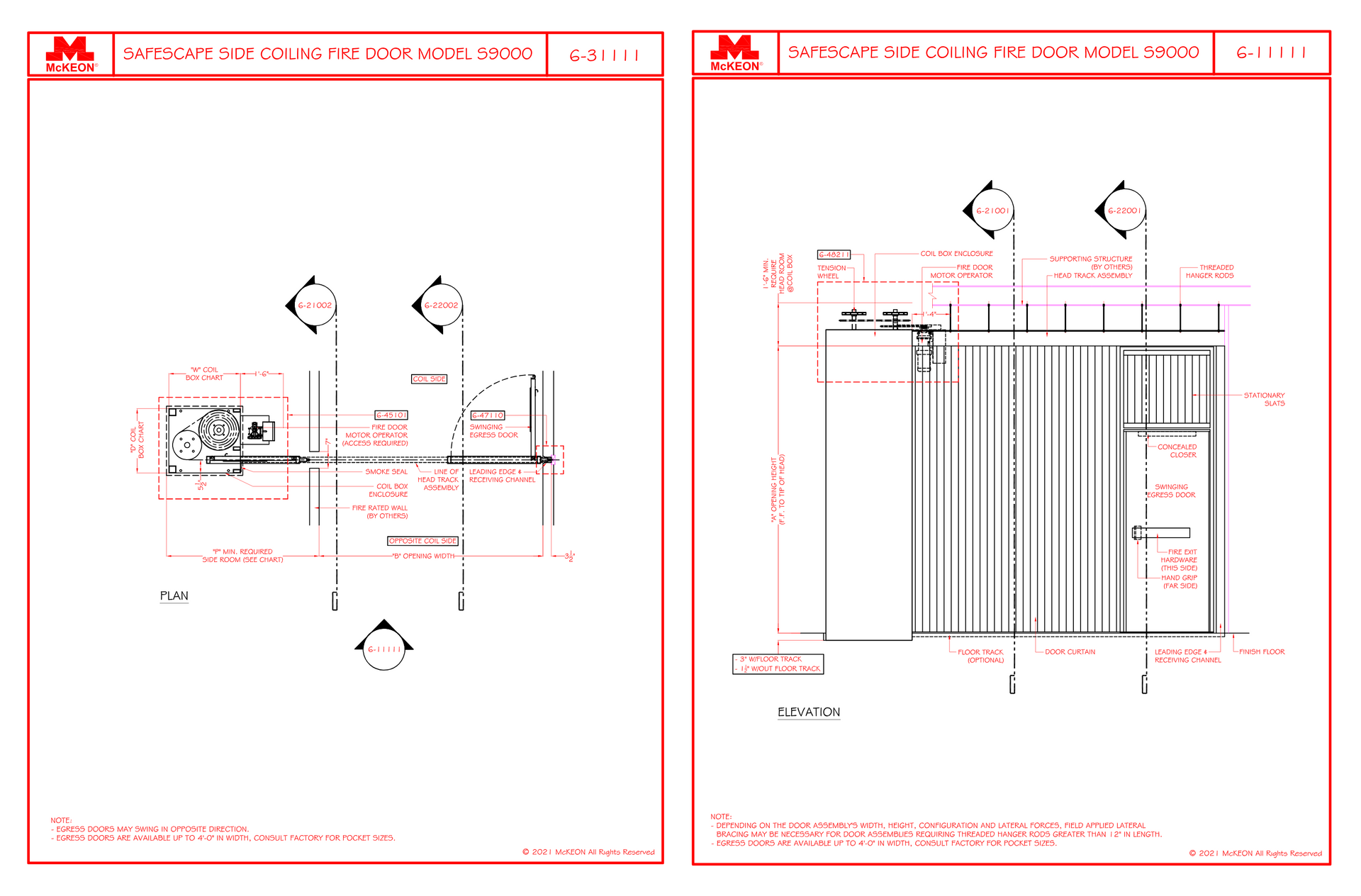

Download our details.

Download individual PDF sheets, CADs and more BELOW.

Download it all.

S9000 Spec Kit

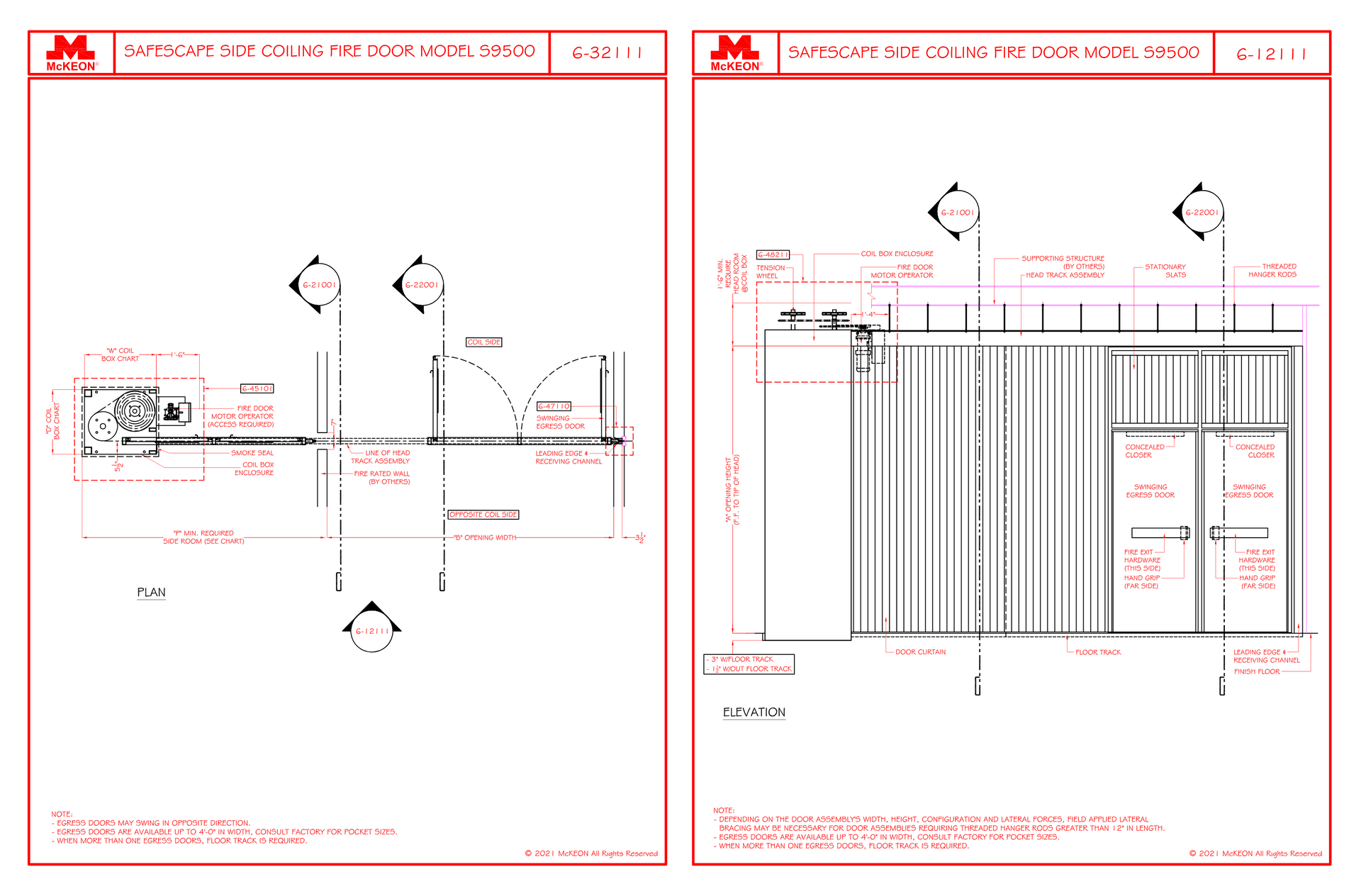

S9500 Spec Kit

Already know the

Auto-Set® Side Coiling product you're looking for?

Side Coiling Fire Door

Model S4000 - Side Coiling Without Egress

Coiling Fire Door with Egress

Model S9000  - Side Coiling with (1) Egress Door

Model S9500 - Side Coiling with (2) or more Egress Doors
