Auto-Set®  Model FSFD

Engineered for tight overhead clearances and versatile enough for both small and expansive openings. Reliable fire separation, no matter the size or design.

FIRE

RATED

SMOKE

RATED

OVERHEAD

COILING

NO

EGRESS

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Get straight to the details. Everything you need all in one click.

Resource Hub

Versatility meets fire protection.

Endless possibilities. Endless protection.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500

The details that matter.

Ratings

• 1-4 hr UL10B
• 1784 UL Smoke & Draft Labeled
• 90-minute rated assembly available with a 650° F over 30 minutes
• Temperature Rise rating when required (see Model FSFD-TR)

Egress

Not available with this product line

(see Model T5000, or Model T2500 if egress is needed)

Operation

• Electric Motor Operation - Outboard Motor
• Electric Motor Operation - Inboard Tubular
• Hand Crank

• Fail safe design - automatic self closing mechanism does not require power operation to self-close


Special Features

• Temperature Rise (FSFD-TR)
• Insulated (FSFD-IS)
• STC Rating (FSFD-STC)

Available Sizes

• Widths up to 80'-0"

• Unlimited heights

• For larger sizes and custom configurations consult the factory



Finishes

• McKEON Sterling Grey
• RAL Powder Coat
• Stainless Steel

Download our specs.

Operation

-M = Outboard Electric Motor Operator

-HC = Manual Hand Chain

-HK = Manual Hand Crank

Finish

-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 standard colors

-SS = Stainless Steel, No. 4 polish finish

McKeon Sterling Grey (-G)

Standard finish

RAL Powder Coat (-PC)

188 color selection

Stainless Steel (-SS)

No. 4 Polish

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

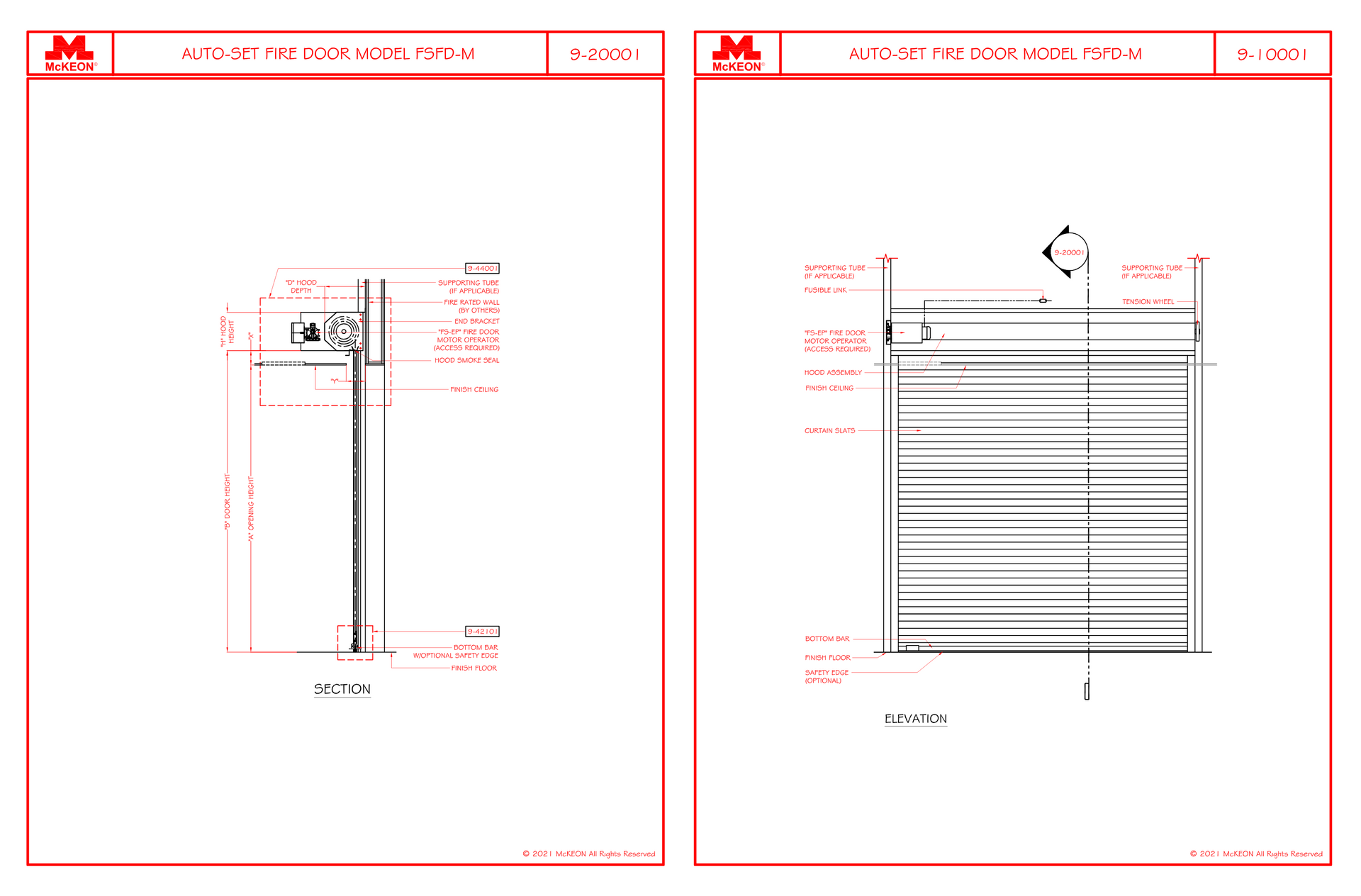

Download our details.

Looking For Additional Details?

Model FSFD-IS

Insulated Vertical Acting Fire Doors

Model FSFD-STC

Acoustical Rated Vertical Acting Fire Doors

Model FSFD-TR

Temperature Rise Rated Vertical Acting Fire Doors

Download individual PDF sheets, CADs and more BELOW.

Download it all.

FSFD-M Spec Kit

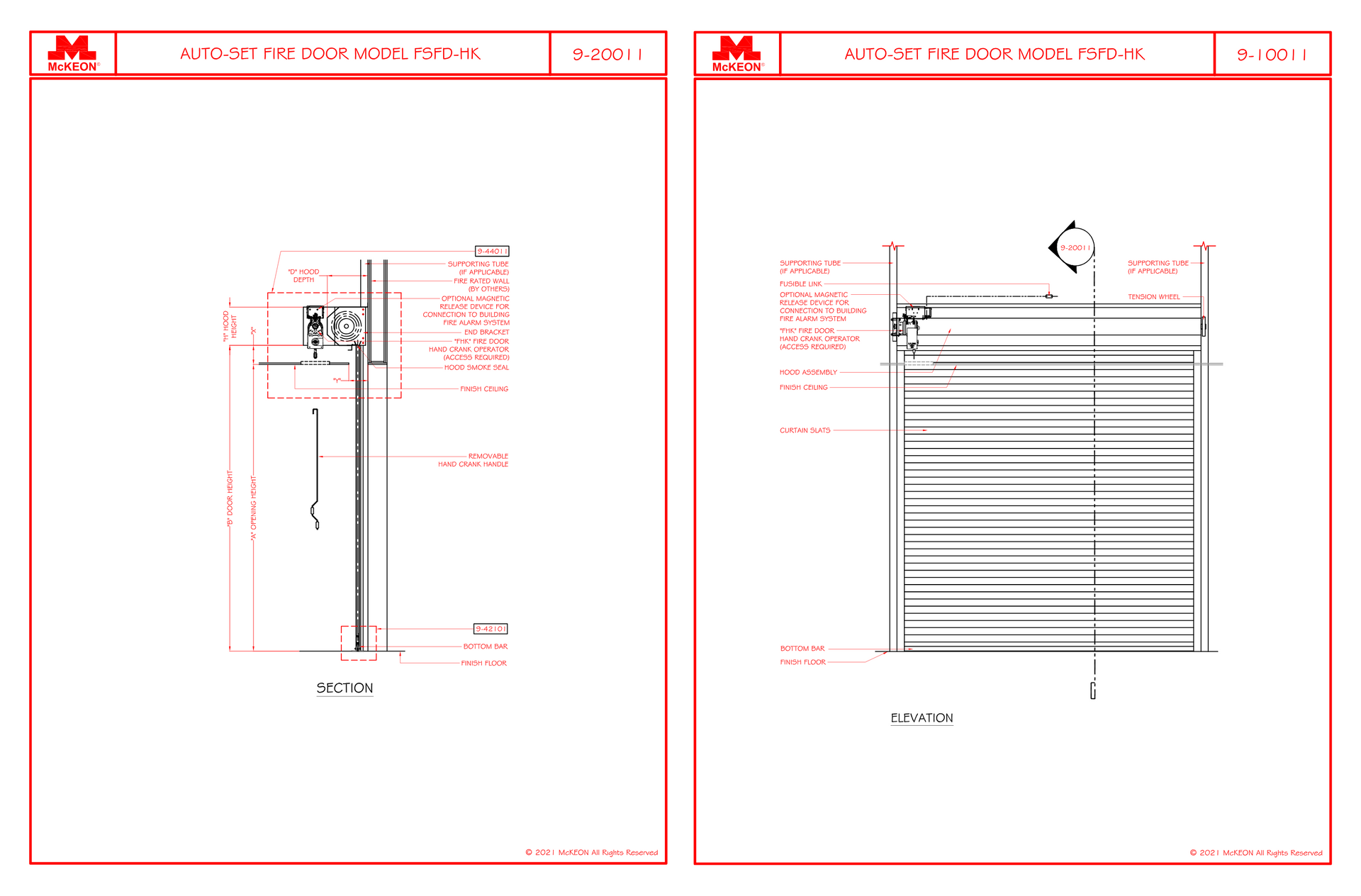

FSFD-HK  Spec Kit

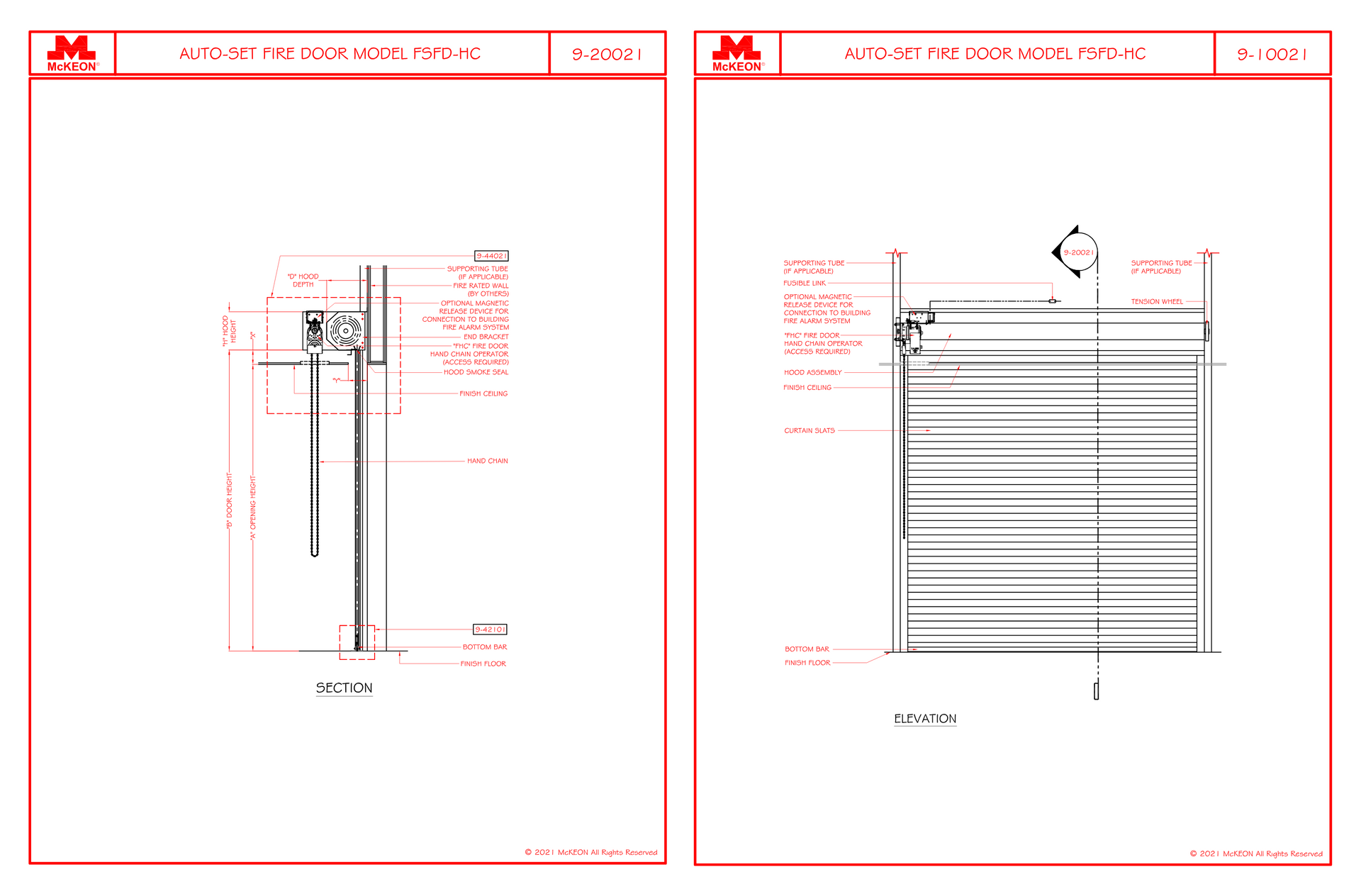

FSFD-HC  Spec Kit

Auto Set® FSFD

Think Big. Design Bigger.

Already know the

Auto-Set® FSFD Series product you're looking for?

Standard Fire Doors

Model  FSFD - Vertical Acting Fire Doors

Model FSFD-IS - Insulated Vertical Acting Fire Doors

Specialty Rated Fire Doors

Model  FSFD-STC - Acoustical Rated Vertical Acting Fire Doors

Model FSFD-TR - Temperature Rise Rated Vertical Acting Fire Doors
