ClimateGuard™  IS3000 Series

The IS3000 Series delivers unmatched flexibility for exterior applications. From standard insulation to deep slats offering maximum thermal and sound performance, it’s the all-in-one solution for security and climate control.

NO FIRE

RATING

NO SMOKE

RATING

OVERHEAD

COILING

EGRESS

OPTIONAL

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Get straight to the details. Everything you need all in one click.

Resource Hub

Strength in versatility.

Weather any challenge. Guard what matters most.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500

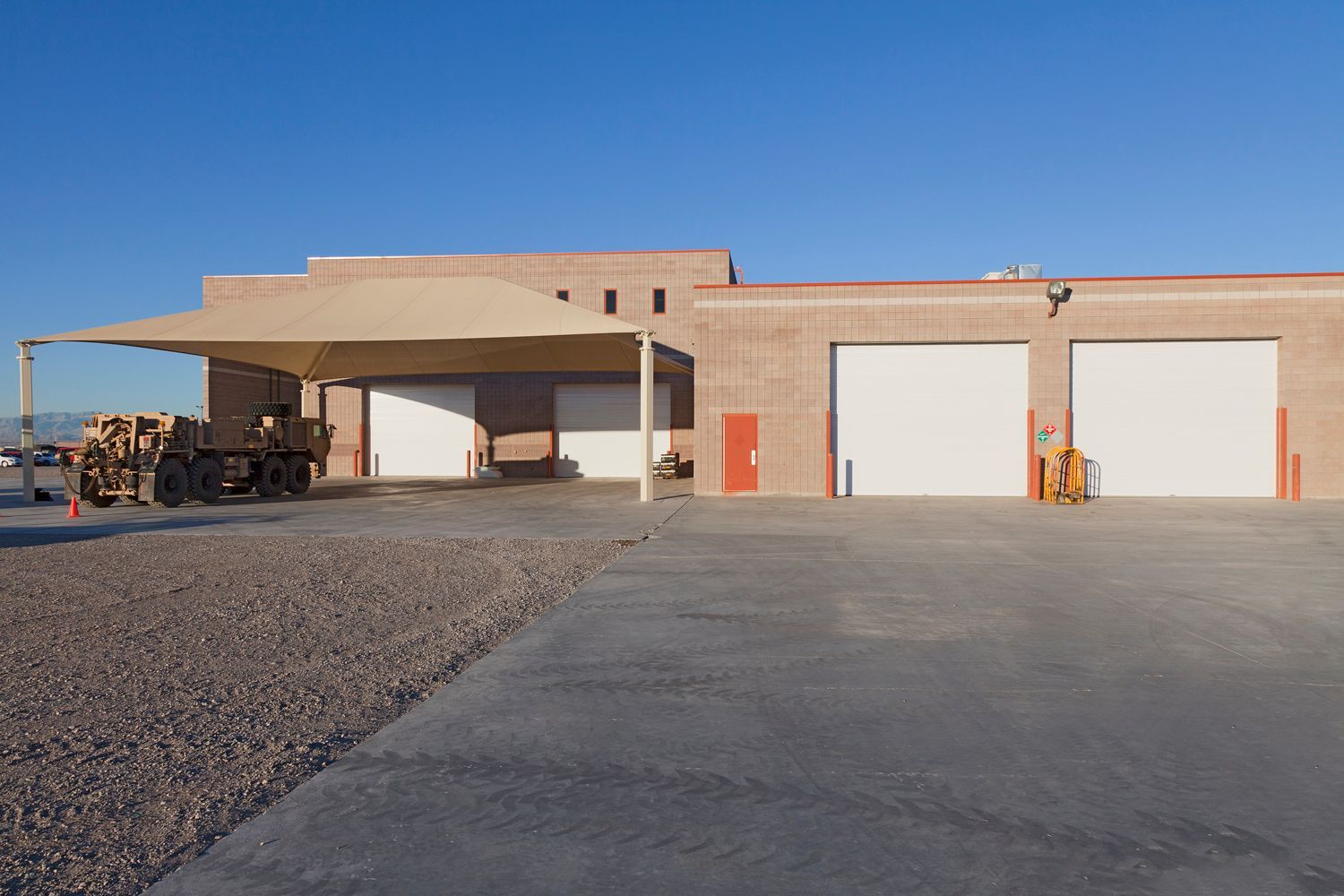

National Guard

Nevada

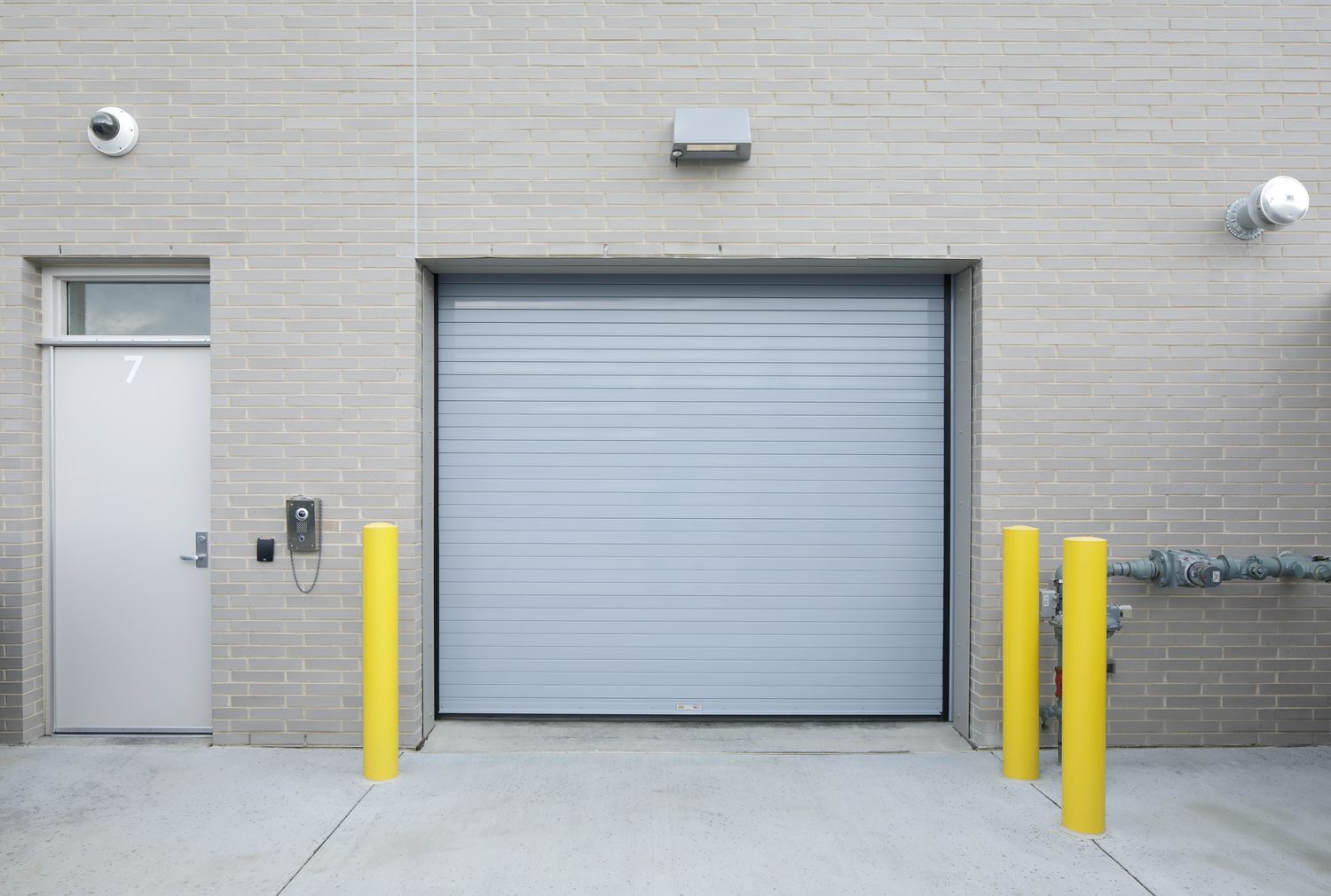

Field Elementary School

Chicago, IL

The details that matter.

Ratings


Egress

See IS3000E below if egress is needed.

Operation

  • Electric Motor Operation - Outboard Motor
  • Electric Motor operation - Direct Drive Motor (ADF)
  • Manual - Hand Chain (HC)


  • Fail safe motor operator available (see Model FSFD-IS)

R Value

  • IS Profile R = 6.25
  • IH Profile R = 8.00
  • ID Profile R = 9.38
  • IA Profile R = 8.00



  • See slat profiles below

Available Sizes

  • Widths up to 70'-0"
  • Unlimited heights


  • For larger sizes and custom configurations consult the factory


Finishes

  • McKeon Sterling Grey
  • RAL Powder Coat
  • Stainless Steel (No. 4 Polish)
  • Aluminum (clear anodized)

Download our specs.

Operation

-M = Outboard Electric Motor Operator

-HC = Manual Hand Chain

-ADF = Direct Drive Operator

-E = 1-2 deployable egress door(s)

Finish

-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 standard colors

-SS = Stainless Steel, No. 4 polish finish

-A = Clear Anodized Aluminum

McKeon Sterling Grey (-G)

Standard Finish (22 G.)

RAL Powder Coat (-PC)

188 color selection (22 G.)

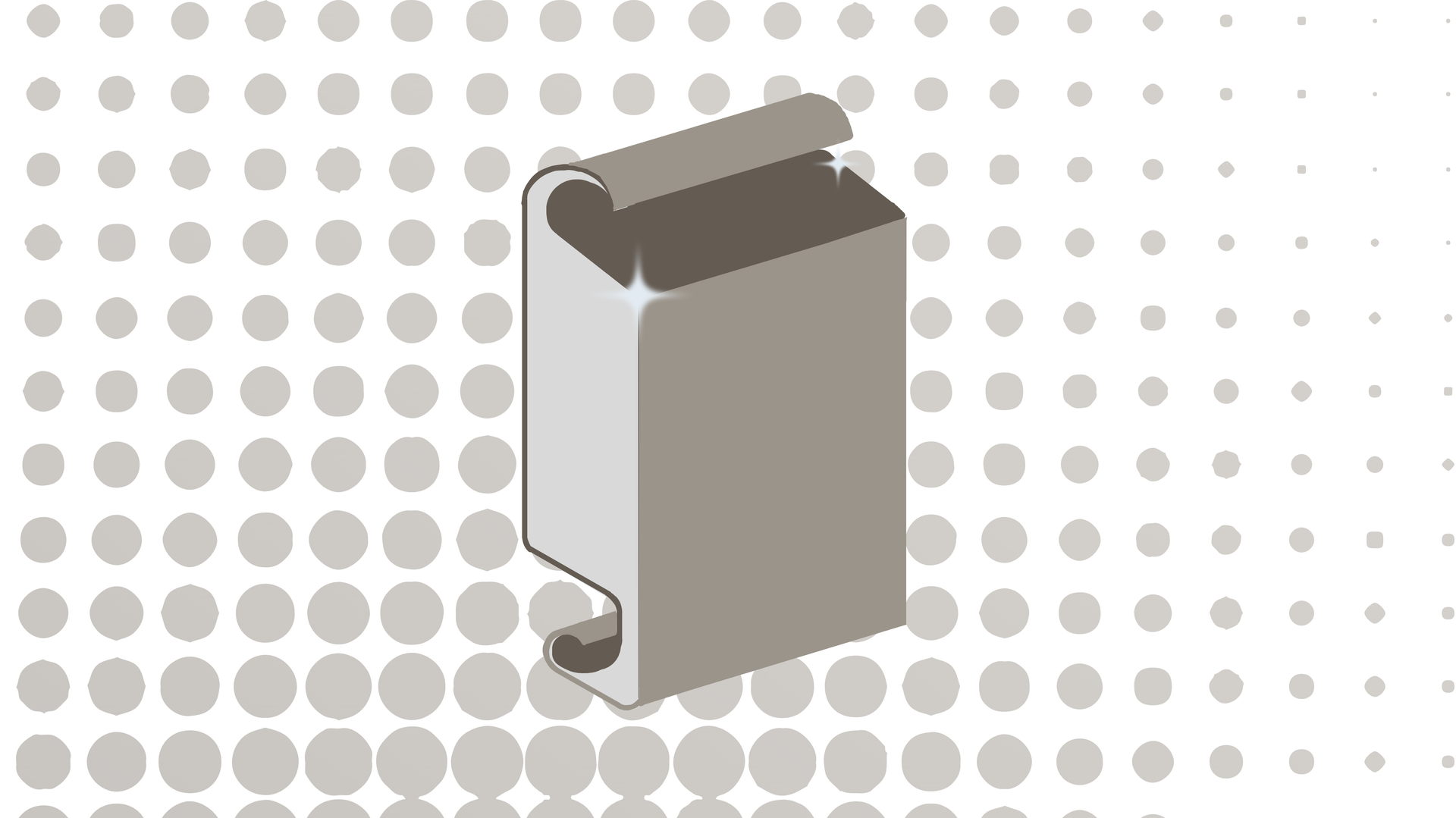

Stainless Steel (-SS)

No. 4 Polish (22 G.)

Aluminum (-A)

Clear Anodized (14 G.)

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

Customize your slat profile.

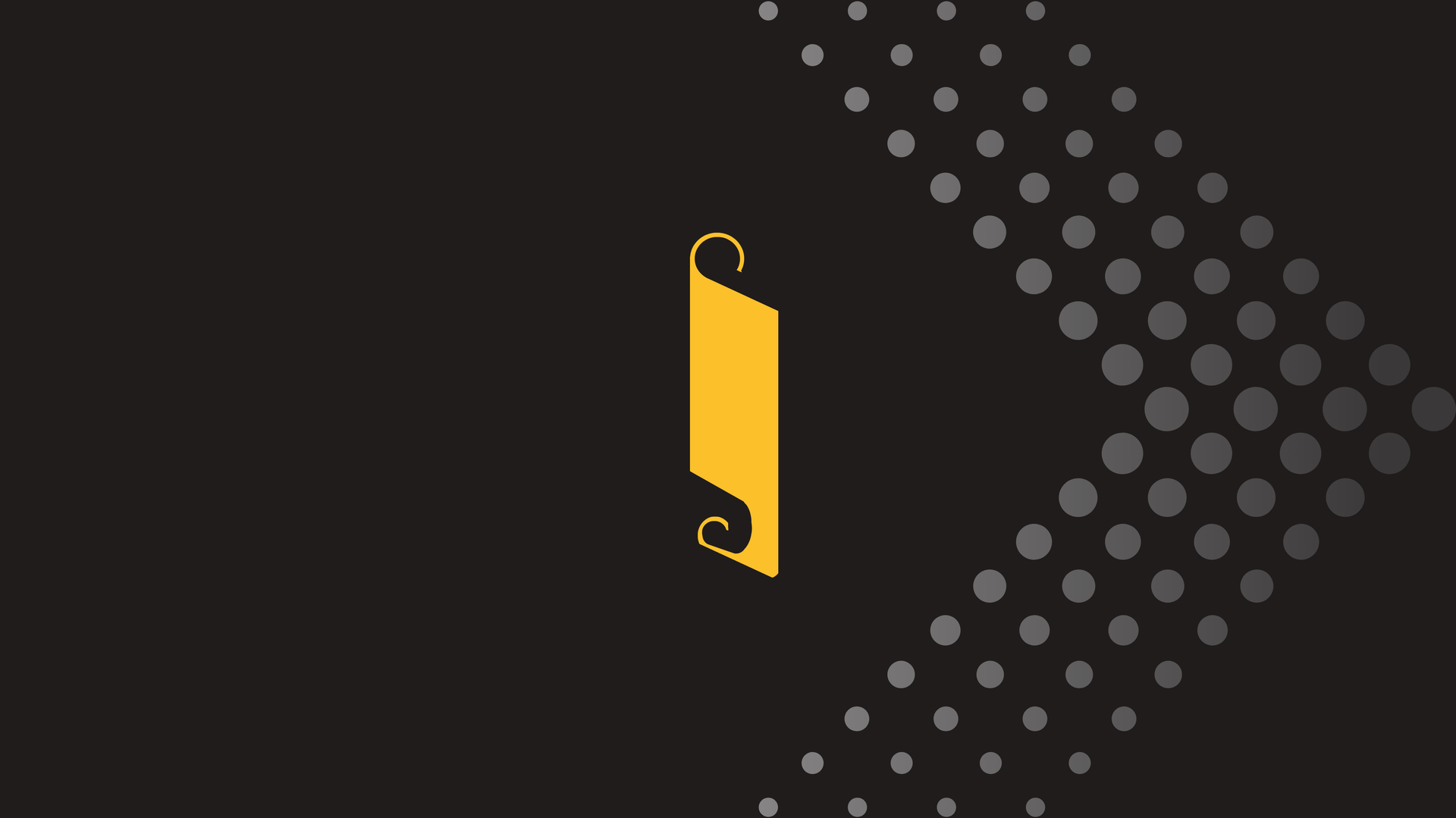

IS  Profile


Front Panel: 22 GA.

Back Panel: 22 GA.

R= 6.25 | STC 28

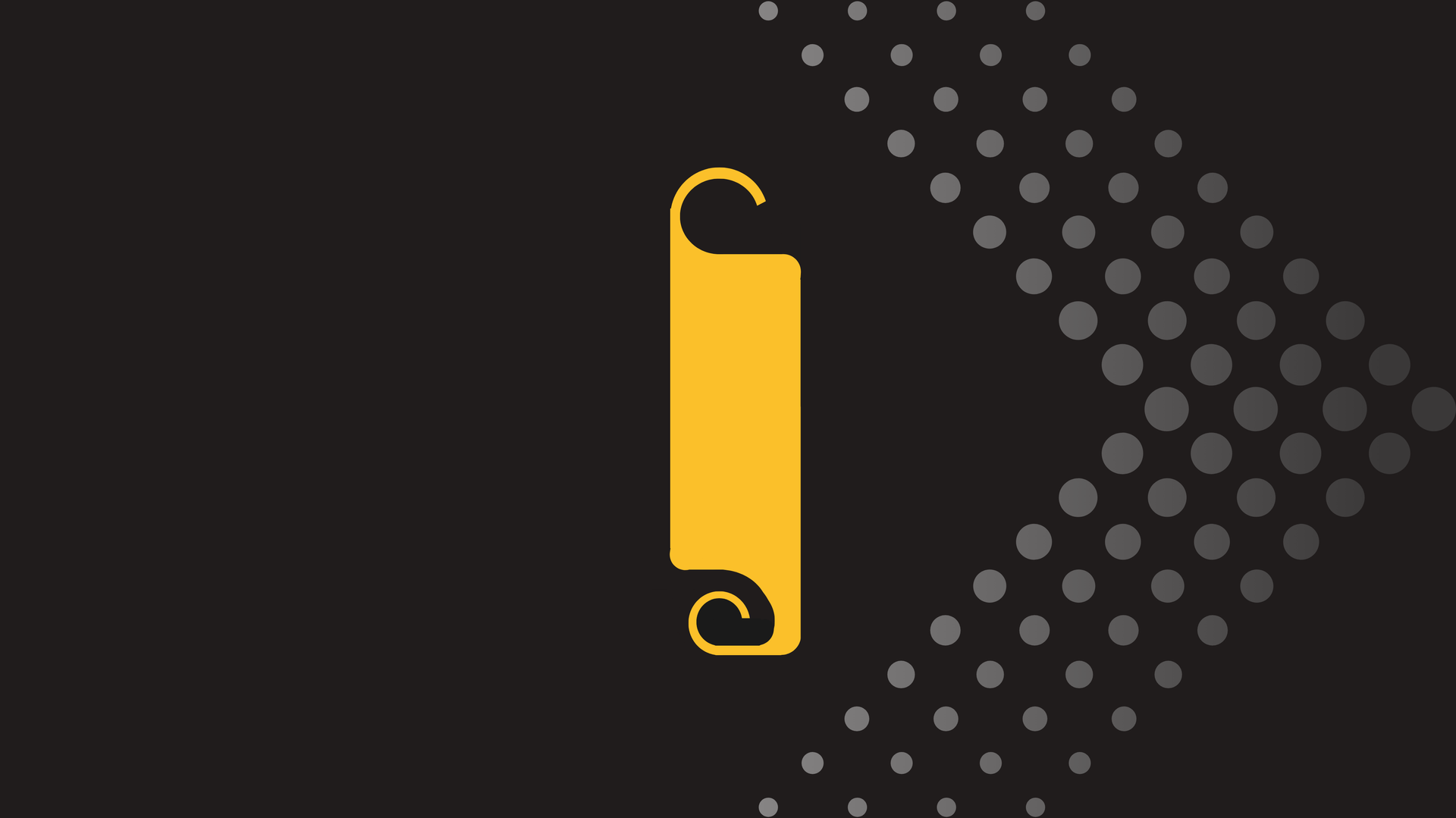

IH  Profile


Front Panel: 16, 18 OR 20 GA.

Back Panel: 18, 20 OR 22 GA.

R= 8.00 | STC 30

ID  Profile


Front Panel: 16, 18 OR 20 GA.

Back Panel: 18, 20 OR 22 GA.

R= 9.38 | STC 34

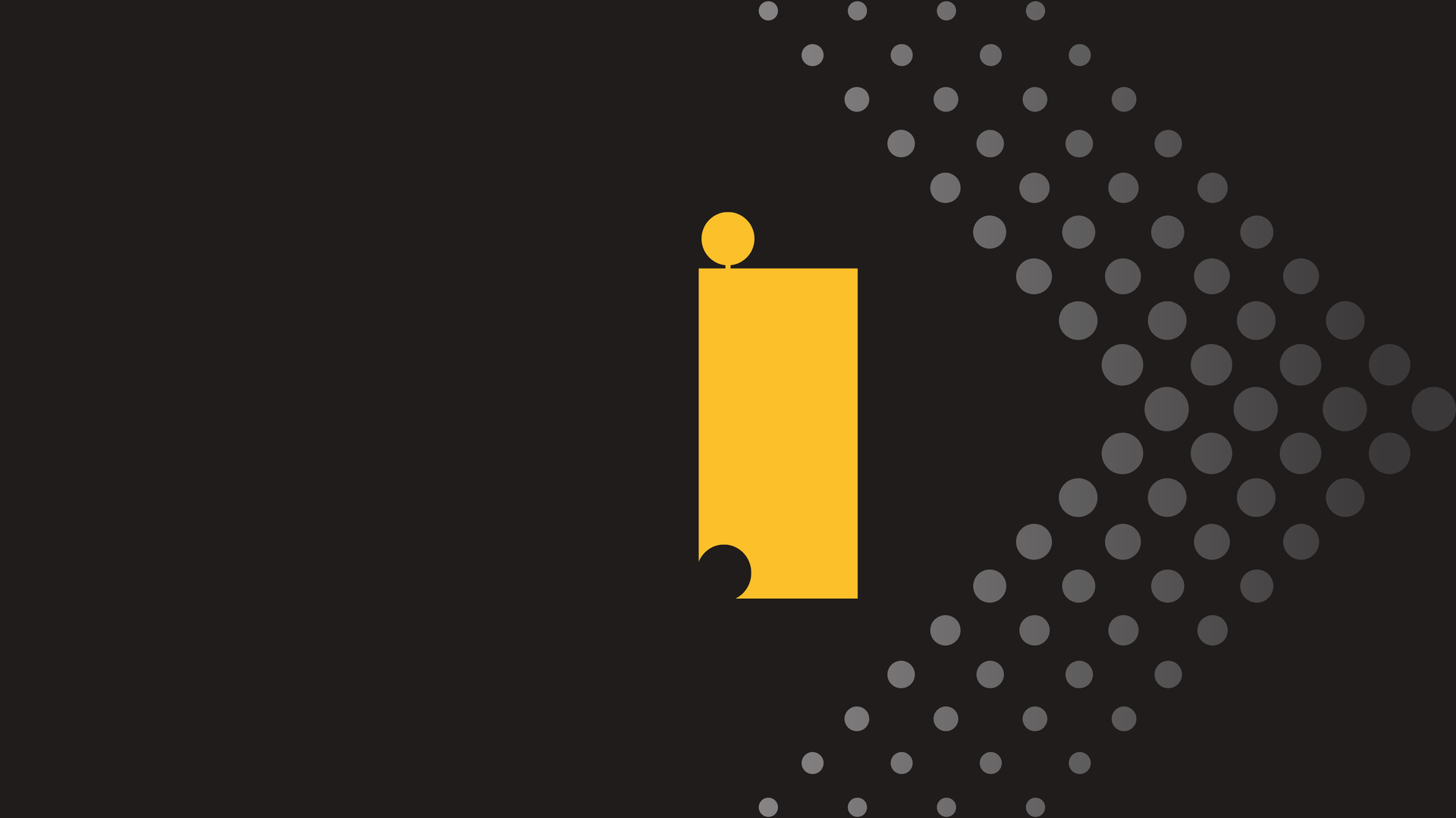

IA Profile



Front Panel: 14 GA

Back Panel:  14 GA

R= 8.00

Download our details.

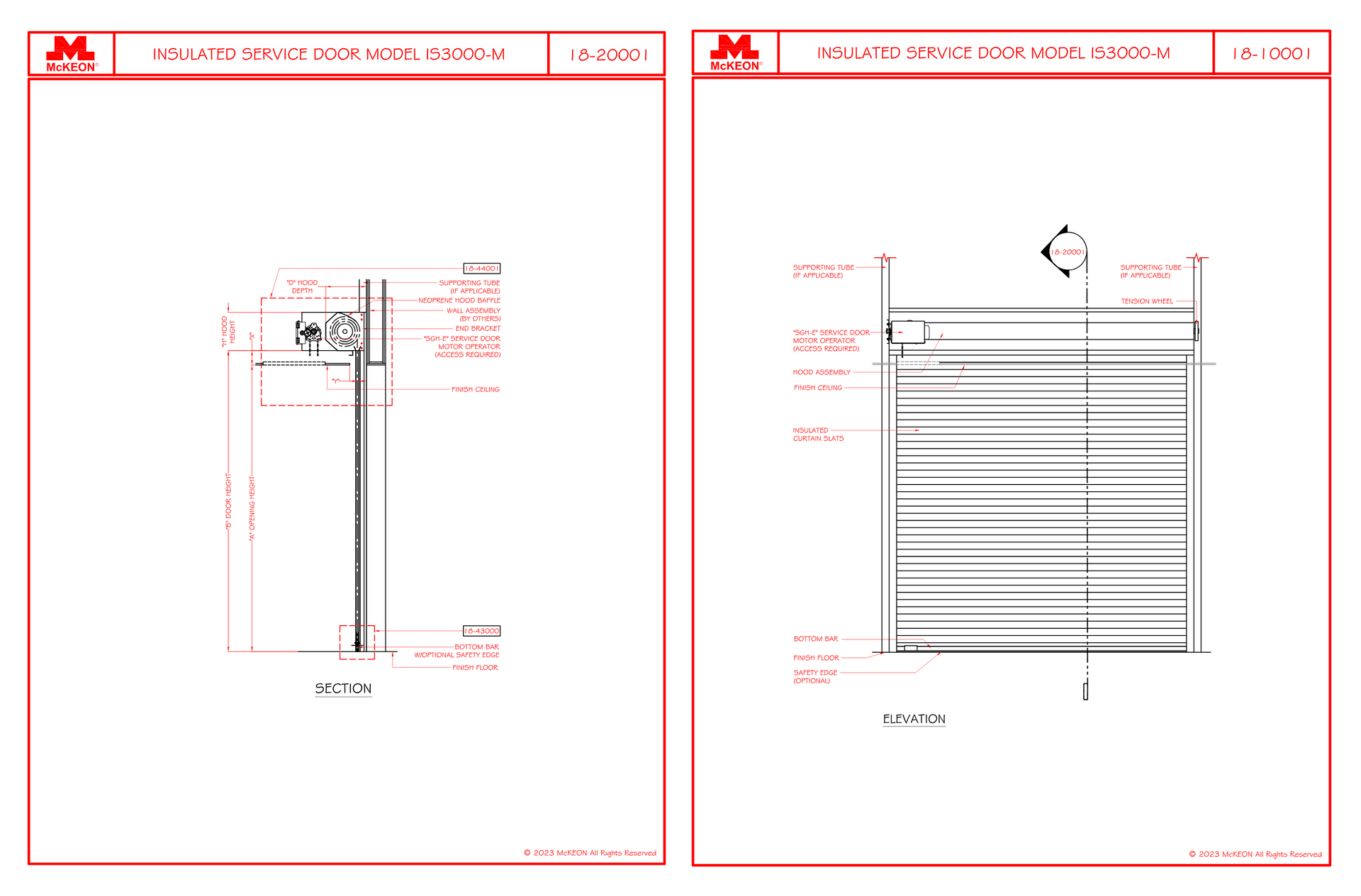

IS3000-M Details

  • Overhead Coiling
  • Electric Motor Operation - Outboard Motor
  • No egress

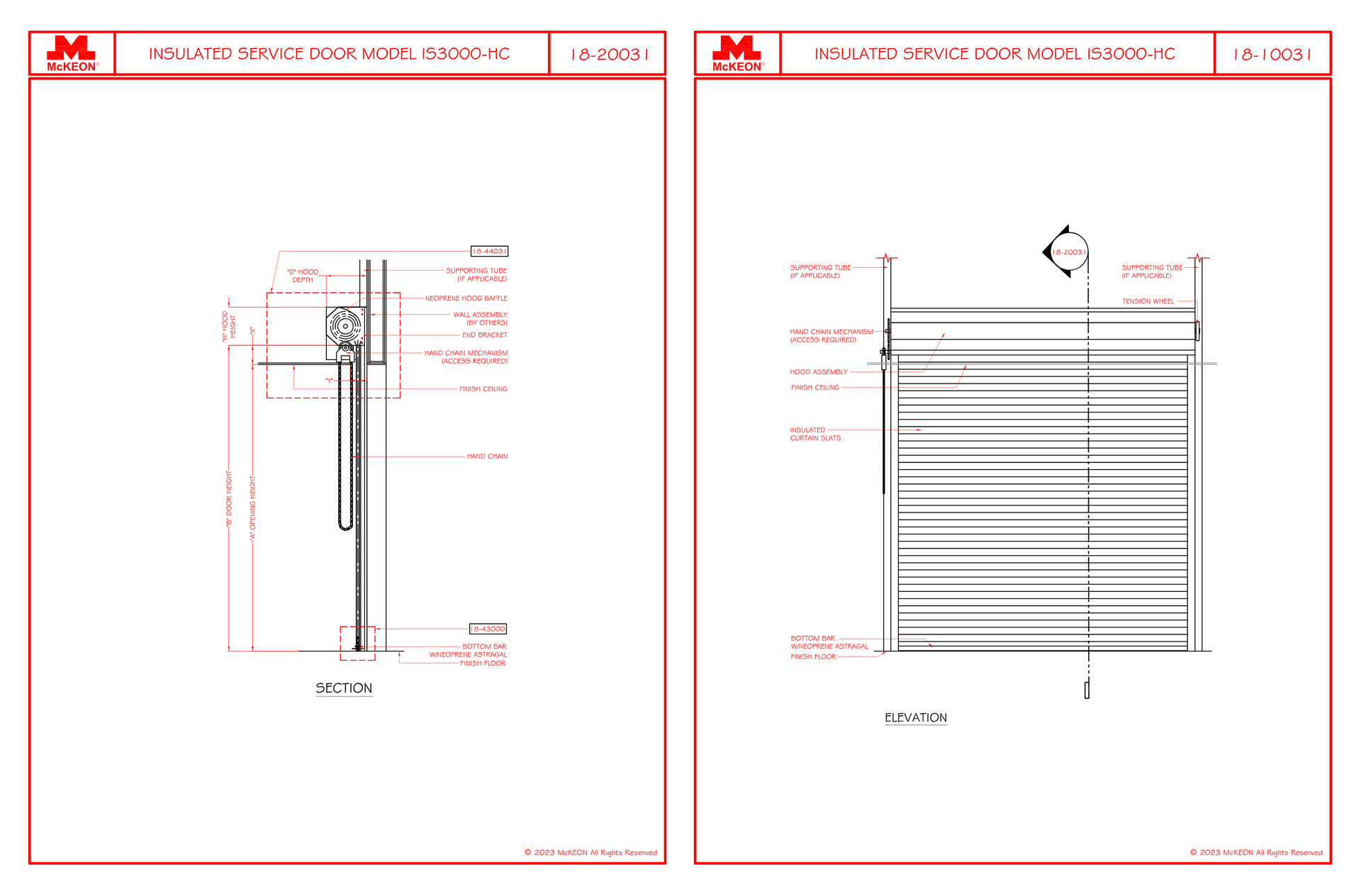

IS3000-HC Details

  • Overhead Coiling
  • Manual Operation - Hand Chain
  • No egress

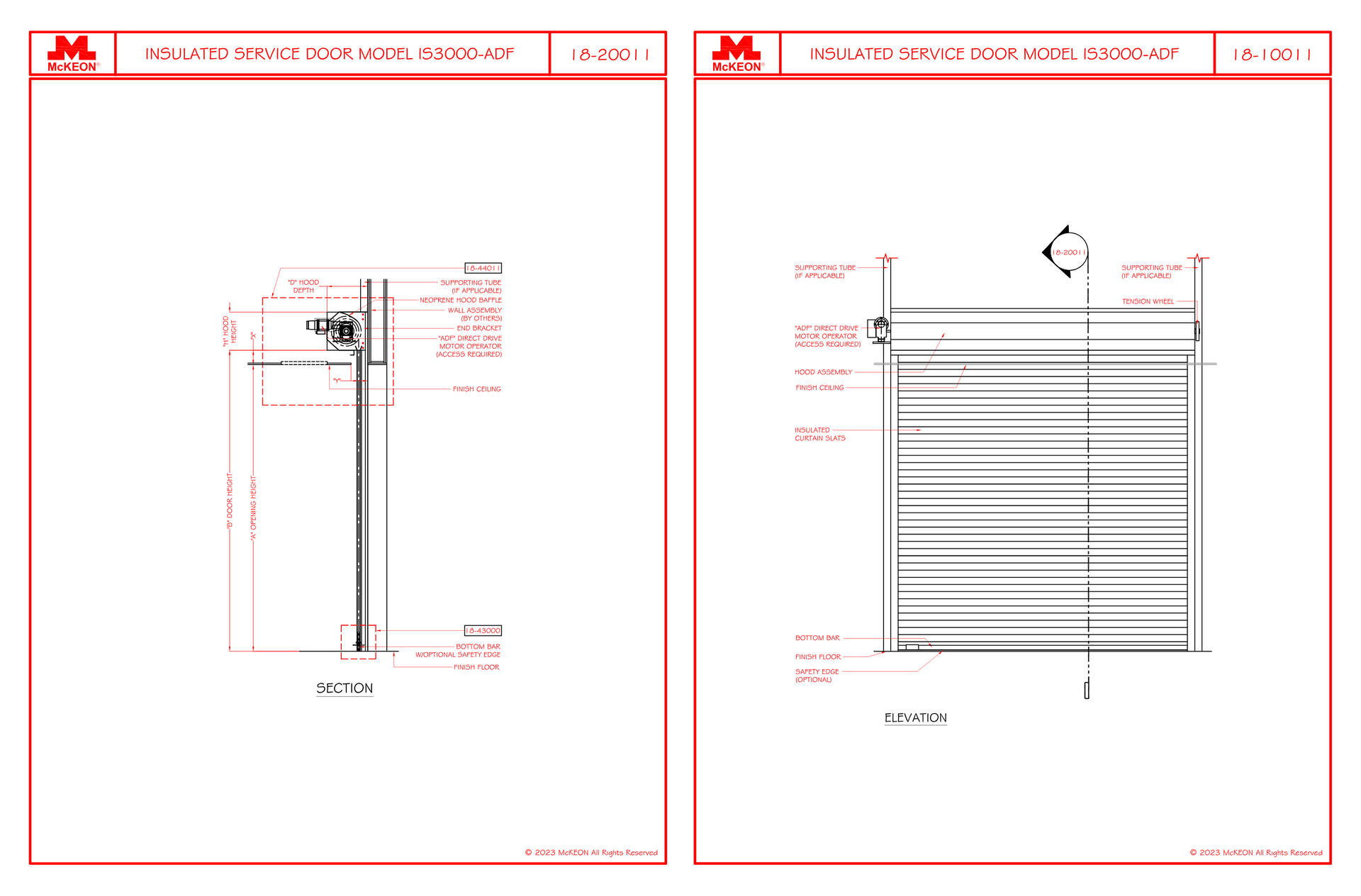

IS3000-ADF Details

  • Overhead Coiling
  • Electric Motor Operation - Direct Drive
  • No egress

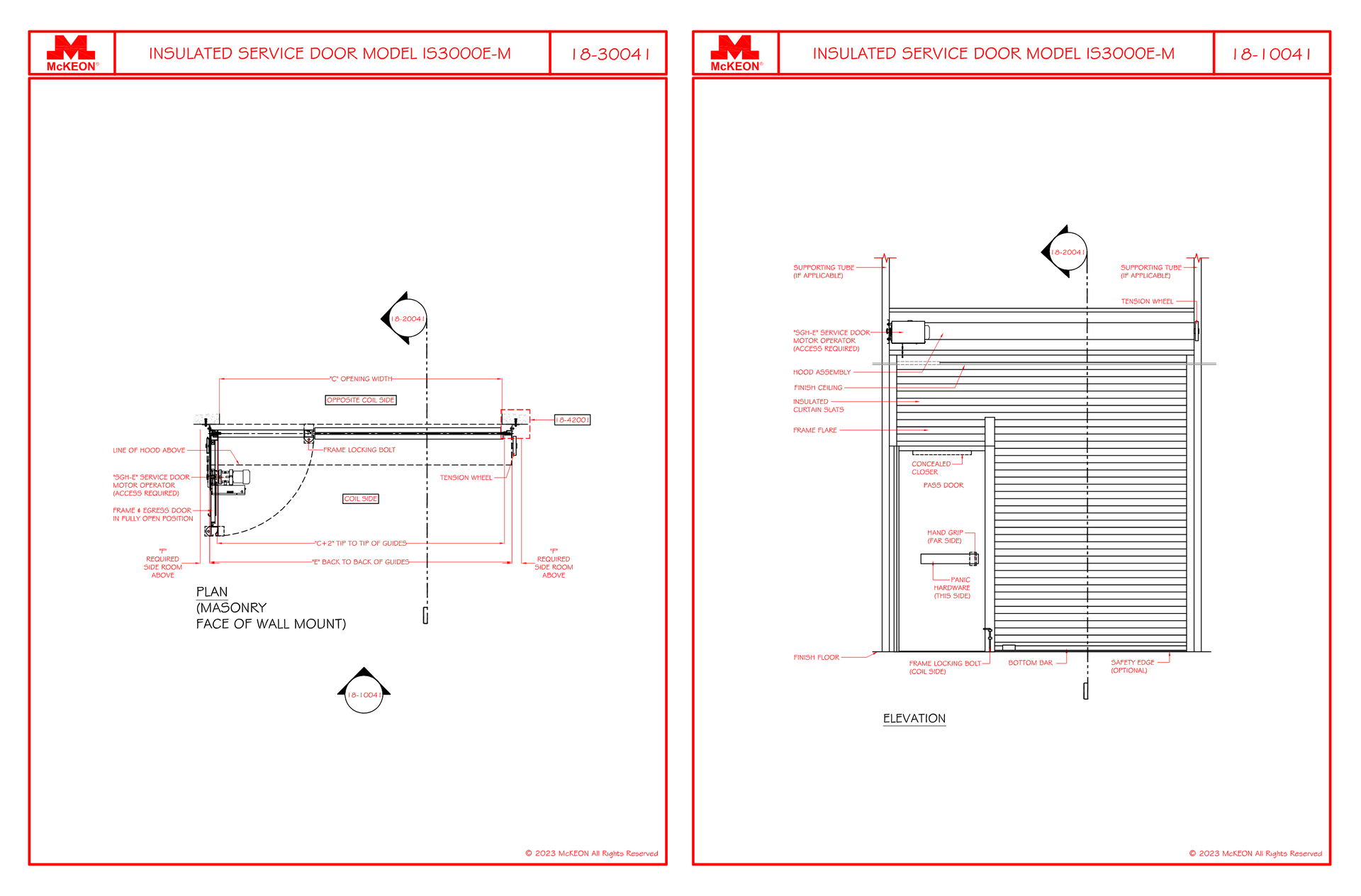

IS3000E-M Details

  • Overhead Coiling
  • Electric Motor Operation - Outboard Motor
  • (1-2) Deployable Egress Door(s)

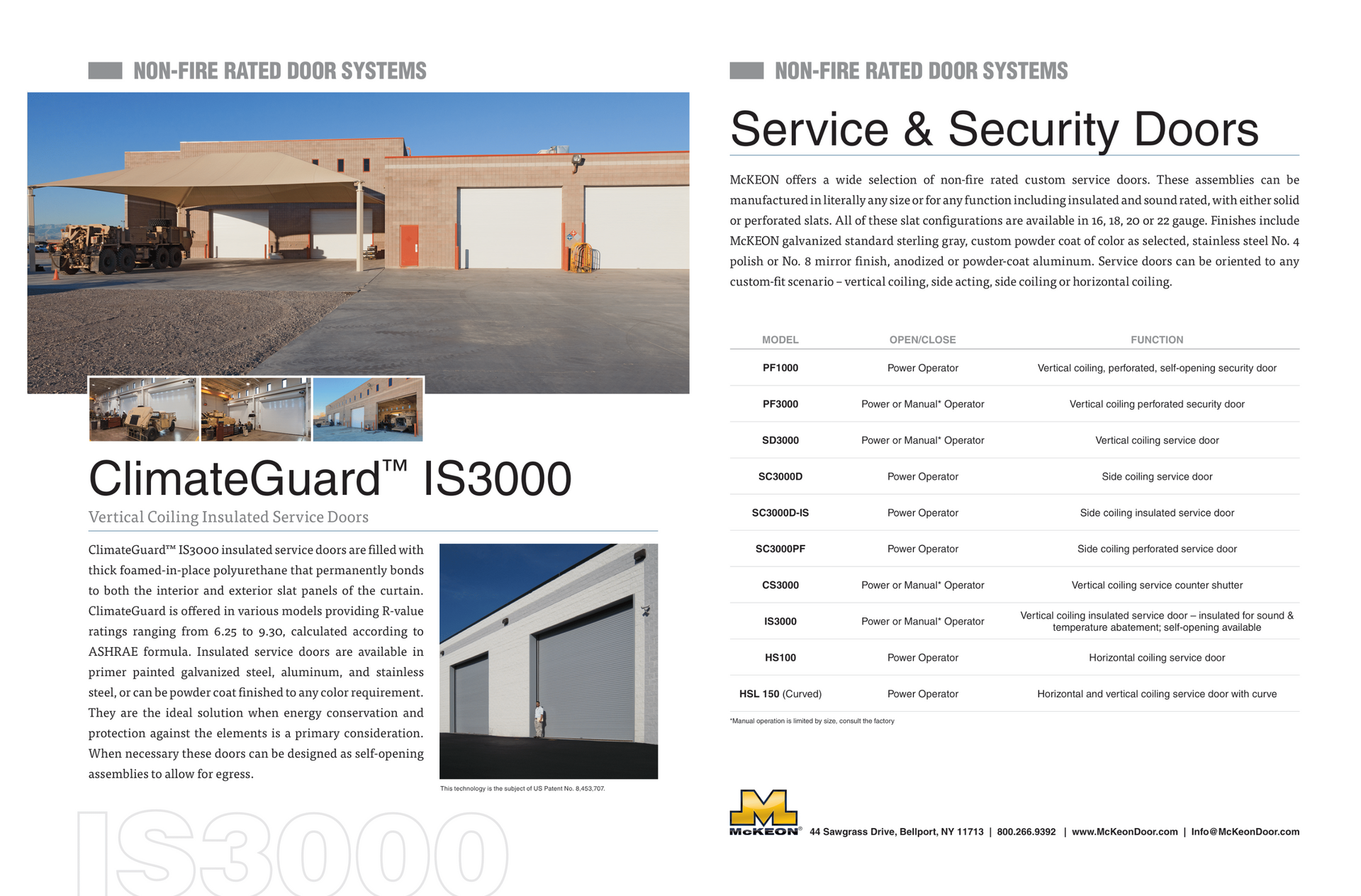

IS3000 Cut Sheet

  • Overhead Coiling
  • Electric Motor Operation - Outboard Motor
  • (1-2) Deployable Egress Door(s)

Download individual PDF sheets, CADs and more BELOW.

Download it all.

IS3000-M Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart













Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart













Download ALL .DWG Files

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.


IS3000-STC34-M-G (McKeon Sterling Grey, Acoustical Rating 34)

IS3000-STC34-M-PC (RAL Powder Coat , Acoustical Rating 34)

IS3000-STC34-M-SS (Stainless Steel No 4. Polish, Acoustical Rating 34)


IS3014-M-A (Clear Anodized Aluminum, 14 G.)


IS3020D-M-G (McKeon Sterling Grey, 20 G. Deep Slat)

IS3020D-M-PC (RAL Powder Coat, 20 G. Deep Slat)

IS3020D-M-SS (Stainless Steel No 4. Polish, 20 G. Deep Slat)


IS3020-M-G (McKeon Sterling Grey. 20 G.)

IS3020-M-PC (RAL Powder Coat Selection, 20 G.)

IS3020-M-SS (Stainless Steel No 4. Polish, 20 G.)


IS3022-M-G (McKeon Sterling Grey. 22 G.)

IS3022-M-PC (RAL Powder Coat Selection, 22 G.)

IS3022-M-SS (Stainless Steel No 4. Polish, 22 G.)



Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• IS3000 Series Product Cut Sheet

• RAL Color Chart
















Download All .PDF Files

IS3000-HC Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart






Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart






Download ALL .DWG Files

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.


IS3000-STC34-HC-G (McKeon Sterling Grey, Acoustical Rating 34)

IS3000-STC34-HC-PC (RAL Powder Coat , Acoustical Rating 34)

IS3000-STC34-HC-SS (Stainless Steel No 4. Polish, Acoustical Rating 34)


IS3022-HC-G (McKeon Sterling Grey. 22 G.)

IS3022-HC-PC (RAL Powder Coat Selection, 22 G.)

IS3022-HC-SS (Stainless Steel No 4. Polish, 22 G.)


 IS3014-HC-A (Clear Anodized Aluminum, 14 G.)


Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• IS3000 Series Product Cut Sheet

• RAL Color Chart









Download All .PDF Files

IS3000-ADF Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart



Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart



Download ALL .DWG Files

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.


IS3016-ADF-G (McKeon Sterling Grey, Direct Drive, 16 G.)

IS3016-ADF-PC (RAL Powder Coat Selection, Direct Drive, 16 G.)

IS3016-ADF-SS (Stainless Steel No 4. Polish, Direct Drive, 16 G.)


IS3018-ADF-G (McKeon Sterling Grey, Direct Drive, 18 G.)

IS3018-ADF-PC (RAL Powder Coat Selection, Direct Drive, 18 G.)

IS3018-ADF-SS (Stainless Steel No 4. Polish, Direct Drive, 18 G.)


Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• IS3000 Series Product Cut Sheet

• RAL Color Chart






Download All .PDF Files

IS3000E-M Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word documenttemplate tailored to the finishes listed above for seamless project planning.



  • Available upon request




Contact Us

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• IS3000 Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files
