Model S7000 Series

Egress-ready and space-smart. The S7000 Series side-sliding fire doors offer seamless fire protection with a slim head track and a compact pocket design—perfect for tight spaces and sleek openings.

FIRE

RATED

SMOKE

RATED

SIDE

SLIDING

EGRESS

FIRE

RATED

 90 MIN FIRE RATED UNDER UL10B

SMOKE RATED

SMOKE AND DRAFT RATED UNDER UL1784

OVERHEAD COILING

COIL BOX ABOVE OPENING

NO

EGRESS

 NOT AVAILABLE WITH EGRESS

All the specs  you need. Ready for your next project.

Download Specs

Clear, simple, complete. Download every detail you need.

 Download Details

Get straight to the details. Everything you need all in one click.

Resource Hub

Built for tight spaces.

Designed for open minds.

Freedom to design. Open without limits.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500

The details that matter.

Ratings

  • 1-3 hr UL10B
  • 1784 UL Smoke & Draft Labeled


Egress

Single or multiple fixed complying egress doors available when required

Radius

  • Negotiates 3'-0" curve with egress doors
  • 1'-6" without without egress



Available Sizes

  • Widths to 80'-0"
  • Bi-parting 160'-0"


  • Heights to 24'-0"


  • For Larger sizes and custom configurations consult the factory

Finishes

  • McKEON Sterling Grey
  • RAL Powder Coat
  • Stainless Steel

Operation

  • Electric Motor
  • Manual Options Available


  • Fail safe design - automatic self closing mechanism does not require power operation to self-close


Download our specs.

Specification Key

-G = McKeon Sterling Grey (one color option)

-PC = Powder Coat, 188 color selection from standard colors (download chart here)

-SS = Stainless Steel, No. 4 polish finish

McKeon Sterling Grey (-G)

Standard finish

RAL Powder Coat (-PC)

188 color selection

Stainless Steel (-SS)

No. 4 polish

RAL Powder Coat Chart

Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.

Download our details.

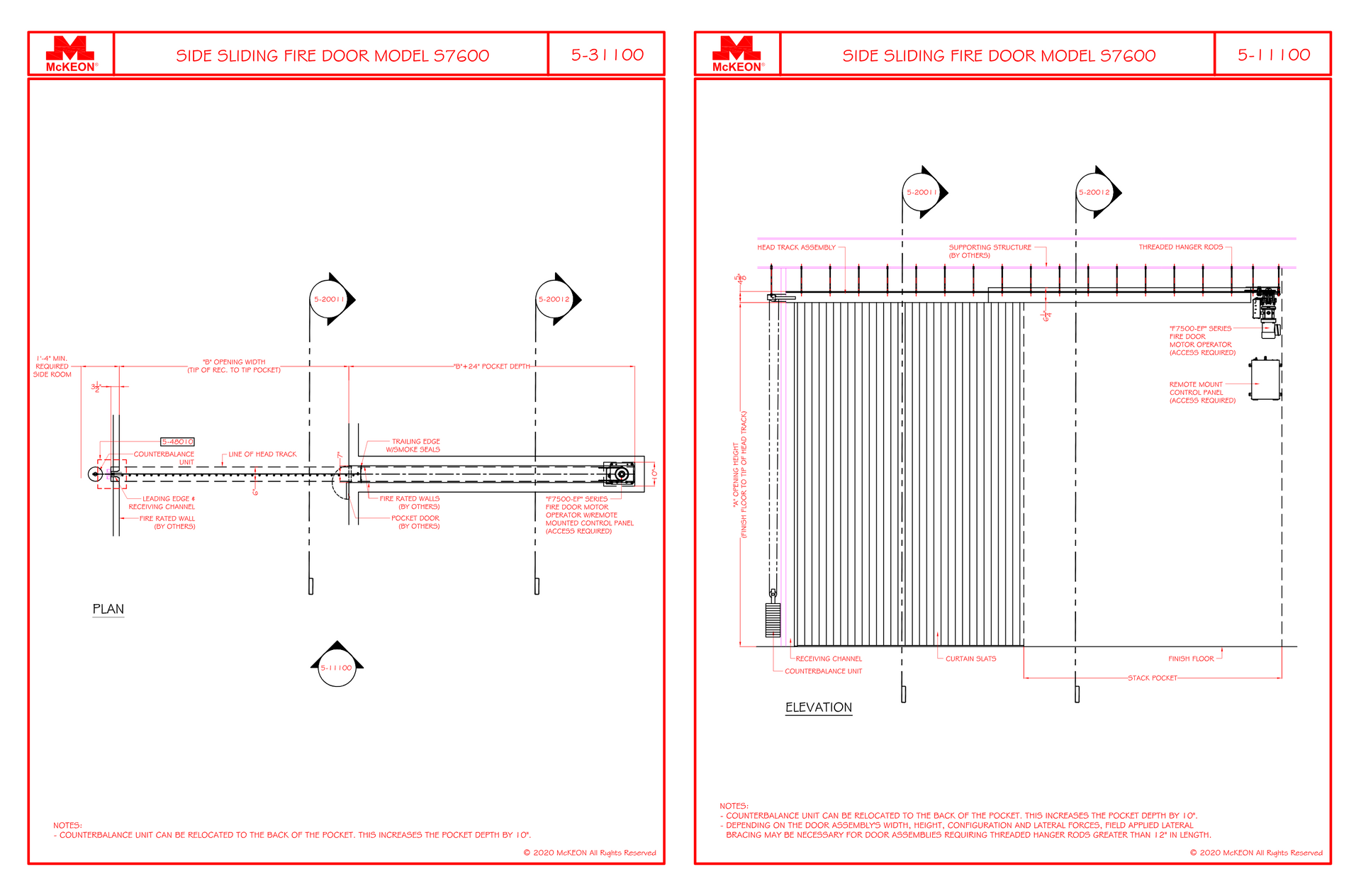

S7600 Details

  • Side Sliding
  • Electric Motor Operation
  • No egress doors

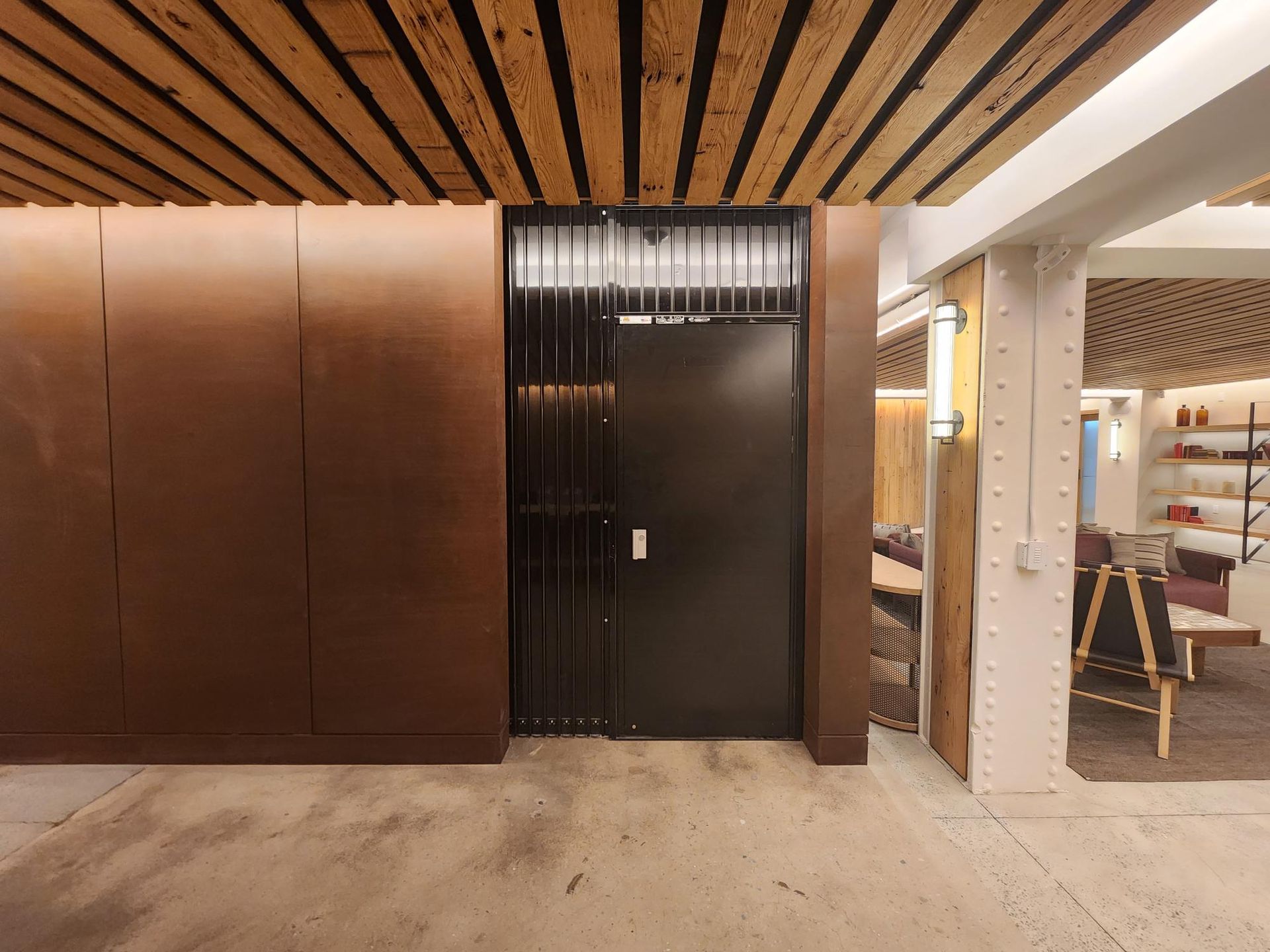

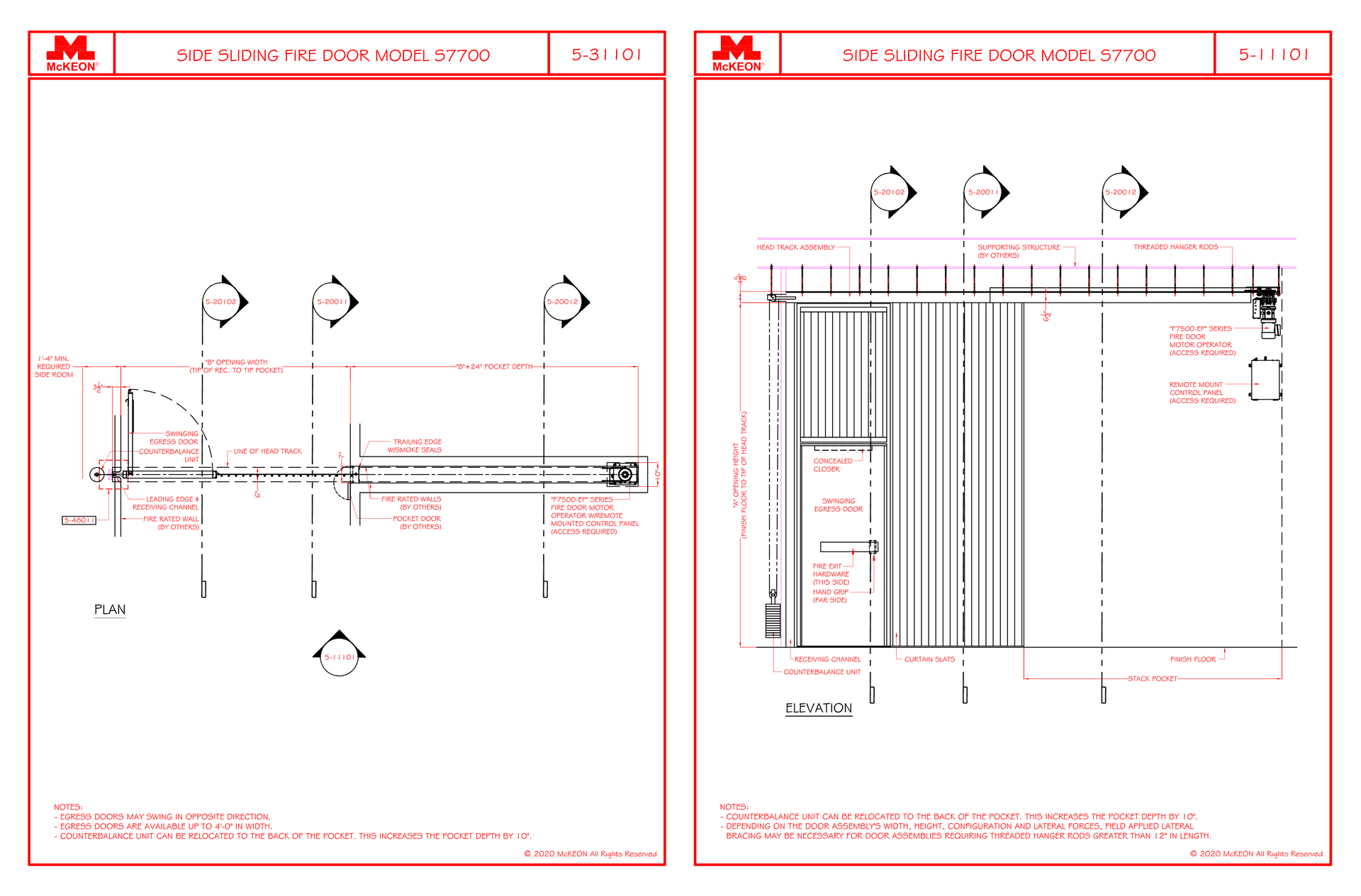

S7700 Details

  • Side Sliding
  • Electric Motor Operation
  • (1) swinging egress door

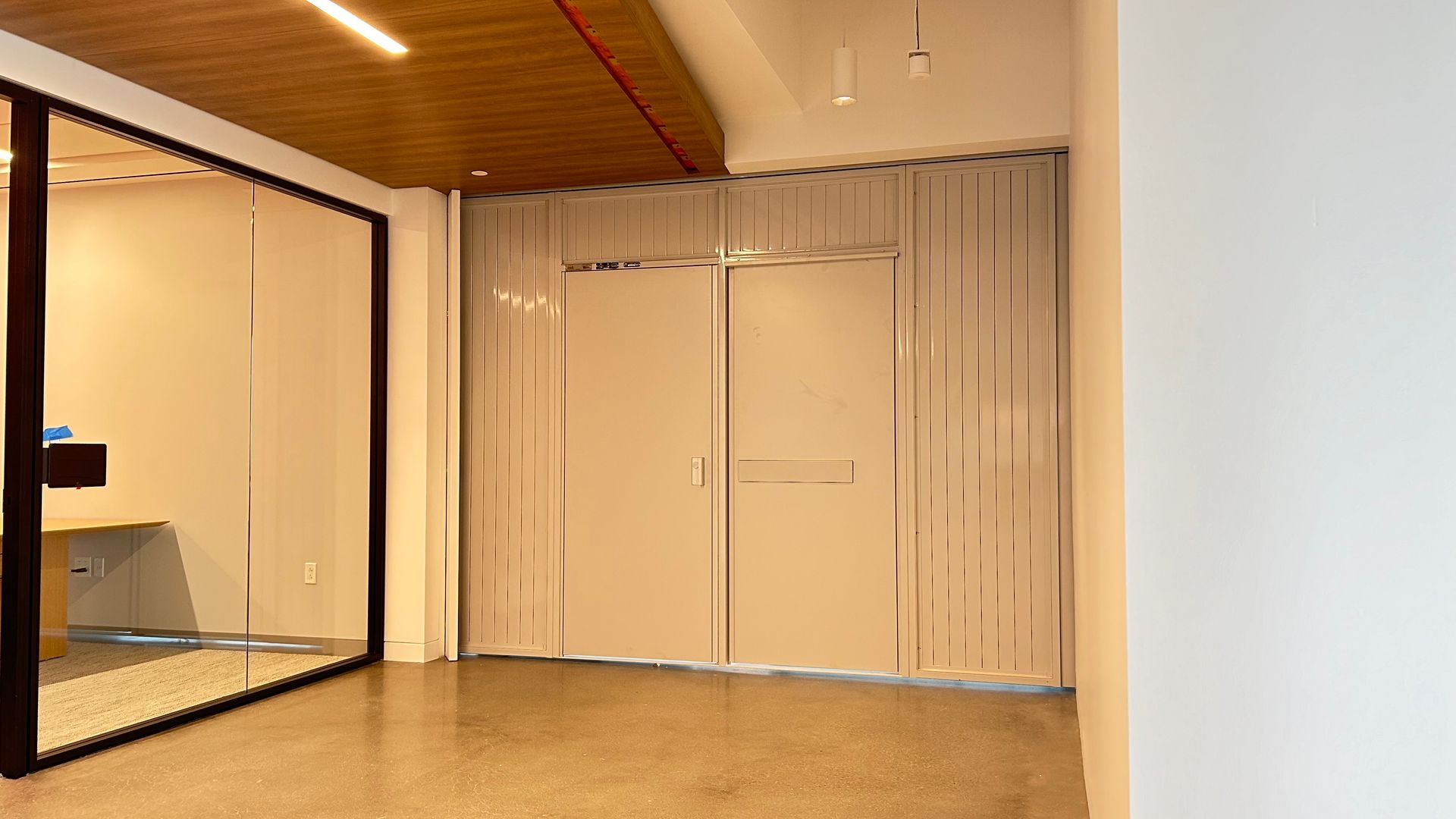

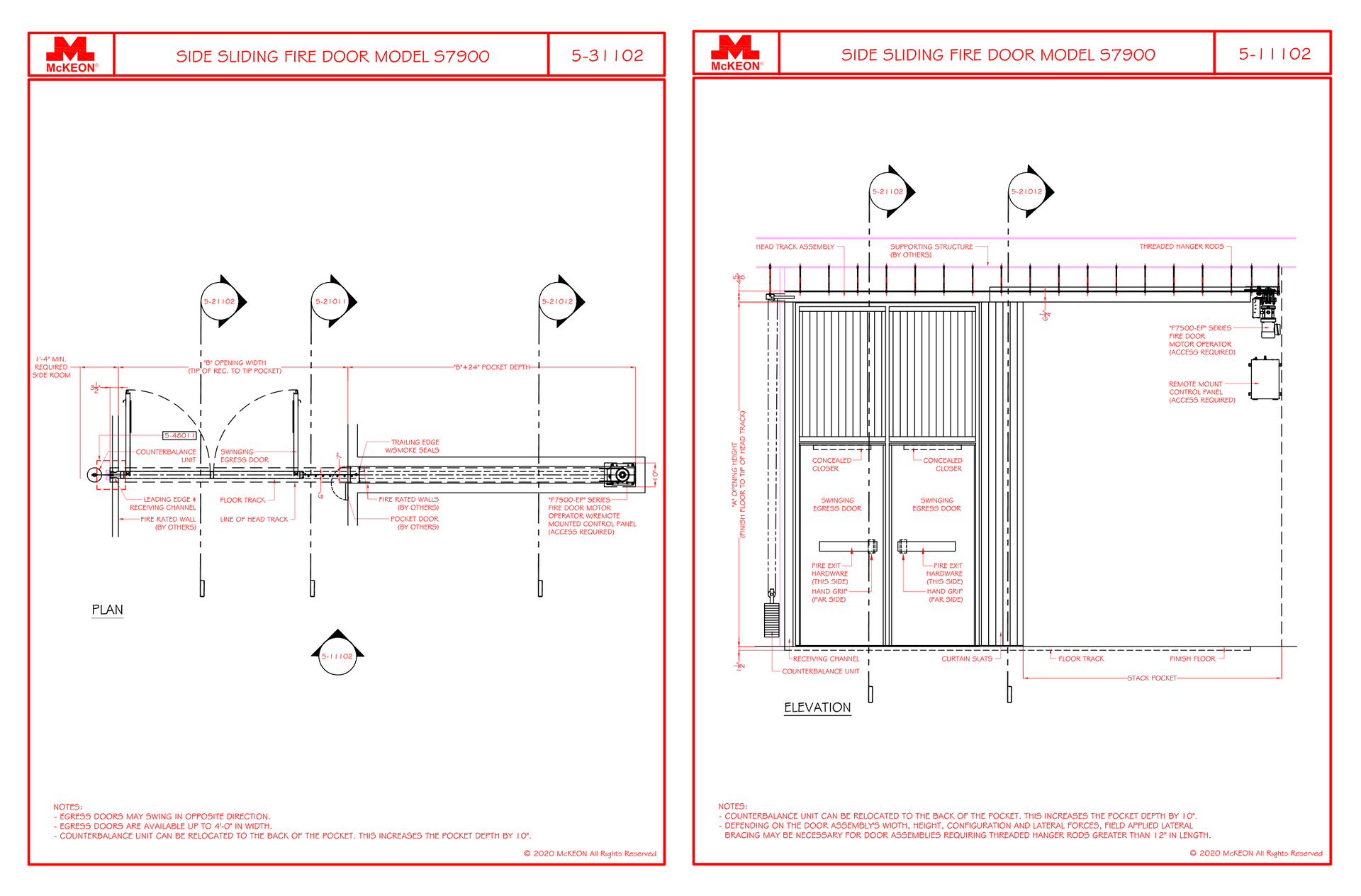

S7900 Details

  • Side Sliding
  • Electric Motor Operation
  • (2) or more swinging egress doors

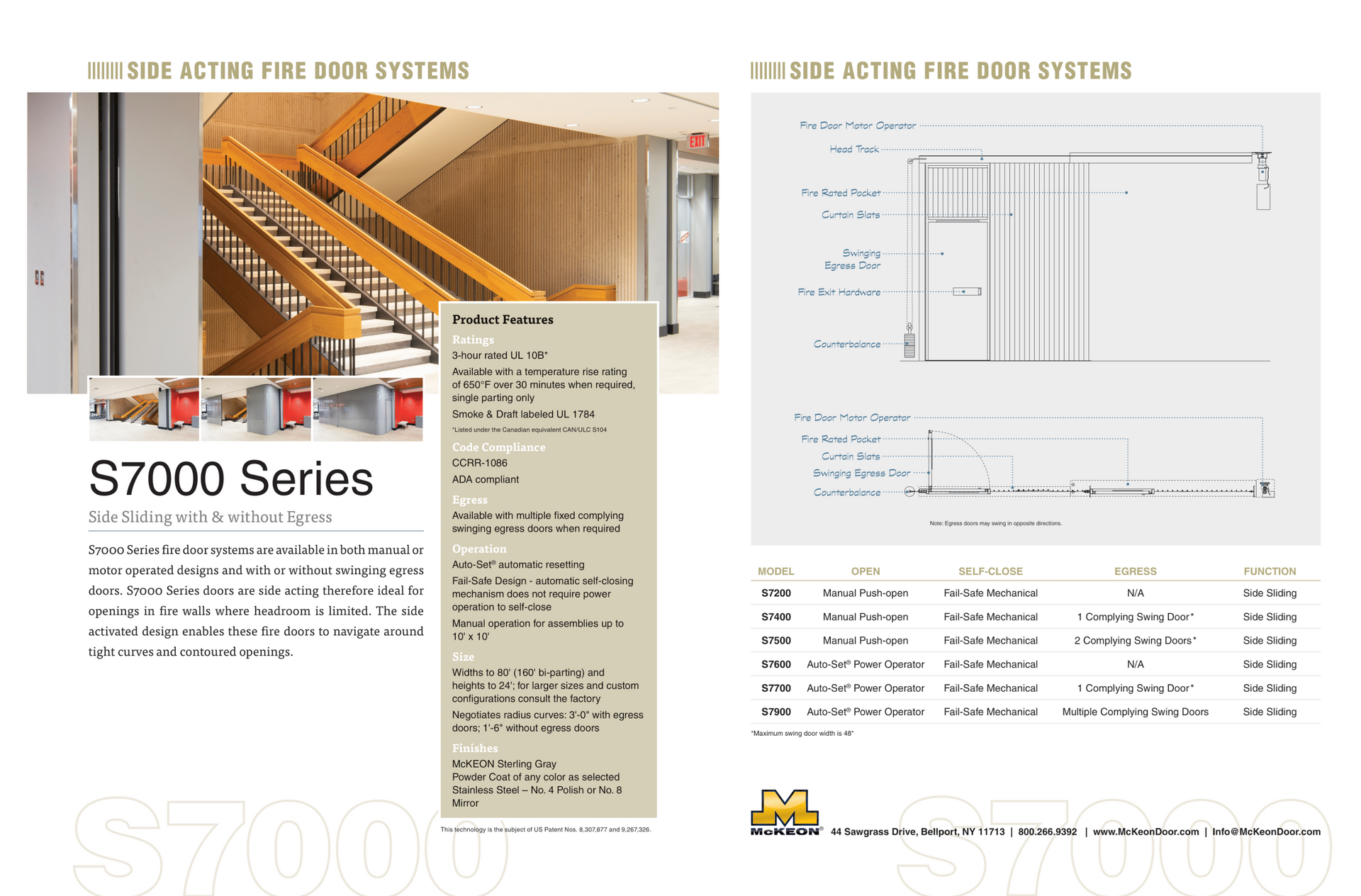

S7000 Cut Sheet

  • Side Sliding
  • Electric Motor Operation
  • 0 to Multiple Egress Doors

Download individual PDF sheets, CADs and more BELOW.

Download it all.

S7600  Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planniang.


  • S7600-G (McKeon Sterling Grey)
  • S7600-PC (RAL Powder Coat Selection)
  • S7600-SS (Stainless Steel No 4. Polish)



Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• S7000 Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.




• Listing Report S7000





Download All .PDF Files

S7700  Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planniang.


  • S7700-G (McKeon Sterling Grey)
  • S7700-PC (RAL Powder Coat Selection)
  • S7700-SS (Stainless Steel No 4. Polish)



Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• S7000 Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.




• Listing Report S7000





Download All .PDF Files

S7900  Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download All .PDF Files

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.


  • Elevation Detail
  • Section Detail
  • Plan Detail
  • Jamb Details
  • Bottom Bar Detail
  • Coil Box Sizing Chart

Download ALL .DWG Files

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planniang.


  • S7900-G (McKeon Sterling Grey)
  • S7900-PC (RAL Powder Coat Selection)
  • S7900-SS (Stainless Steel No 4. Polish)



Download All .DOCX Files

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.




• S7000 Series Product Cut Sheet

• RAL Color Chart




Download All .PDF Files

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.




• Listing Report S7000





Download All .PDF Files

Already know the

S7000 Series product you're looking for?

Manual Options:

Model S7200 - Side Acting with No Egress

Model S7400 - Side Acting with (2) Egress Door

Model S7500 - Side Acting with (2) or more Egress Doors

Motorized Options:

Model S7600 - Side Acting with No Egress

Model S7700 - Side Acting with (2) Egress Door

Model S7900 - Side Acting with (2) or more Egress Doors
